• Check that the side wall units
between which to install the hood are
sufficiently heavy for installing the
hood.
Otherwise mount the brackets to use
as additional supports:
a. a.
a. a.

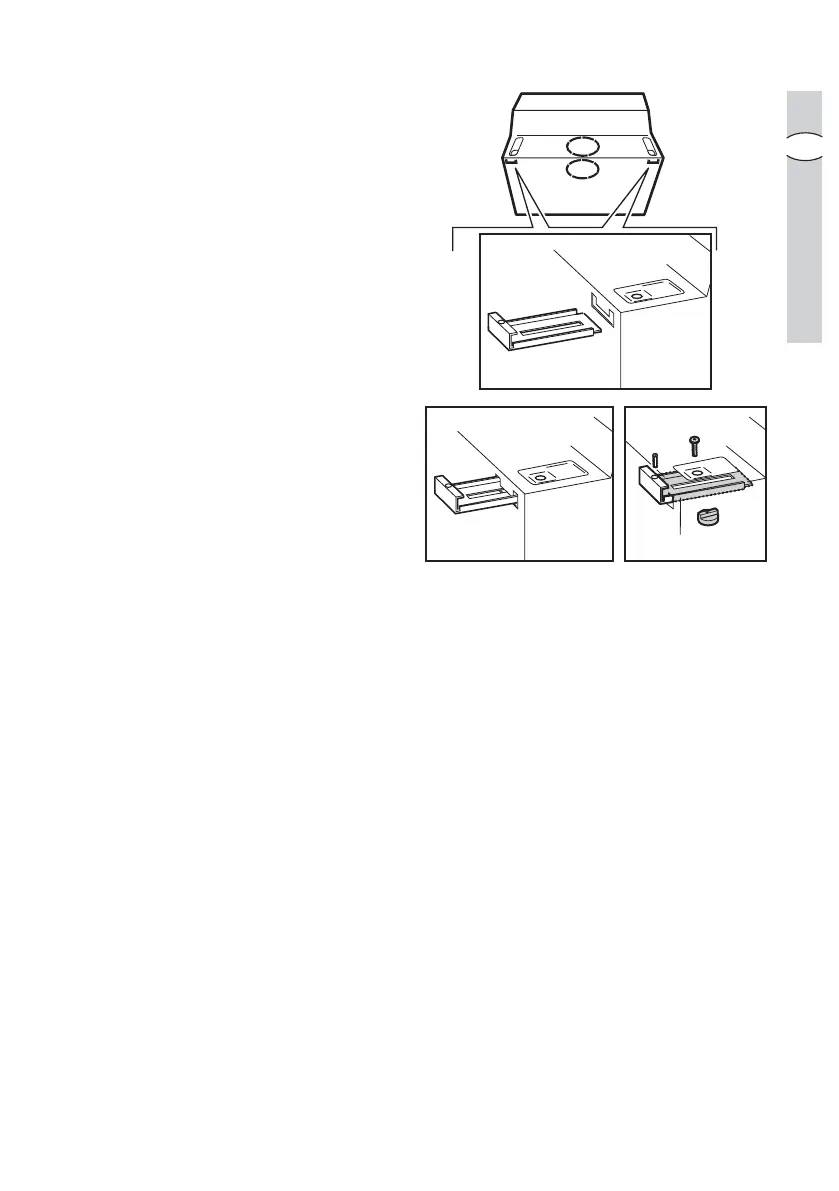

a. Insert each bracket from the rear
inside the hood through the opposite
slots
..
..
.
b. b.
b. b.
b. Fix the brackets with the screws
and threaded bushes.
Screw the headless screws halfway.
They will serve to adjust the position
of the hood at the moment of
installation.
Note: Note:
Note: Note:
Note: the position of the brackets
can be adjusted during installation,
suitably loosening and retightening
the screws that fix them to the hood.
Rear view
