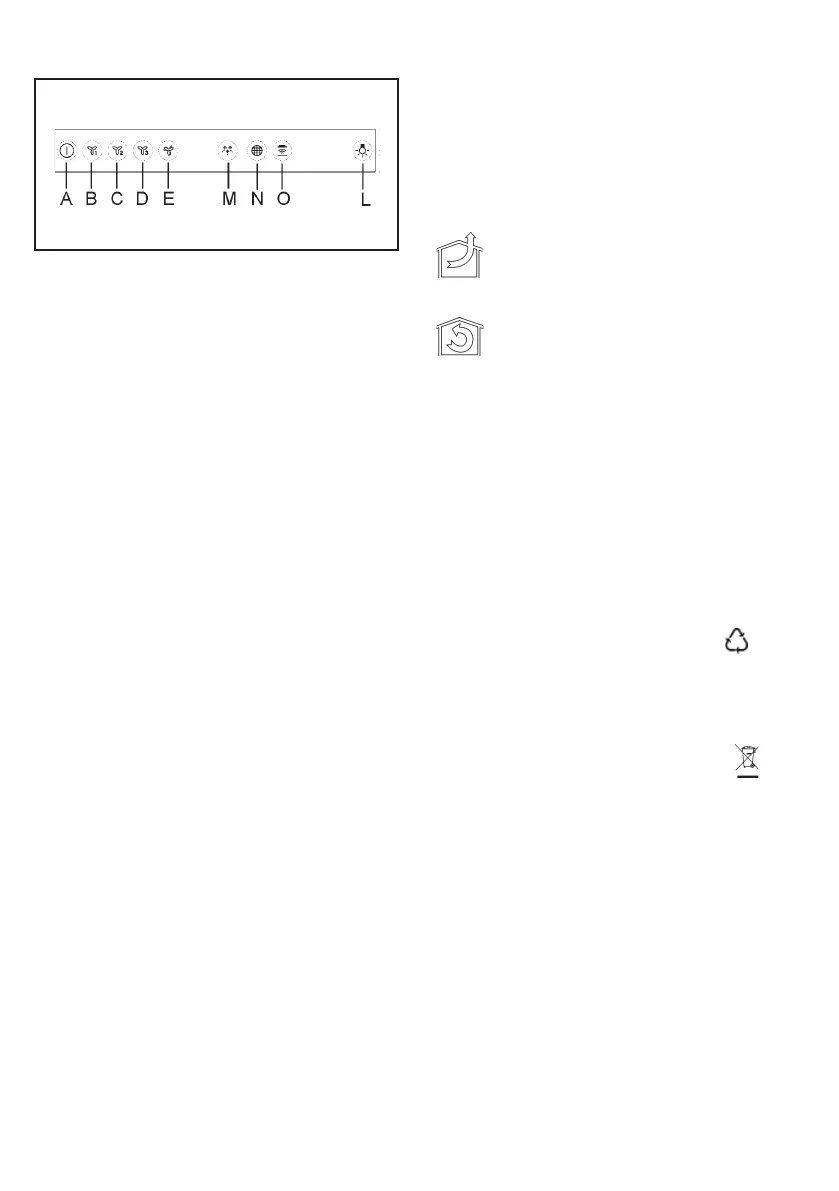

4. CONTROLS
A: Motor ON/OFF
B: fi rst speed motor
C: second speed motor
D: third speed motor
E: Intensive speed. This speed is timed to
runs for 8 minutes. At the end of this time, the
hood turns back automatically to the speed
that was set before using this function. To
switch off the speed, push key “Motor On/Off”
(A).
M: Breeze function. This function can work
for a maximum time of 1 hour. At the end of
the time, the motor switch off. To deactivate
breeze function, touch key “Motor On/Off” (A)
or another speed key.
N: Filters alarm indicator/Reset. When the
indicator is on, the grease fi lters must be
cleaned (40 hours of operation). When the
indicator fl ashing, the charcoal fi lters must
be replaced (160 hours of operation) and the
grease fi lters must be cleaned. Obviously, if
the hood is not a fi ltering model and does not
have a charcoal fi lters, clean only the grease
fi lters. The fi lter alarm can be seen for about
30 seconds, when the hood is in Stand By. To
RESET the hour counter, press for 3 seconds
the indicator, when the hood is in off state.
O: H2H indicator. The indicator is on when the
hood is working controlled by the hob. In case
of no connection between hob&hood, the
indicator is not backlighted.
L: Light ON/OFF
5. INSTALLATION
METHODS
FILTERING OR DUCTING VERSION ?
The hood may be in fi ltering or in ducting
version. Decide from the outset which type is
to be installed.
For better effi ciency, we recommend installing
the hood in the ducting version (if possible).
Ducting version
The hood purifi es the air and evacuates it to
the outside through an exhaust duct.
Filtering version
The hood purifi es the air and recycles the
clean air back into the room.
6. LIGHTING
If the light spot is damaged, it must be re-
placed only by the manufacturer, its service
agent or similarly qualifi ed persons in order to
avoid a hazard.
7. ENVIRONMENTAL
CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the environment and
human health by recycling waste of electrical
and electronic appliances. Do not dispose of
appliances marked with the symbol
with the household waste.
Return the product to your local recycling
facility or contact your municipal offi ce.

Electrolux LFT766X Specifications

General

Noise level	68 dB
Pressure (Pa)	434
Intensive speed	Yes
Number of speeds	3
Type of extraction	Ducted/Recirculating
Noise level (low speed)	53 dB
Maximum extraction power	615 m³/h
Minimum distance from gas hob	650 mm
Noise level (intensive speed)	72 dB
Fluid dynamic efficiency class	A
Grease filtering efficiency class	D
Minimum distance from electric hob	500 mm
Motor power	250 W
AC input voltage	220-240 V
AC input frequency	50 Hz
Annual energy consumption	57 kWh
Bulb type	LED
Illuminance	244 lx
Number of bulbs	2 bulb(s)
Lighting position	Front
Number of filters	2 pc(s)
Grease filter type	Aluminum
Filter cleaning indicator	-
Type	Wall-mounted
Control type	Touch
Product color	Stainless steel
Exhaust location	Top
Exhaust connection diameter	150 mm

Weight and Dimensions

Depth	454 mm
Width	600 mm
Height (max)	1180 mm
Height (min)	678 mm
