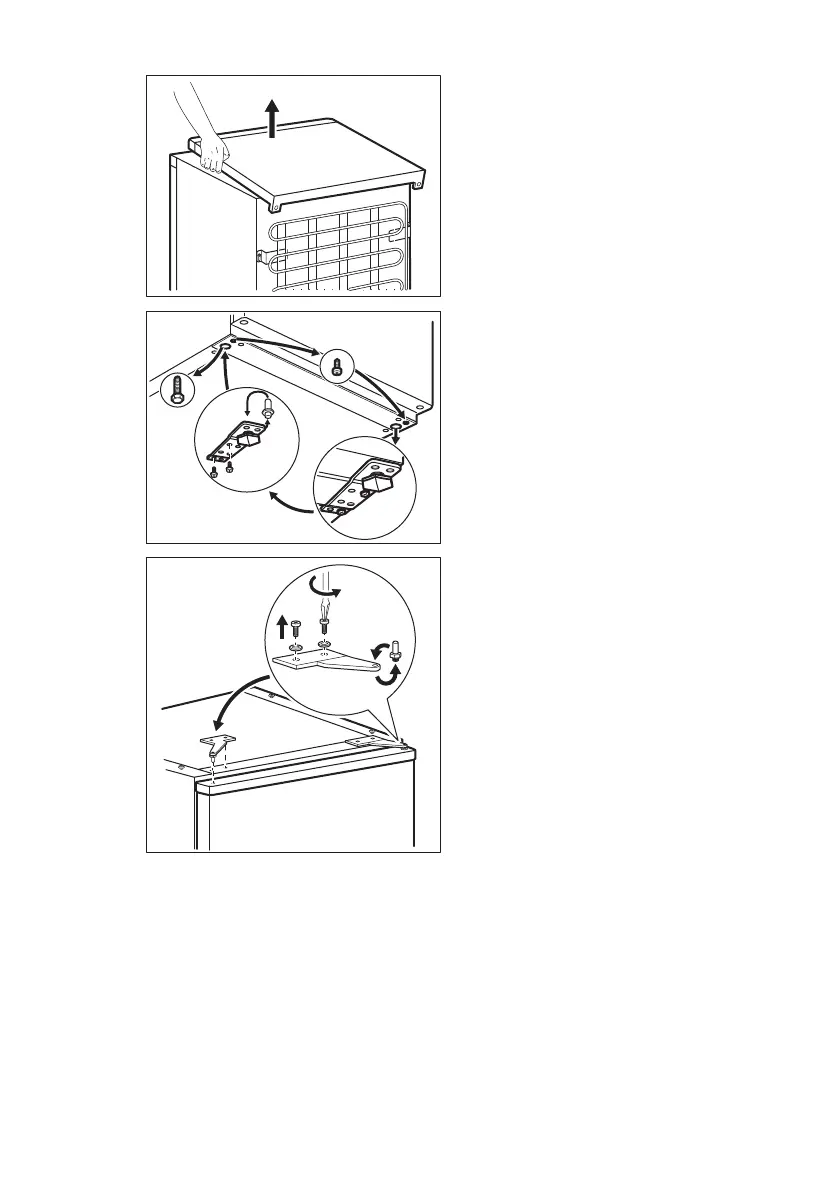

• Push back the top and lift it.
• Unscrew the left foot.
• Unscrew the screws of the door bottom
hinge. Remove the hinge. Put over the
pin in the direction of the arrow.
• Unscrew and install the screw on the
opposite side.
• Install the hinge on the opposite side.
• Screw the right foot.
3
1
2
• Unscrew the screws of the door top
hinge.
• Remove the hinge. Put over the pin in
the direction of the arrow. Install the
hinge on the opposite side.
ENGLISH 69
