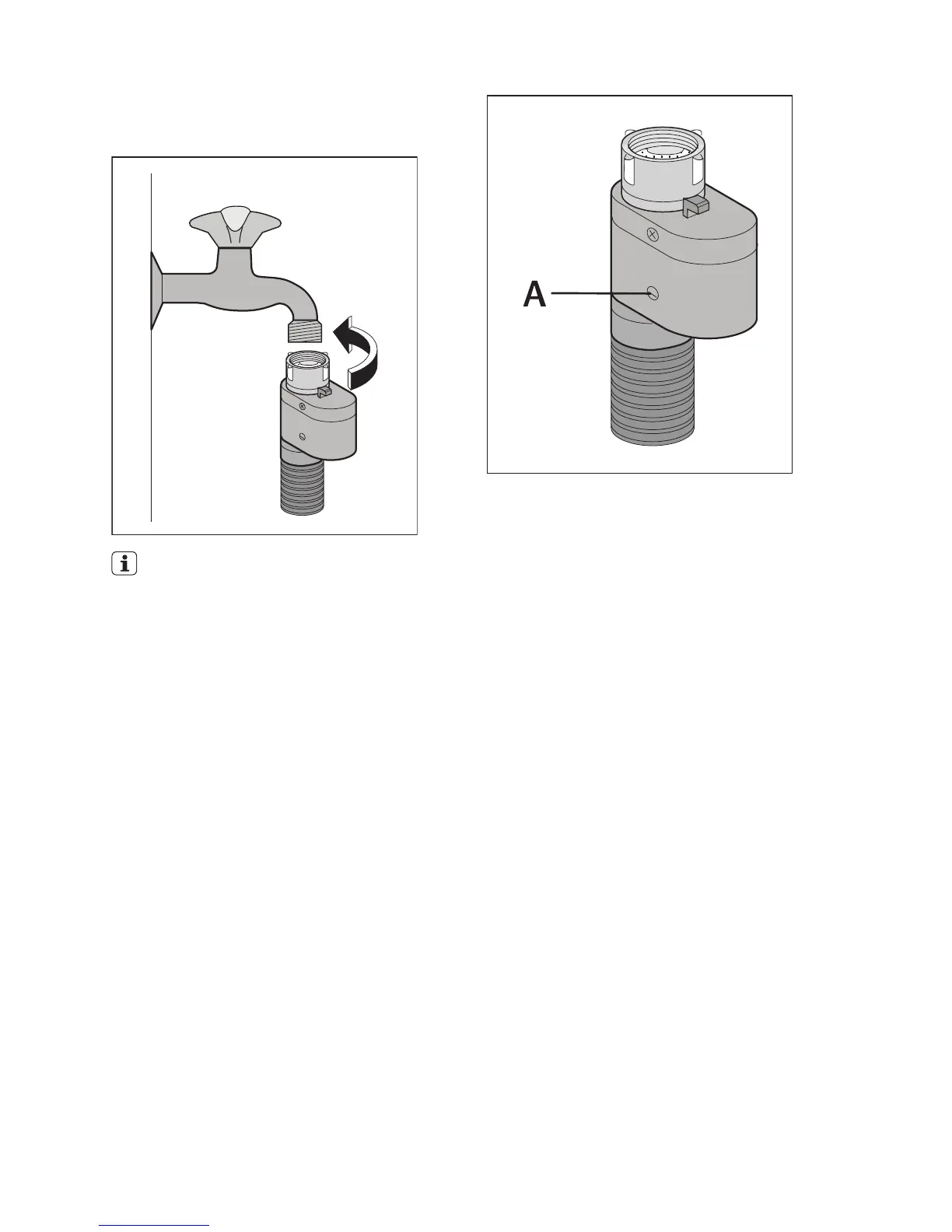

4. Connect the hose to a tap with a 3/4”
thread. Always use the hose supplied
with the appliance.
The inlet hose must not be lengthened.
If it is too short and you do not wish to
move the tap, you will have to purchase
a new, longer hose specially designed
for this type of use.
Installation should comply with local wa-
ter authority and building regulations re-
quirements. Check the minimum water
pressure required for safe operation of
the appliance in the chapter "Technical
Data".
Water-stop device
The inlet hose is provided with a water stop
device, which protects against damage
caused by water leaks in the hose which
could develop due to natural ageing of the
hose. This fault is shown by a red sector in
the window «A» . Should this occur, turn the
water tap off and refer to your Service Centre
to replace the hose.
Water drainage
Important!
• The height of drain hose do not have to
exceed 100 cm.
• The drain hose may be extended to a max-
imum of 4 metres. An additional drain hose
and joining piece is available from your lo-
cal Service Centre.
• The drain hose must not be kinked and
must be fastened to prevent it falls down.
The end of the drain hose can be positioned
in three ways:
1. Directly into a drain pipe.
Attach the hook to drain hose and hang
it in the drain pipe. Make sure that the
drain hose doesn't fall down.The end of
the drain hose must always be ventilated,
i.e. the inside diameter of the drain pipe
must be larger than the outside diameter
of the drain hose.
electrolux 23
