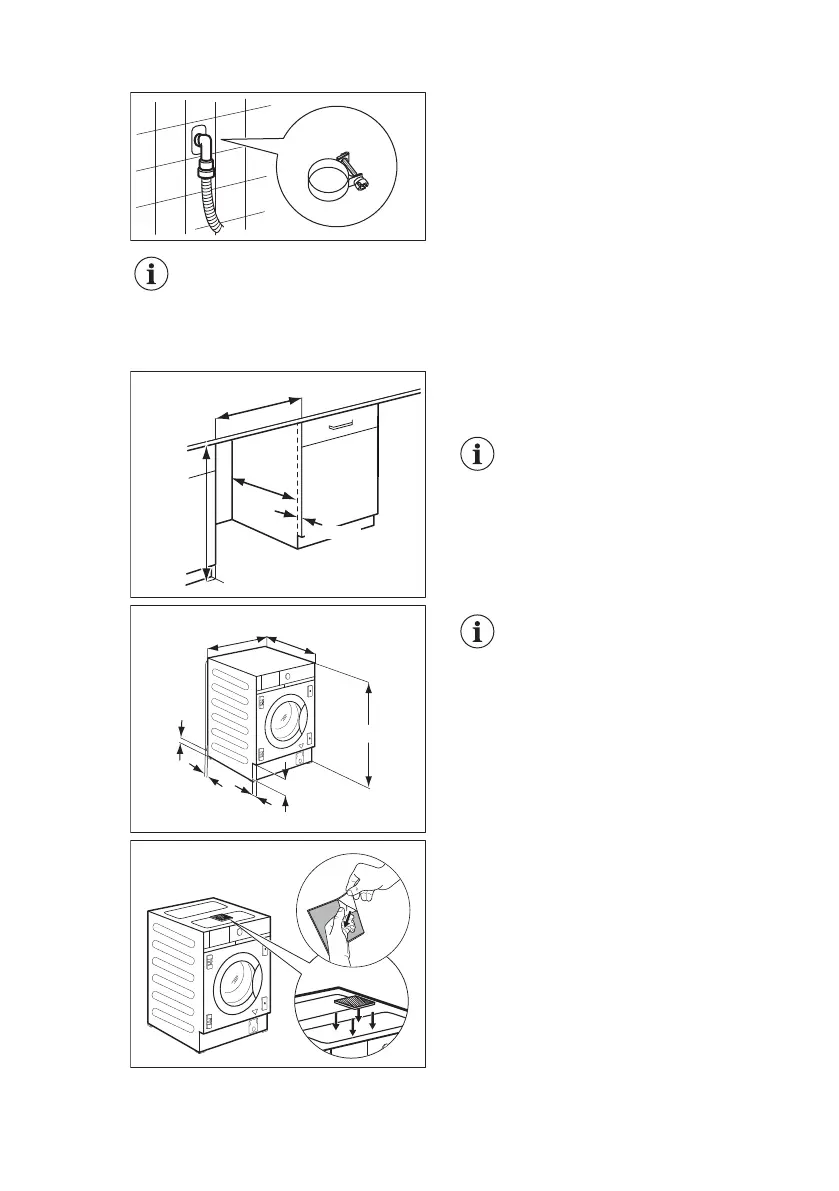

To a wall-pipe
Directly to a built-in drain pipe in the room
wall and tighten it with the supplied cable tie
L.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
3.6 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.
This appliance has been designed to be built
into the kitchen furniture. The recess should
have the dimensions shown in this picture.
For recess with a height
different than 820 mm, it is
possible to buy the appropriate
kit on the website.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm
If hoses run behind the
appliance, make sure that
nothing closes the small
recess indicated with the
measures 50 x 50 mm.
The appliance is also equipped with an
adhesive sponge pad H that you can find
inside the drum.
Attach it on the top of the appliance where
indicated in the drawing.
When levelling the appliance under the
furniture, DO NOT squeeze the sponge pad.
ENGLISH 13
