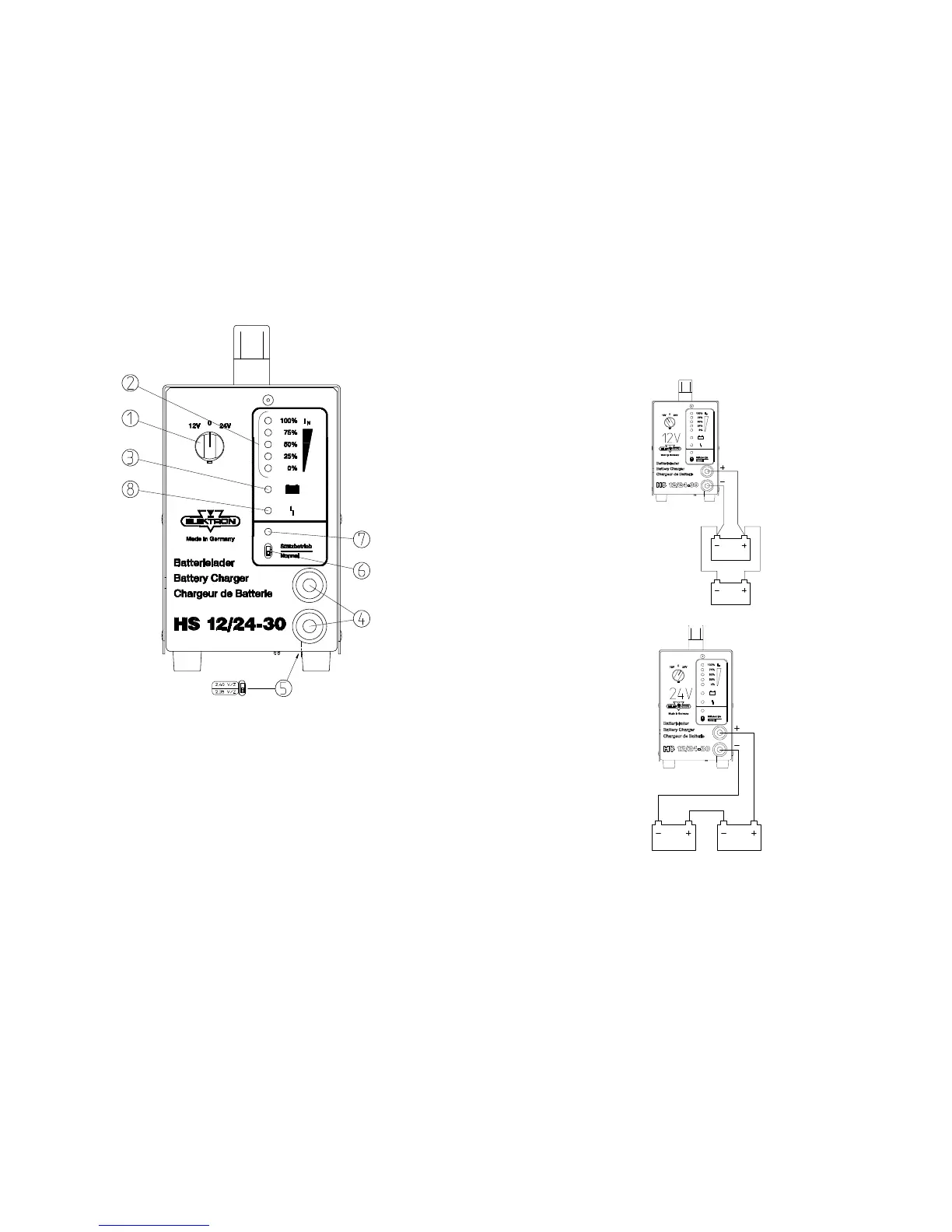

(1) Voltage selector switch
(4) Charging cable, red clip (+),
(0 = OFF)
black clip (-)
(2) Charging current indicator
(5) Battery type changeover switch
the charging current flowing is
(at bottom of the charger)
indicated (I
N
= nominal current)
(6) Backup mode normal duty /
(3) Floating charge, illuminates green
changeover switch
when battery is charged
(7) Indication backup mode
(8) Fault indicator
LED = light-emitting diode
- 1 -
- 6 -
Wiring examples for simultaneous charging of several batteries
