Page 10 of 24 M6493 Issue 10.3
7. PRODUCT OPERATION.

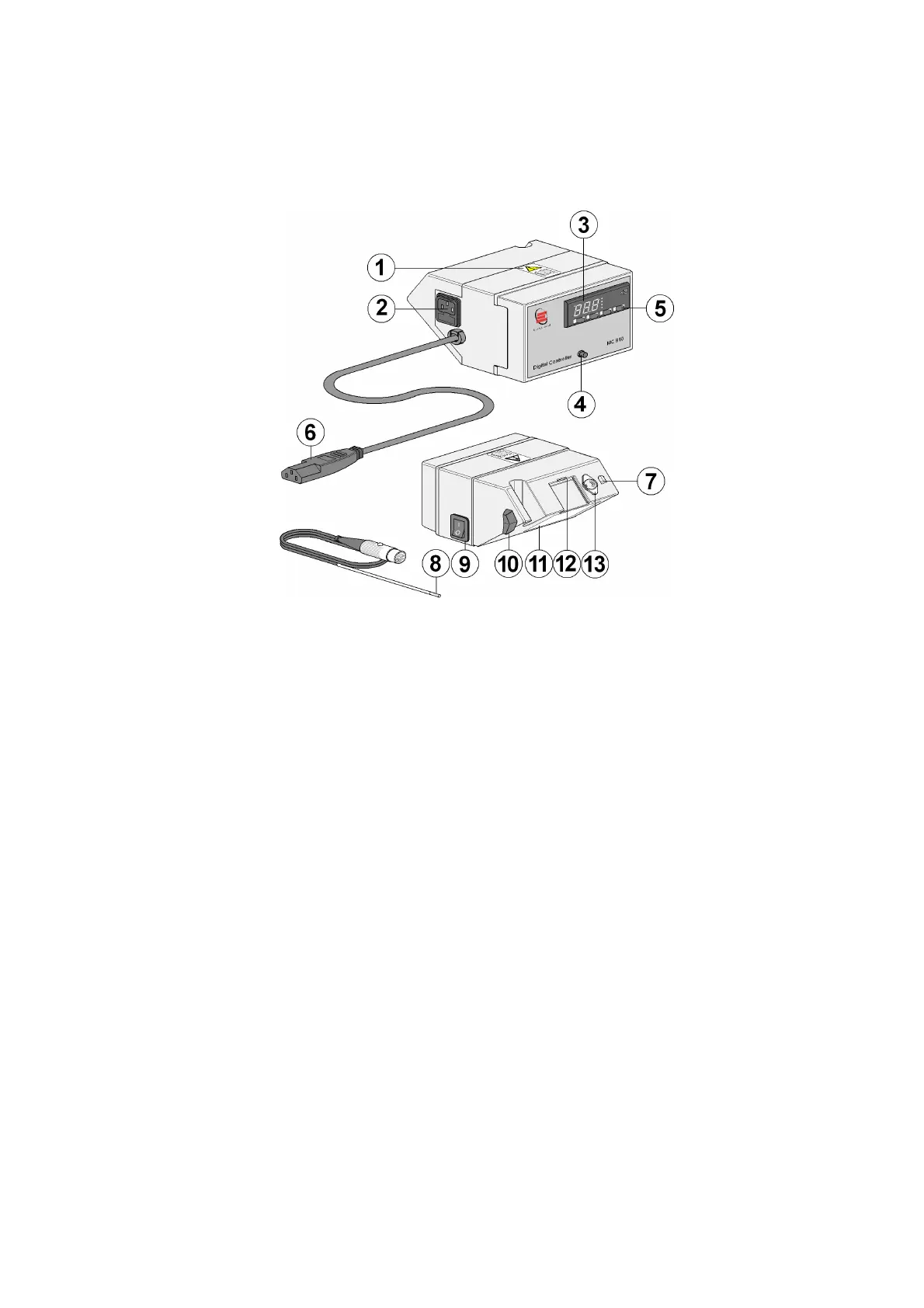

7.1. The MC810B controller has been designed for easy operation. The illustrations
below show detailed layouts of this control unit.
Instruction book label (refer to this book).
Mains input IEC socket with fuses.
3 digit LED display
Orange Neon power on indication lamp.
Exit / Standby button
Mains Output IEC plug.
Earth protective conduct terminal.
Temperature probe
On / Off, I/O power switch.
Retort rod clamp
Data plate label
Wall bracket clamp.
5 Pin DIN socket for temperature probe.
Check the data plate label and ensure your mains electrical supply voltage is
compatible with this product.
