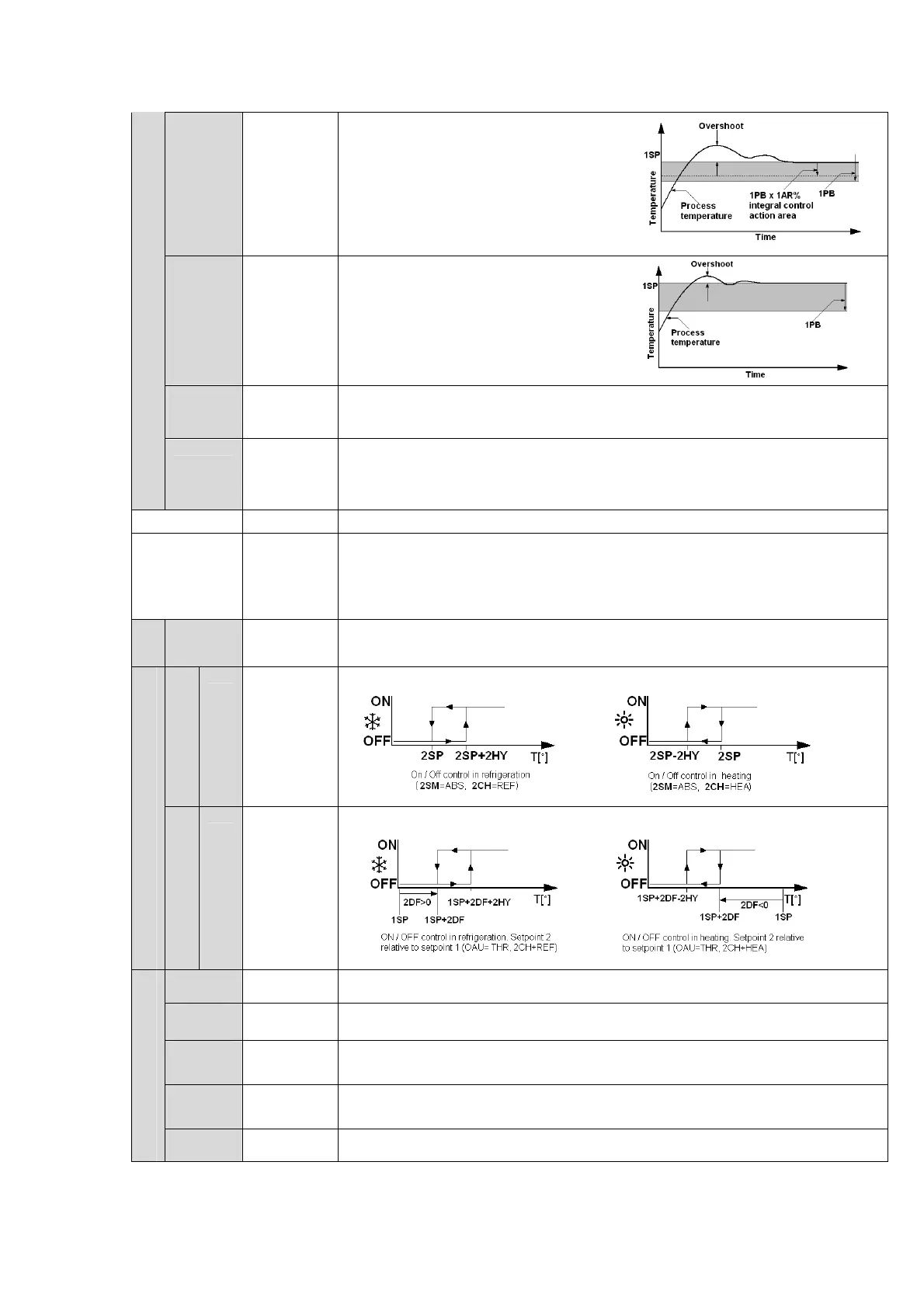

1IT
0..999s
Integral action time.
The steady-state error is cancelled by inserting an
integral action. The integral action time, determines
the speed with which the steady-state temperature
is achieved, but a high speed (1IT low) may be the
cause of the overshoot and instability in the
response. With 1IT=0 the integral control is
disabled
1DT
0…999s
Derivative action time
Response overshoot may be reduced by inserting
a derivative Action. A high derivative action (1DT
high) makes the system very sensitive to small
temperature variations and causes instability. With
1DT=0 the derivative control is disabled.
1AR
0..100%
Reset of integral action time referred to
1BP
Decreasing the paramater 1AR reduces the integral ontrol action zone, and consequently the
overshoot (see figure on paragraph 1IT).
1CT
1…255s
Cycle time.
It’s the period in which the output ON time changes. The quicker the system to be controlled
reacts to temperature variations, the smaller the cycle time must be, in order to obtain higher
temperature stability and less sensativity to load variations.
1PF ON/OFF
Output state in case of probe failure.
*OAU NON;
THR;
AL0;
AL1
AUX output operation.
NON; output disabled (always off).(the next perameter will be ATM).
THR: output programmed for second thermostat control (the next parameter will be 2SM).
AL0: contacts open when an alarm condition occurs (the next perameter will be ATM).
AL1: contacts make when an alarm condition occurs (the next parameter will be ATM).
2SM
ABS;
REL
Setpoint 2 mode.
Channel 2 setpoint may be absoulte (2SM=ABS), o a differential relative to setpoint 1
(2SM=REL).
*OAU=REL
2SM=ABS
2SP
SPL….SPH
Auxiliary output switchover temperature (the next prameter will be 2CH).
2SM=REL
2DF
-19.9+19.9°
Temperature differential relative to 1SP. The auxiliary output setpoint is equal to 1SP+2DF
*OAU=THR
2CH
REF; HEA
Refrigerating control (REF) of heating control mode (HEA) for the auxiliary output.
2HY
0…19.9°
Defferential of thermostat 2. With 2HY=0 the auxiliary output always remains off.
2T0
0…30min
Minimum off time.
After output 2 has been turned off, it remains inactive for 2T0 minutes reguardless of the
temperature value measured.
2T1
0…30min
Minimum on time.
After output 2 has been furned on, it remains active for 2T1 minutes reguardless of the
temperature value measured.
2PF
ON / OFF
Auxiliary output state in case of probe failure.
