Page 18 of 24 M6493 Issue 10.3
8. TECHNICAL SPECIFICATIONS.
Mains supply voltage 110-120V~AC 50/60 Hz – (MC810Bx1, MKII).
220-240V~AC 50/60 Hz – (MC810B, MKII).
Maximum load 115V = 1000 Watts
230V = 2000 Watts
Controller power consumption 115V = 2W
230V = 2W
Fuse rating at 115V = F10A 20mm x 5mm Glass Quickblow.
230V = 10A 20mm x 5mm Glass Quickblow.
Relay output 12A switching.
Note: 12A not available for use. The unit is fused at
10A see max load – Watts.
Mains Power Lead set (UK) 13A
BS1362
3 core earthed / ground. 2 meters long. Moulded IEC
plug and Lead set – supply cord H0 V V-F- Replace
only with equivalent cable.
Mains Power Lead set (Europe) 3 core earthed / ground. 2 meters long. Moulded IEC
plug and Lead set – supply cord H0 V V-F- Replace
only with equivalent cable.
Mains Power Lead set (USA) 3 core earthed / ground. 2 meters long. Moulded IEC
plug and Lead set – supply cord SJT VW 1- Replace
only with equivalent cable.
Lead set plug fuse (UK – only) 13A (BSEN1362).
Mains Output Non-detachable 3-core mains cable with moulded IEC
socket (230V) or USA socket (115V).
Temperature Probe Input 5-pin DIN socket
Rod Clamp size 12.7mm diameter
Output ON Indication Amber Neon (front panel).
Case Construction Die cast Aluminium.
On / Off control Rocker Switch.
Do not allow this product to come into contact with liquid.
The Ingress protection rating for this product is classified as IPX0.

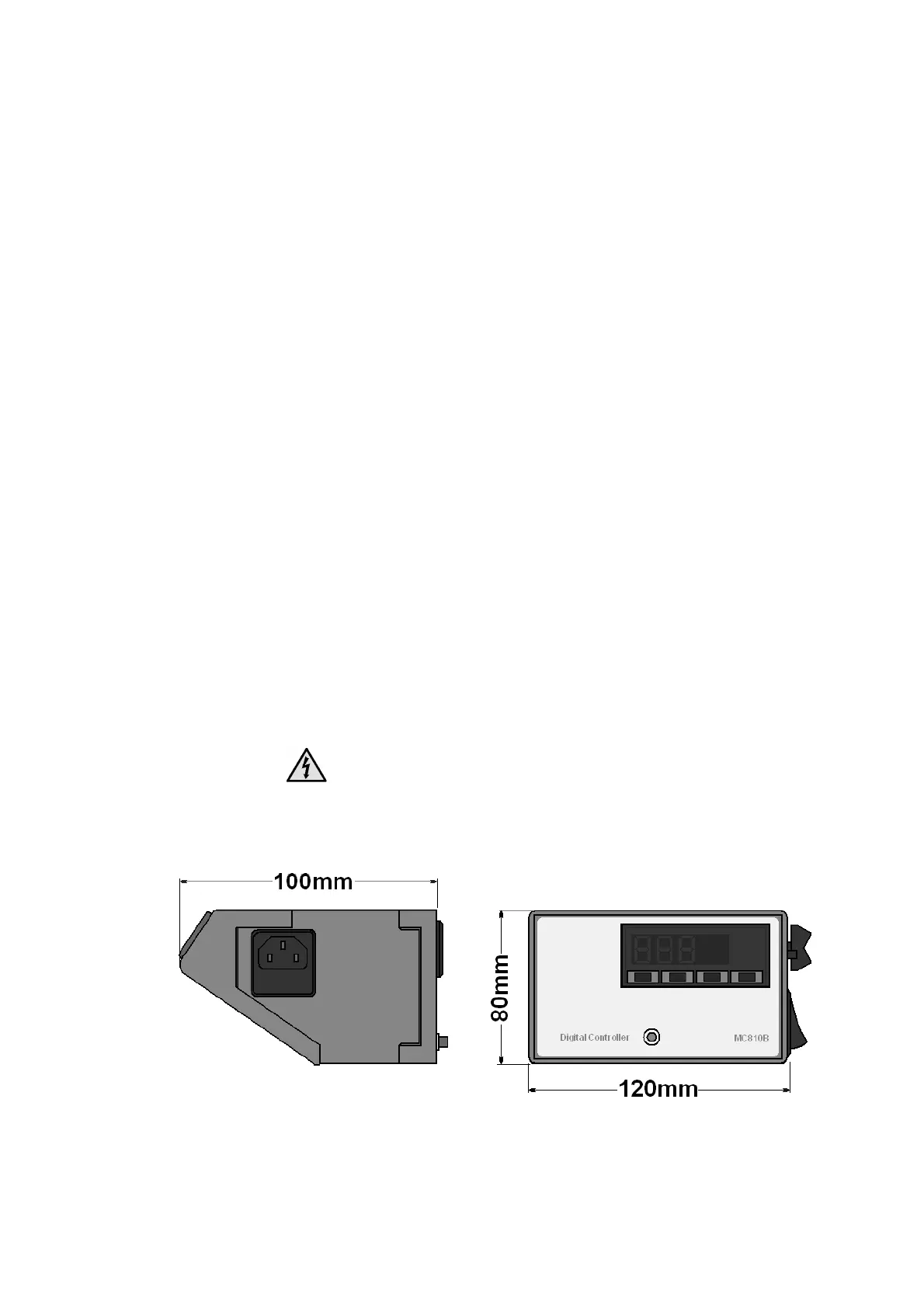

8.1. Dimension & Weight (Unpacked).
Weight 1.1Kg.
