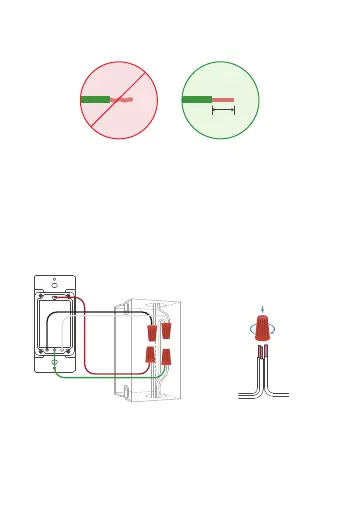

Disconnect wires from the switches, make sure that the ends of
the wires from the wall box are straight (cut if necessary).
Remove 0.6" (15mm) of insulation from each wire in the wall box.
Use provided wire connectors to connect wires in the wall box to
the wires of the smart switch.
STRIP WIRES
CONNECT SWITCH
Match every wire as labeled Screw on clockwise
0.6 inches(15mm)
Actual Size
GROUND
NEUTRAL
LINE
LOAD
To Next Page
