Single-phase electric circuit

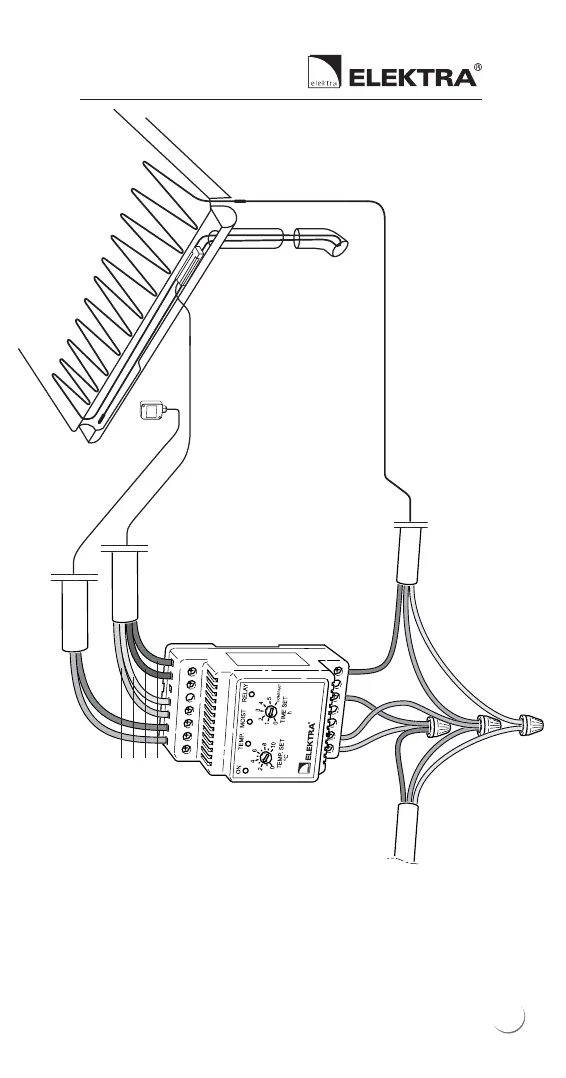

Connection diagram of ETR2-1550 controller
with ETOR-55 and ETF-744/99 sensors.
Protection of roof edges, gutters and downpipes.
heating cable
N
N
L
PE
L
L'
PE
L
N
yellow
white
brown
green
ETOR-55
ETF-744/99
single-phase
circuit
sensor’s wire
(not included
in the set)
sensor’s
wire
17
16
18
Table of Contents
English
3
Default Chapter
3
Table of Contents
3
1 Introductory Information
4
2 Types of Sensors
4
3 Additional Components
5
4 Guidelines for Installation
6
Positioning and Installation of the ETOG-56T Sensor
6
Positioning and Installation or ETOR-55
12
And ETF-744/99 Sensors
12
5 Connecting ETOG-56T, ETOR-55
14
And ETF-744/99 Sensors
14
6 Technical Data
24
Polski
31
Informacje Wstępne
32
Rodzaje Czujników
32
Dodatkowe Elementy
33
Lokalizacja I Montaż Czujnika Typu ETOG-56T
34
Wskazówki Dotyczące Instalacji
34
Lokalizacja I Montaż Czujników Typu ETOR-55 I ETF-744/99
40
Dane Techniczne
52
Ñîäåðæàíèå
59
1 Âñòóïèòåëüíàÿ Èíôîðìàöèÿ
60
2 Âèäû Äàò÷Èêîâ
60
3 Äîïîëíèòåëüíûå Ýëåìåíòû
61
4 Óêàçàíèÿ Ïî Ìîíòàæó
62
Òèïà ETOG-56T
62
Ðàñïîëîæåíèå È Ìîíòàæ Äàò÷Èêîâ Òèïà ETOR-55
68
Etf-744/99
68
Etog-56T, Etor-55
70
Etf-744/99
74
6 Òåõíè÷Åñêèå Äàííûå
80
