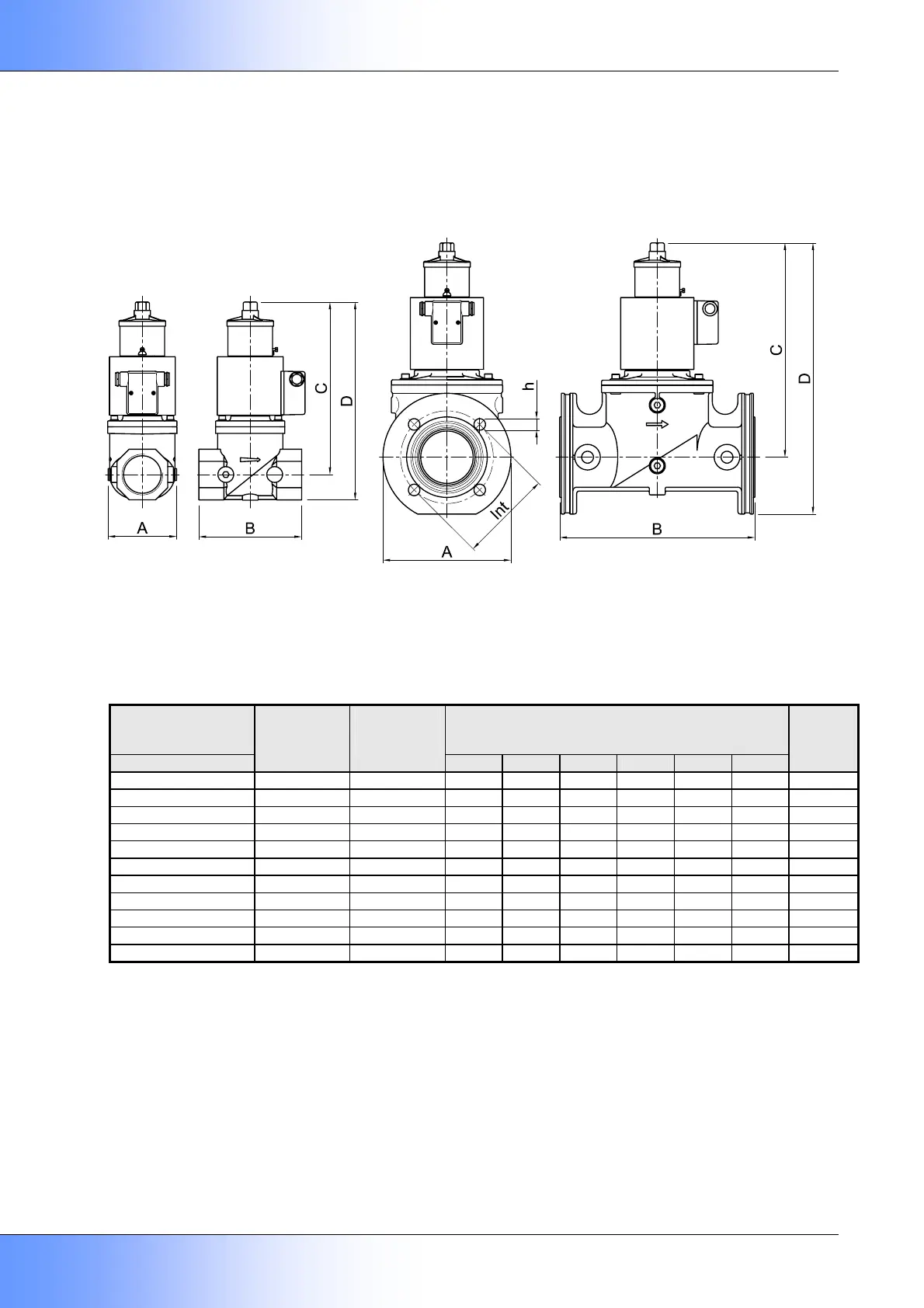

ELEKTROGAS – TECHNICAL MANUAL
5-13
Fig.3
Tab. 2
Material and
connections
Overall dimensions
[mm]
AlSi
Power
consumption
@230VAC
[W]
Flow factor
Kvs
[m³/h]
A B C D Int h
Weight
[Kg]
Rp 3/8 20 2,9 88 77 180 196 - - 1,8
Rp 1/2 20 6,0 88 77 180 196 - - 1,8
Rp 3/4 45 9,5 88 96 200 222 - - 2,7
Rp 1 45 12,0 88 96 200 222 - - 2,7
Rp 11/4 45/180 (
2
) 20,0 120 153 261 294 - - 6
Rp 11/2 45/180 (
2
) 26,0 120 153 261 294 - - 6
Rp 2 45/180 (
2
) 40,0 106 156 265 304 - - 6,3
DN 40 (
1
) 45/180 (
2
) 26,0 150 193 261 336 110 4x18 7,7
DN 50 (
1
) 45/180 (
2
) 40,0 165 196 265 348 125 4x18 8,3
DN 65 60/240 (
2
) 63,0 200 305 335 424 145 4x18 14,5
DN 80 60/240 (
2
) 80,0 200 305 335 424 160 8x18 14,5
(
1
) Optional Kit (
2
) Working/Opening
