Element elefw505 - Wall Mounting; Rear View

7
Your new TV is heavy, please consult with professional
wallmount installer to perform this installation.
PREPARATIONS
The TV is provided with mounting holes for a VESA approved wall mounting bracket (Not
Supplied).Remove the screws holding the base to the base bracket and lift the base away (do
not remove the base mounting brackets).Mount the VESA bracket using 4*M6*10 isometric
threaded screws (Not Supplied).Do not use screws longer than 10mm,damage will occur to
the internal parts.

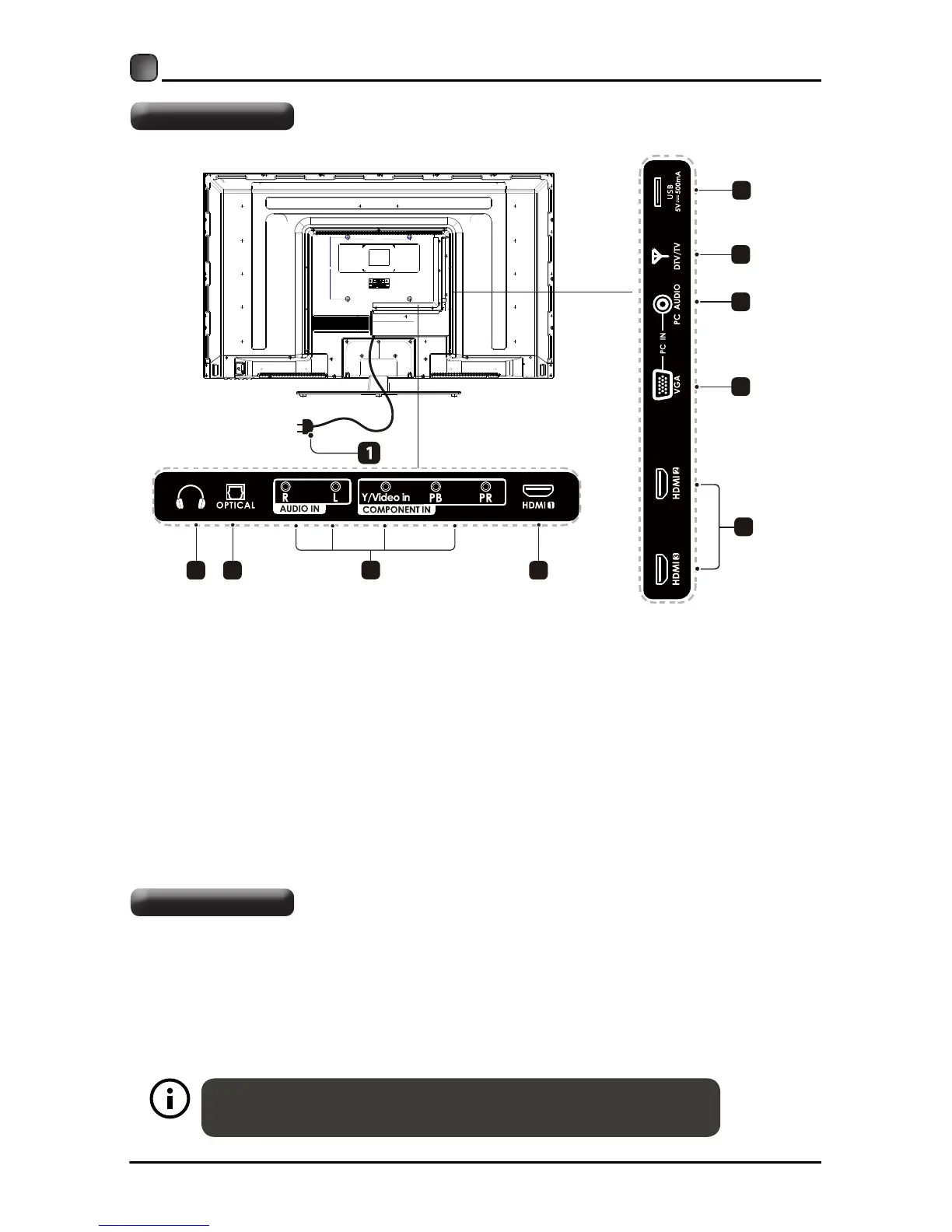

Rear View
Wall Mounting
1. Power Cord
Connect to AC power outlet.
2. Headphone Socket
Connect to the Headphones.
5. HDMI Inputs
Connect to a High-Definition (HD) signal
input device.
6.
VGA Input
Connect to a computer or other devices
with a VGA interface.
7. PC AUDIO Input
Connect to a computer audio output.
8. DTV/TV Input
4. COMPONENT Input
Connect to AV devices with component(Y/
Pb/Pr) video and audio input sockets.
9. USB Port
Connect to a USB storage device to play
photofiles.(USB mode).
3.
Optical Audio Signal Output Socket
Connect a digital sound system to
this jack.
4
2
3 5
5
6
7
8
9
Connect to the antenna (75Ω VHF/UHF)
socket with the DTV/TV coaxial cable.
