Element HELIX 1500 - Page 6

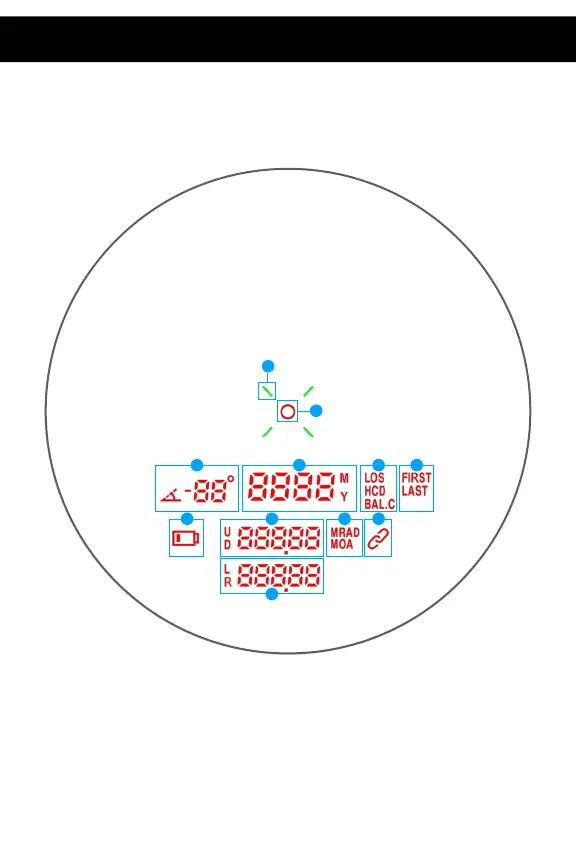

The HELIX 1500 has a Dual-Colour Transparent OLED (T-OLED) Display.
It is important to understand what each icon means before
continuing.
1) LASER RETICLE: Hold this on the object you want to range.
2) LASER ACTIVITY INDICATORS:
These 4 Green lines illuminate when a
laser beam is being emitted.
3) INCLINOMETER:
Indicates the angle (degrees) of the target being
ranged.
4
DISPLAY ORIENTATION
3
2
1
3
4 5 6
7 8
9
10
11
