ELEY 1041 - Page 13

13

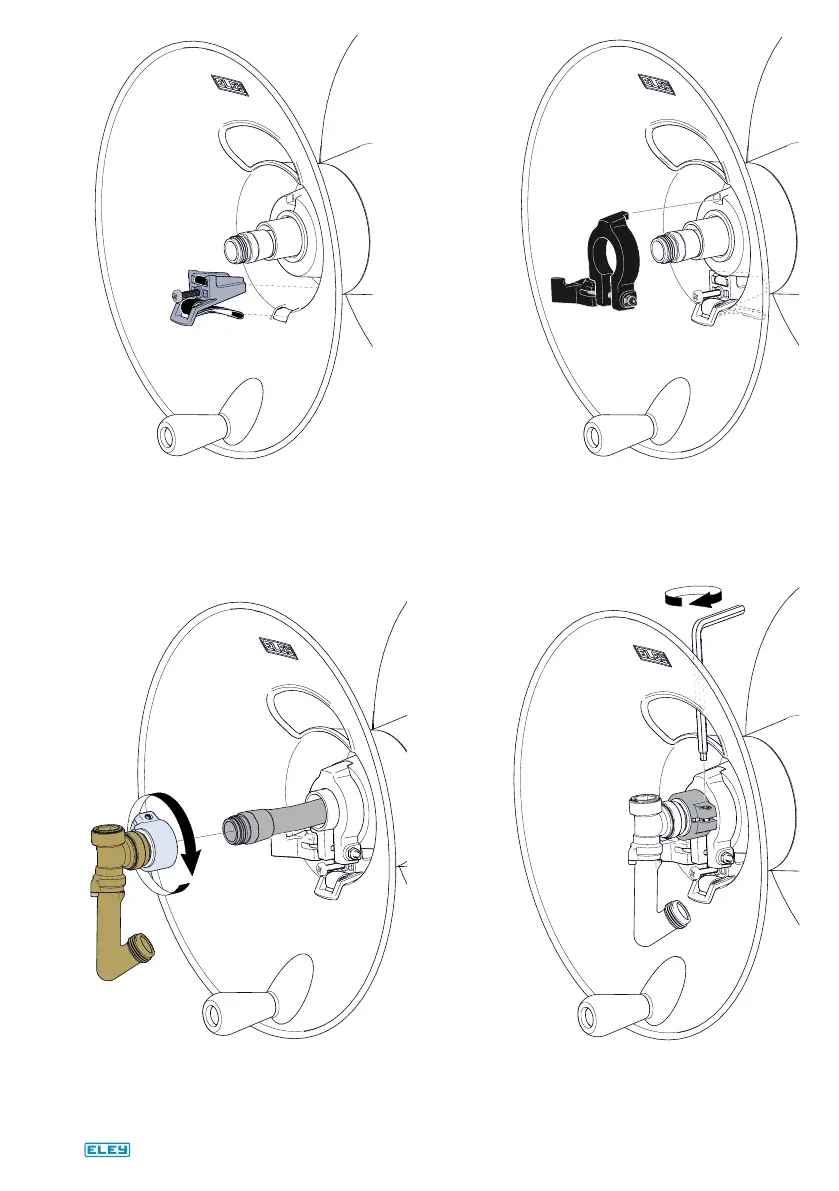

1041 ASSEMBLY
1. Insert the exible loop of the hose strap through the small rectangle hole
in the ange while nesting the hose strap into the ange center. 2. Place
brake onto axle—align the tab on the brake to the notch in the ange.
1. Screw the swivel onto the inlet hose—hand tighten rmly. 2. Push the
swivel fully onto the axle and tighten screw with hex key.
7
8
1 2
1 2
