TABLE OF CONTENTS
I. Content of the box ...................................................................................................................................................... 12
II. Description
1. Front panel ............................................................................................................................................................... 13
31 ............................................................................................................................................................... lenap raeR .2
41 ....................................................................................................................................................... lortnoc eto
meR .3
III. Connections
1. Speakers ................................................................................................................................................................... 15
61 ............................................................................................................................................................... refoowbuS .2
3. AUX 1 ........................................................................................................................................................................ 16
4. AUX 2 ........................................................................................................................................................................ 16
5. Optical ..................................................................................................................................................................... 17
6. USB ............................................................................................................................................................................ 17
7. IR in ............................................................................................................................................................................ 17
8. Line out ..................................................................................................................................................................... 17
9. Bluetooth .................................................................................................................................................................. 18
10. Optional: integration in a suspended ceiling
10a. Installation with 1 MC mini ............................................................................................................................. 19
10b. Installation with 2 MC mini .............................................................................................................................19
IV. Operation
1. L
ED indicators ......................................................................................................................................................... 20
2. Use ............................................................................................................................................................................ 20
............................................................................................................................................................ 20
Warnings ......................................................................................................................................................................... 21
Warranty ......................................................................................................................................................................... 21
Dear Customer,
Thank you for choosing this Elipson product.
Take time to read this manual carefully before installing your device.
It contains all the safety and operating instructions that should be followed to optimize
the performances of your device. We highly recommend you to retain both
packaging and user’s manual for future use.
I. CONTENT OF THE BOX
Before use, please check that the following accessories are in the box:
The MC Mini Remote control
Deported IR sensor Mounting
bracket (x2)
II. DESCRIPTION

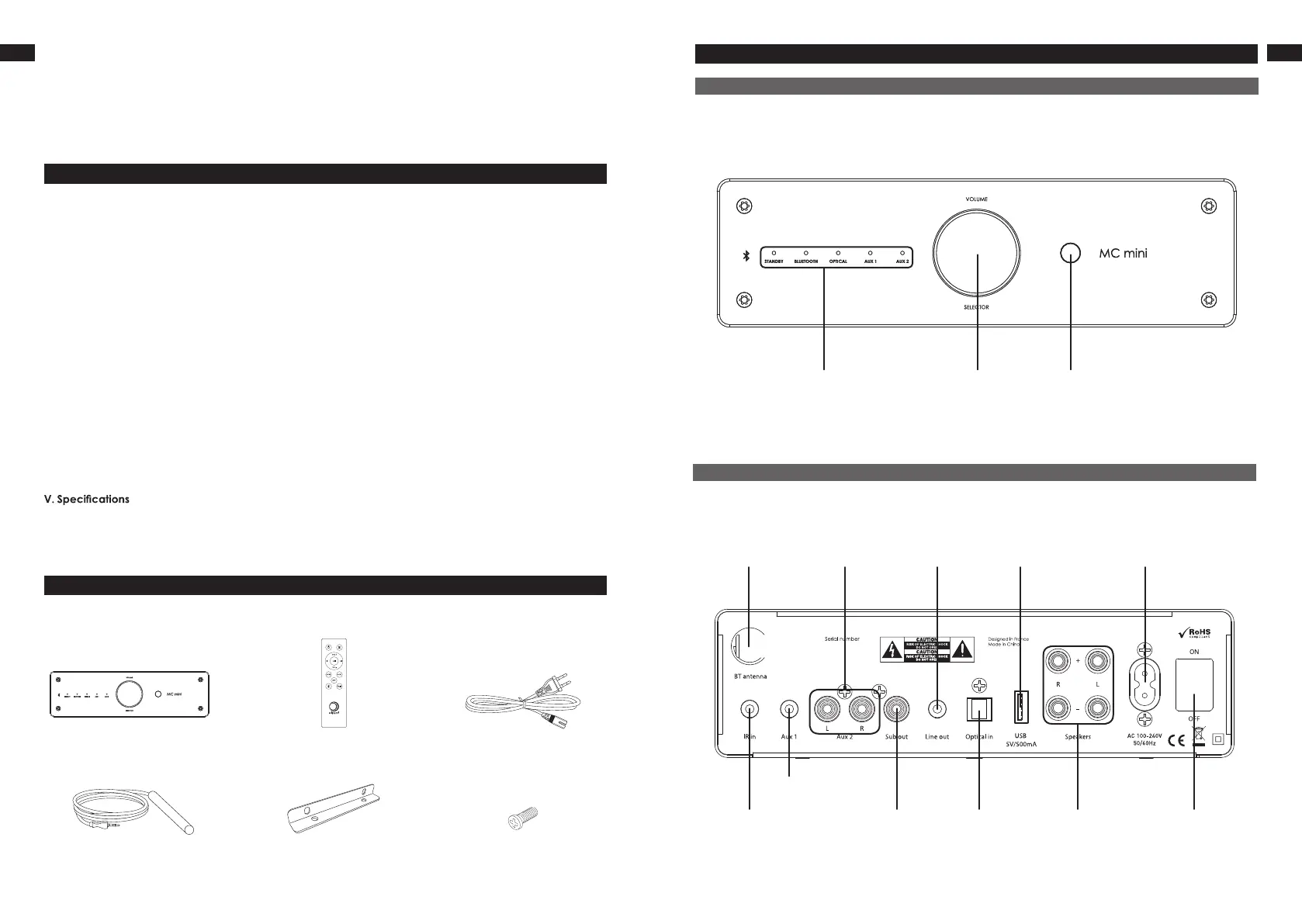

1. Front panel
2. Rear panel
IR sensor
Power cable
Screws (x8)
Ø2 x 6mm
Volume / mode
selection knob
LED indicators of
selected mode
On/Off
switch
AC in
Speakers
output
USB
charge
Optical
in
Line out
Subwoofer
output
AUX 2
in
Bluetooth
antenna
AUX 1
in
Deported IR
sensor in
