Elite Screens QuickStand Series - Three Section Frame

Three Section Frame
(For large presentation screens that are 120” or more in diagonal
measurement)

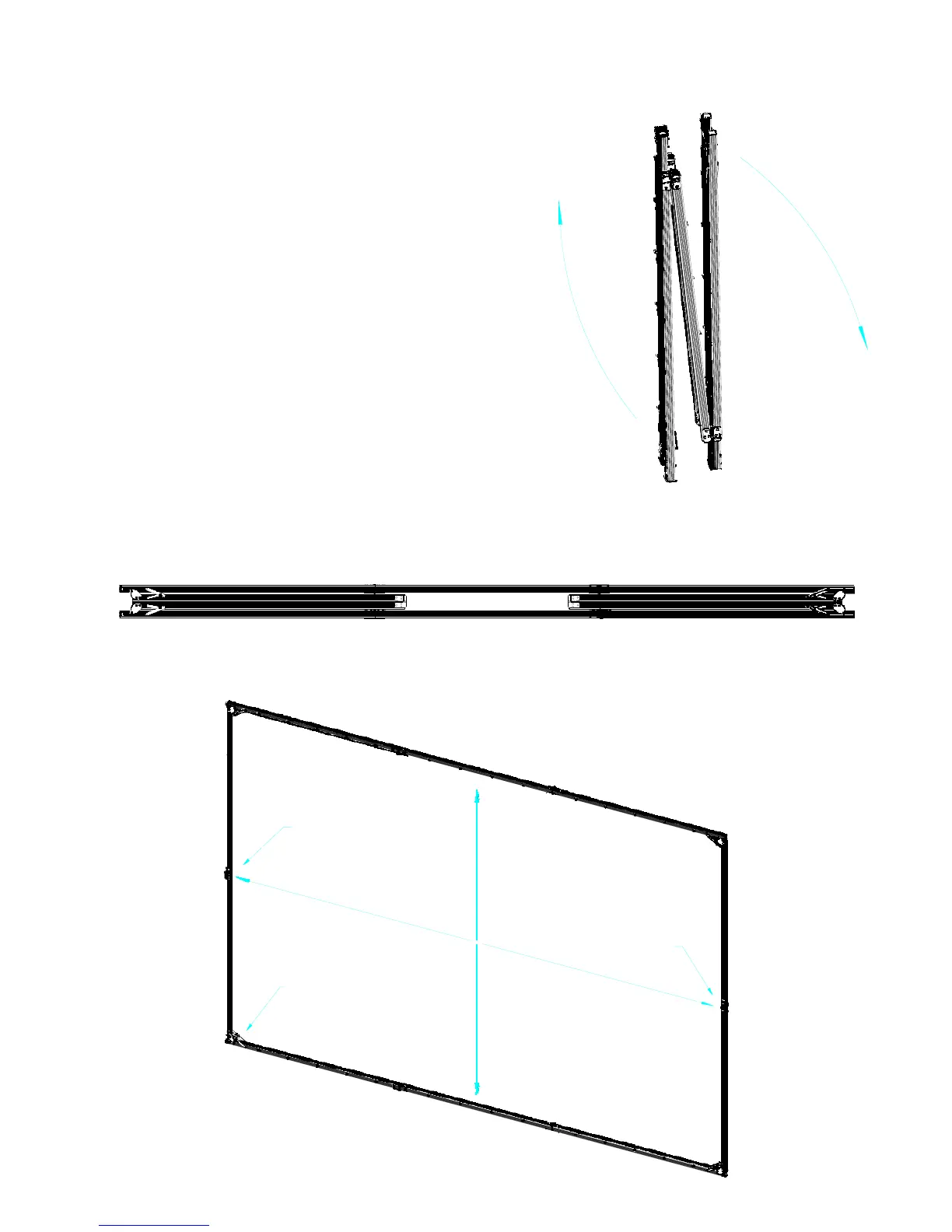

1. Take the frame out of the case and
remove its wrappings. Unfold the main joints
making sure that both the end and middle spans are in
prefect alignment as shown in (fig 4).
2. Make sure that the snap latches have locked the joints in
the frame so that it is at its full horizontal extension as
shown in (fig 5)
3. While holding the bottom of the frame in place, lift the
top of the frame to unfold the sides which will cause the
snap latches lock when fully extended.
Secure the corner braces into the locked position. The
screen frame should now be fully opened as in (fig 6).
fig 4
Top
fig 5
Top
Snap latch
Snap latch
Lock down the corners
fig 6
