- 4 -
4. Press the V/W button to select “-y-” (Yes), or
press the A/AH button to select “-n-” (No).
5. Save the settings by pressing the SET button to
confirm the -y- or –n- selection.
Setting the Value for Remaining Amp-hour and
Remaining Capacity %
Such resets are necessary for the initial installation of
either the meter or a battery, so that the display
correctly registers the actual remaining capacity of
the battery, as opposed to the rated capacity of the
battery.
1. Charge the battery fully.
2. Ensure that the panel meter is in normal
operational mode, not in debug mode.
3. Momentarily press the A/AH button repeatedly
until the AH LED is lit.
4. Press and hold the A/AH button until the AH
LED blinks.
5. Press and hold the A/AH button until reading is
reduced to the correct value, or press and hold the
V/W button until the reading is increased to the
correct value.
6. Momentarily press the SET button to save the
value.
※ Above steps should be done periodically (monthly)
to correct for any accumulated errors caused by
charger pulsing etc.
Saving the Presently Displayed Amp-hour and %
Capacity Readings
• Ensure that the panel meter is in normal
operational mode, not debug mode.
• Momentarily press the A/AH button repeatedly
until the AH LED is lit.
• Then momentarily press the SET button to save
the value.
• The display will be extinguished by the previous
step but can be restored by a momentary press of
the SET button.

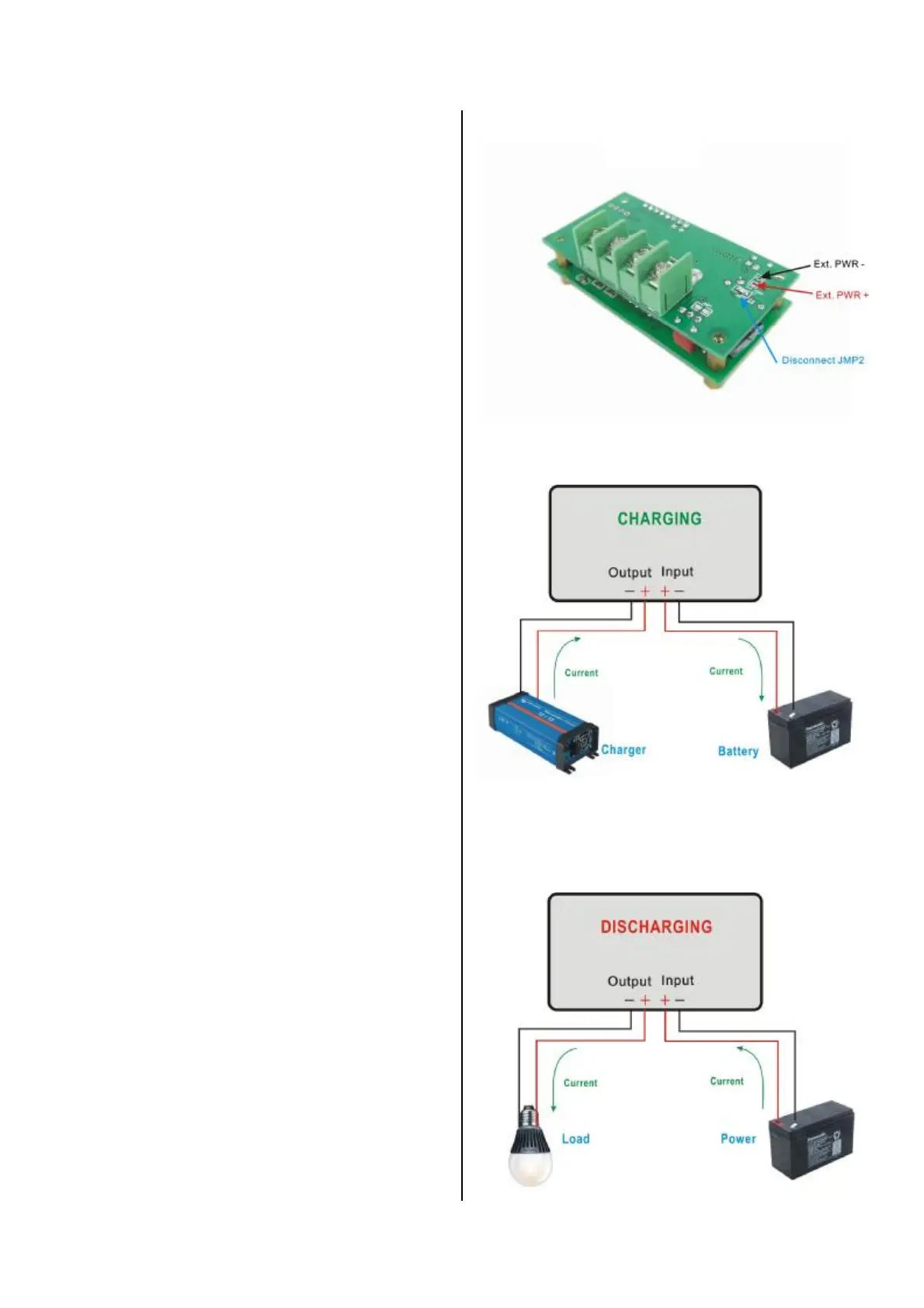

Figures 1
Figures 3
Figures 2
