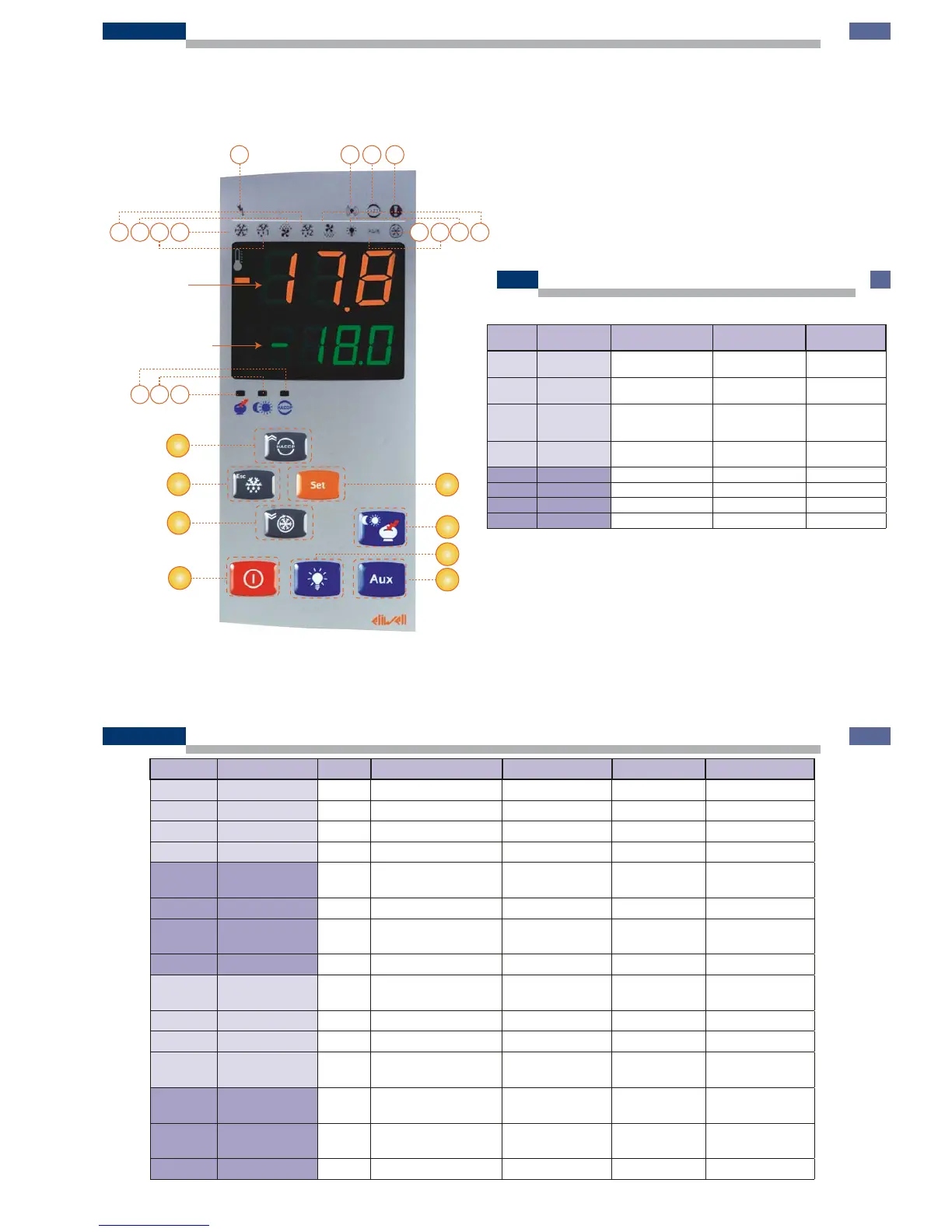

Eliwell EWRC 500 LX - Device Display Overview; Device Keys and Functions; Device Status LEDs

DISPLAY
Top Display 3 figures with + /- sign shows:
• Process Value
• parameters’ labels,
• alarms, functions
Bottom Display 4 figures shows:
• parameters’ value,
• function state / other
A
B
C
D
F
E
H
G
43
21
5678
131415
11 10 9
TOP DISPLAY
12
BOTTOM DISPLAY
Nr. LED color ON BLINK OFF Note
1 POWER red Power ON / Power OFF
2 ALARM red Alarm Silenced No Alarm
3 HACCP red HACCP Alarm Not Viewed No Alarm HACCP models
3 PANIC red Panic Alarm / No Alarm
5 COMPRESSOR yellow Compressor ON delay
Compressor
OFF
6 DEFROST 1 yellow defrost drip No defrost
7
EVAPORATOR
FANS
yellow Fans ON forced ventilation Fans OFF
8 DEFROST 2 yellow defrost drip No defrost
9
CONDENSER
FANS
yellow Fans ON / Fans OFF
10 LIGHT yellow Light ON / Light OFF
11 AUX yellow AUX ON / AUX OFF
12 DCC green
Deep Cooling Cycle
ON
/
Deep Cooling
Cycle OFF
13 ENERGY SAVING yellow Energy Saving ON /
Energy Saving
OFF
14
NIGHT AND
DAY
yellow Night and Day ON /
Night and Day
OFF
RTC models
15 HACCP yellow HACCP Menu / Other Menu HACCP models
Nr. KEY press and release
press approx
3 sec
Note
AUP
Scroll
Increase Values
HACCP menu H31
B ESC
Exit
Function Menu
manual defrost H32
C SET
Change SetPoint
Set Date / time
Enable Functions
Confi guration Menu
D DOWN
Scroll
Decrease Values
/ H33
E ENERGY SAVING Enable Energy Saving Night and Day Menu H37
F POWER Switch On / Off device drip H34
G LIGHT Switch On / Off Light forced ventilation H35
H AUX Aux / H36
LEDS
KEYS
