Page 7 1000004299 (Rev. B - 04/2018)
LVRC8WS_2AWR, LVRCWS_2AWR
Service: Inspection/Replacement
1. Lower Front Panel: To access the refrigeration system and plumbing connections, remove four (4) screws from bottom of cooler to remove
the lower front panel.
2. Bottle Filler Removal: Loosen but DO NOT remove the two (2) Mounting Screws from the sides of the Bottle Filler. Remove the two (2)
Pinned Torx Head Screws from the Top Cover & remove the Top Cover. The Bottle Filler may then be lifted up and off the Water Cooler
(The water line will still be connected from the Water Cooler to the Bottle Filler.).
3. Bubbler: To remove the bubbler, rst disconnect the electrical supply. The underside of the bubbler can be reached through the underside of
the front section. Remove the cover and internal panel by removing the retaining screws. To remove the bubbler, remove the tubing from the
quick connect tting and loosen the bubbler nipple by turning counter-clockwise. Do Not Overtighten. After servicing, replace internal panel
and cover and secure with retaining screws. Then replace the lower front panel and secure with four (4) screws.
4. Cleaning Strainer on Solenoid Valve: To clean the strainer, unscrew the cap of the solenoid valve. Remove screen and rinse thoroughly with
water. Insert screen back into solenoid valve and screw cap on. Make sure the o-ring is placed properly.
45392C
Bubbler Nipple
Basin
1000004123
1000004123
• Inspect Bottle Filler and Cooler twice each year for proper operation and performance.
• Inspection of the unit will require disconnecting electrical supply, removal of panels, etc. and reassembly and return to service practices.
REPLACEMENT PART KITS
Part No. Description
1000004058 Filter - WaterSentry Plus
1000004058_12PK Filter - WaterSentry Plus (12 Pack)
98546C Kit - Aerator Replacement
98549C Kit - Hardware & Waterway Parts
98552C Kit - Retro Filter Mounting
98631C Kit - Electrical Package 220V
1000004291 Kit - Solenoid Valve Replacement 220V
98668C Kit - Filter Mounting Cover
98999C Kit - Drain Pad
99000C Kit - Button Assembly
1000001907 Kit - Top Cover Replacement
99002C Kit - Gasket VR BF Tower/Basin
99003C Kit - Reset Switch
99004C Kit - Micro Switch

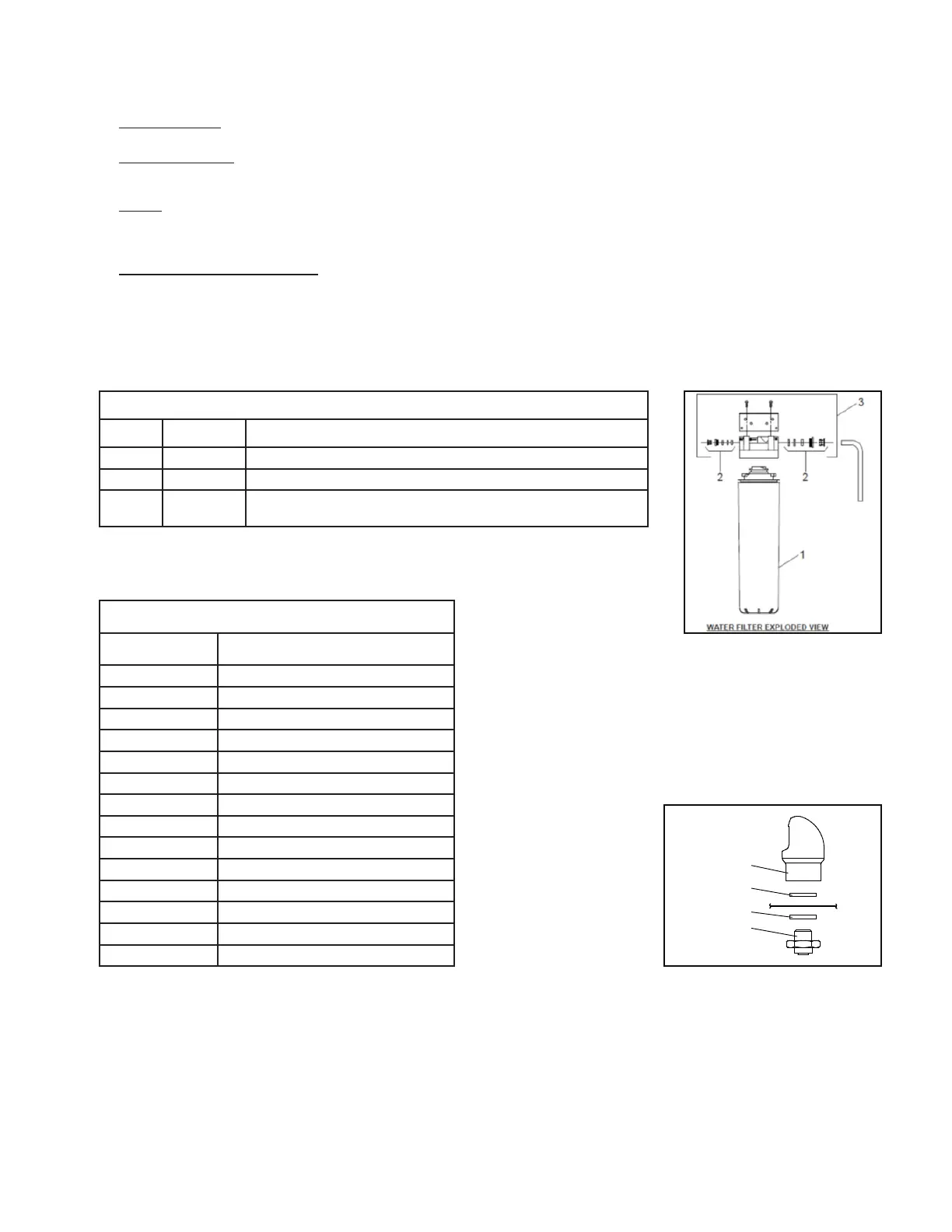

REPLACEMENT PARTS: WATER FILTER PARTS LIST
Item No. Part No. Description
1 1000004058 Filter Assy-3000 Gal.
2 98926C Kit-Filter Head Fitting Includes John Guest Fittings & 3/8” Elbow Fitting
3 1000004312
Assy-Filter & Bracket includes Filter Head/Mounting Bracket/John
Guest Fittings/Screws
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
