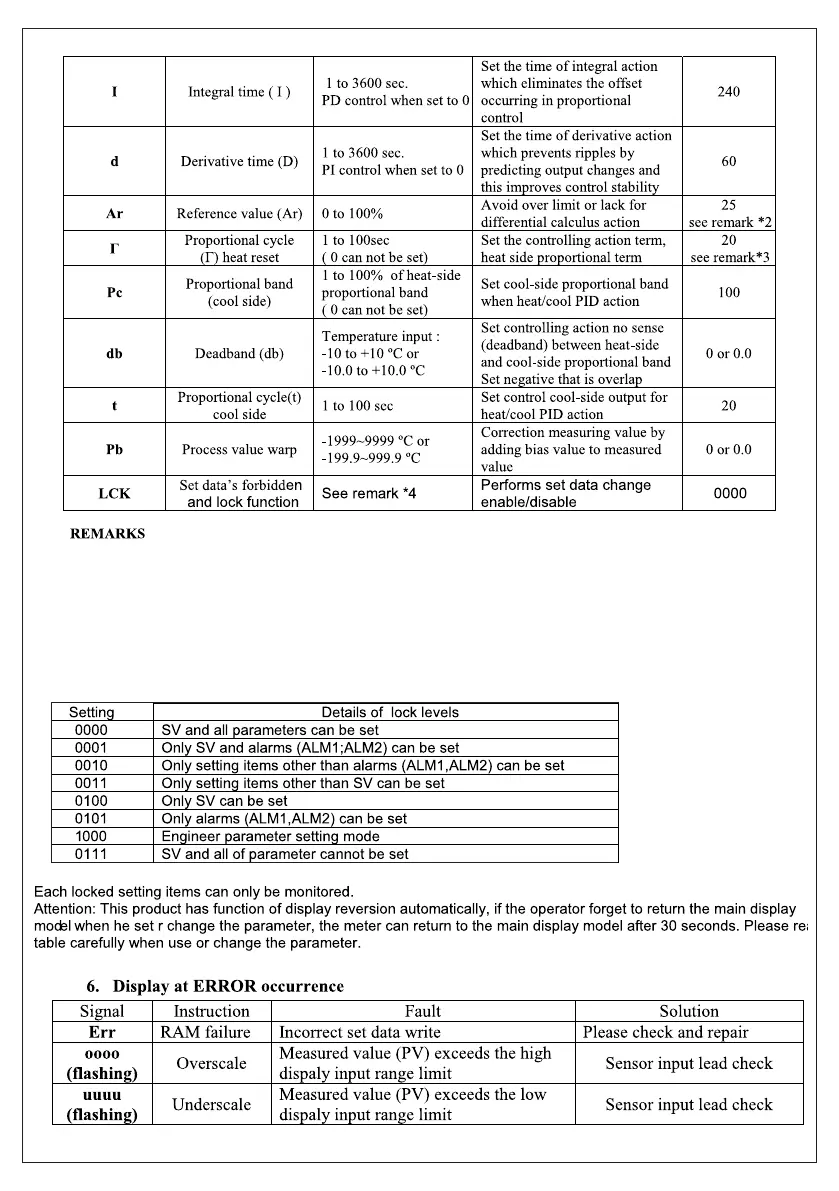

*1 - When P≠0 , meter is PID controlled, at this time you need to set “ P, I, D” values in reason; at primary usage can select “ AT” key,
the self-function to make the control to the best state; When P=0 meter is ON/OFF controlled at this time you need to set control backlash
the “OH” value
*2 - The reference value can’t be manually set within PID, after “AT” autotuning , set the value automatically
*3 - when meter output is as the relay connect output the time is 20 seconds; when the meter output is as the voltage pulse output or driver
output by trigger the time is 2 seconds
*4 - Details of set data lock level selection:
