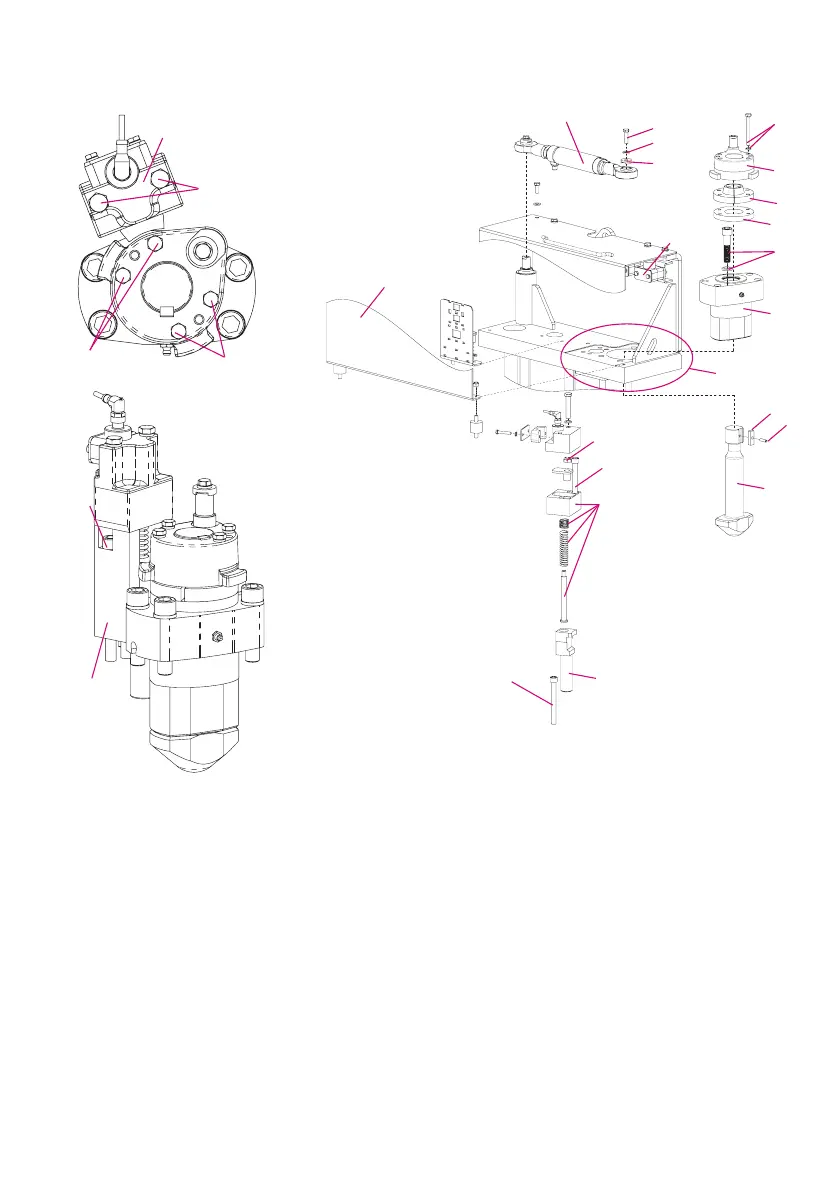

To remove the twistlock and sleeve, proceed as follows:
1 Remove the cover (item 23).
2 Remove the sensor bracket (item 1), by loosening and remove the two bolts
(item 2).
3 Loosen and remove the two screw allens (item 3).
4 Remove the seated bracket assembly. This assembly includes nut, indicator,
springs, bracket and e rod (item 4).
1
11
2
12
12
5
8
9
10
7
21
12
13
14
20
18
19
15
16
17
4
3
4
65
22
23
