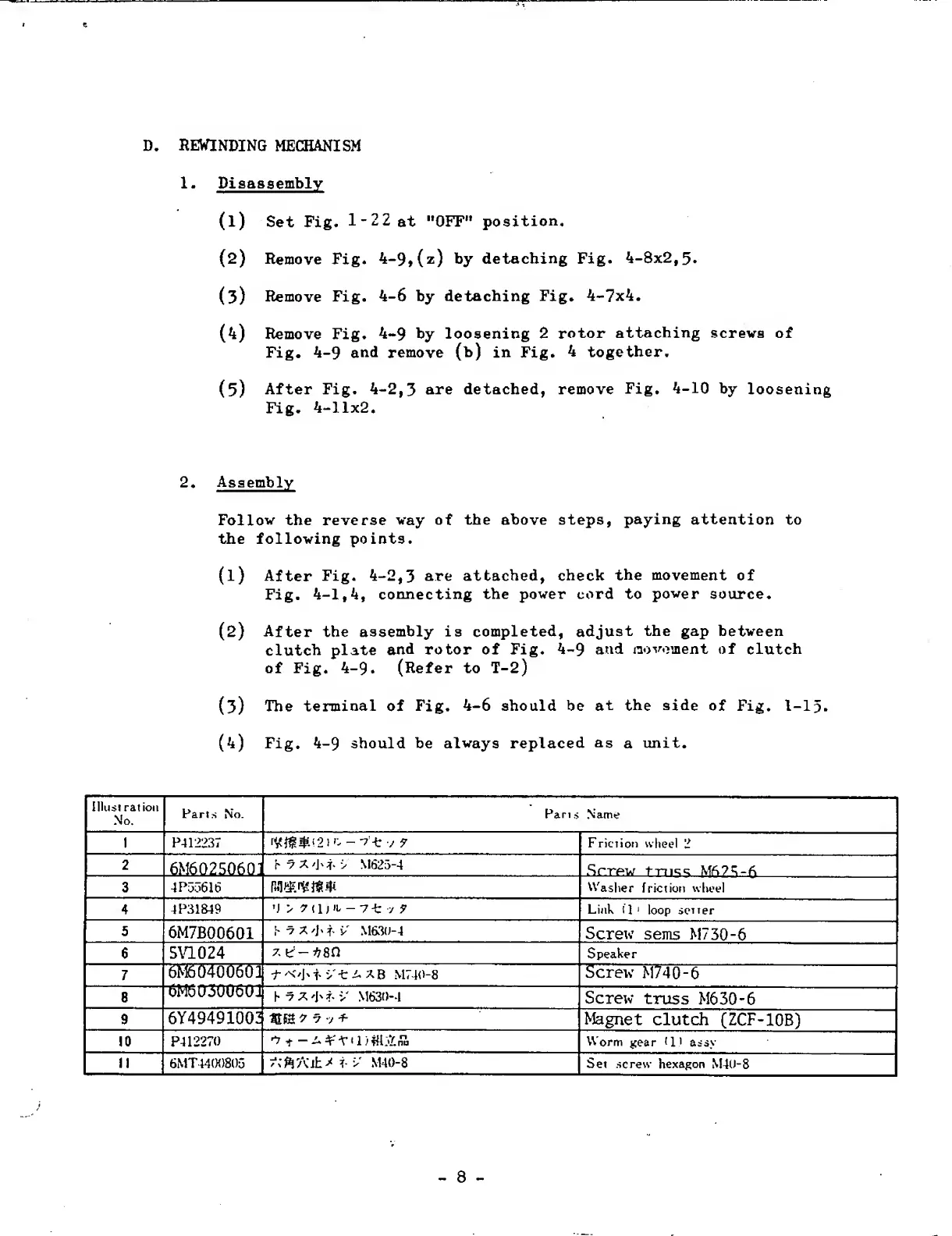

D. REWINDING MECHANISM
1. Disassembly
(1) Set Fig. 1-22 at "OFF" position.
(2) Remove Fig. 4-9,(z) by detaching Fig. 4-8x2,5*
( 3 ) Remove Fig. 4-6 by detaching Fig. 4-7x4.
( 4 ) Remove Fig. 4-9 by loosening 2 rotor attaching screws of
Fig. 4-9 and remove (b) in Fig. 4 together.
( 5 ) After Fig. 4-2,3 are detached, remove Fig. 4-10 by loosening
Fig. 4-11x2.
2. Assembly
Follow the reverse way of the above steps, paying attention to
the following points.
(1) After Fig. 4-2,3 are attached, check the movement of
Fig. 4-1,4, connecting the power cord to power source.
(2) After the assembly is completed, adjust the gap between
clutch plate and rotor of Fig. 4-9 and movement of clutch
of Fig. 4-9. (Refer to T-2)
( 3 ) The terminal of Fig. 4-6 should be at the side of Fig. 1-15»
(4) Fig. 4-9 should be always replaced as a unit.
Must rat ion
No.
Parts No.
Pans Name
1
P412237
t v 9 Friction wheel 2
2
r -7 X'J'i-> M625-4
Sr.retw fm^
3 4P5y616
fB!****#
Washer f riot ion wheel
4
4P31849
'J > 9 ( 1 ) fL - T-fc j 9
Link I!' loop setter
5
6M7B00601
Screw sems M730-6
6 5V1024
x fcf- ^8n
Speaker
7
mtsm
■ f t V -t 2 * XB M740-8
Screw M740-6
8
b v X 7 . v M63D-4
Screw truss M630-6
9
Hi
mm 9 y v +
Magnet clutch (ZCF-10B)
10 P-112270
Worm gear 11 > assy
11
6MT4400805
A'ft'A'jh > V > M40-8
Set screw hexagon M4U-8
- 8 -
