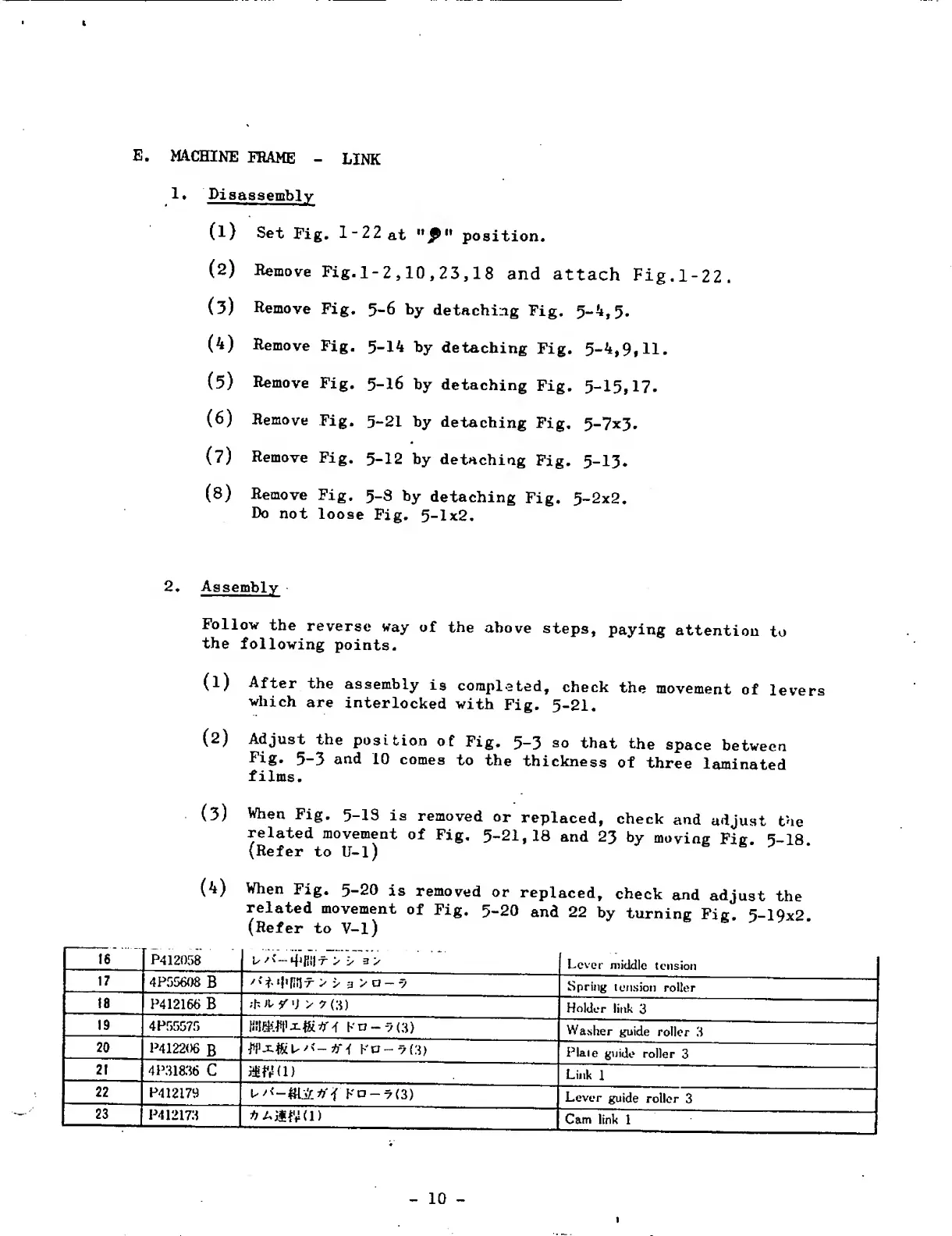

E. MACHINE FRAME
LINK
1* Disassembly
(1) Set Fig. 1-22 at position.
( 2 ) Remove Fig. 1 - 2,10,2 3,18 and attach Fig.1-22.
( 3 ) Remove Fig. 5-6 by detaching Fig. 5-4,5.
(4) Remove Fig. 5-14 by detaching Fig. 5-4,9,11.
(5) Remove Fig. 5-16 by detaching Fig. 5-15,17.
(6) Remove Fig. 5-21 by detaching Fig. 5-7x3.
(7) Remove Fig. 5-12 by detaching Fig. 5-13.
(8) Remove Fig. 5-S by detaching Fig. 5-2x2.
Do not loose Fig. 5-1x2.
2 , Assembly
Follow the reverse way of the above steps, paying attention to
the following points.
(1) After the assembly is completed, check the movement of levers
which are interlocked with Fig. 5-21.
(2) Adjust the position of Fig. 5-3 so that the space between
Fig. 5-3 and 10 comes to the thickness of three laminated
films.
(3) When Fig. 5-1S is removed or replaced, check and adjust the
related movement of Fig. 5-21,18 and 23 by moving Fig 5-18
(Refer to U-l)
(4) W hen Fig. 5-20 is removed or replaced, check and adjust the
related movement of Fig. 5-20 and 22 by turning Fig 5-19x?
(Refer to V-l)
16
P412058
\ 7" > > 3>
Lever middle tension
17
4P55608 B > y i >a-y
Spring tension roller
18
P412166 B
* A- y > 7 (3)
Holder link 3
19
4P55575
h‘o-5(3)
Washer guide roller 3
20
P412206 g
Wxjfcu I f i Ka-v(3)
Plate guide roller 3
21
4P31836 C
mnn)
Link 1
22
P412179
1
Lever guide roller 3
23
P412173
* AiifVU)
Cam link 1
10 -
