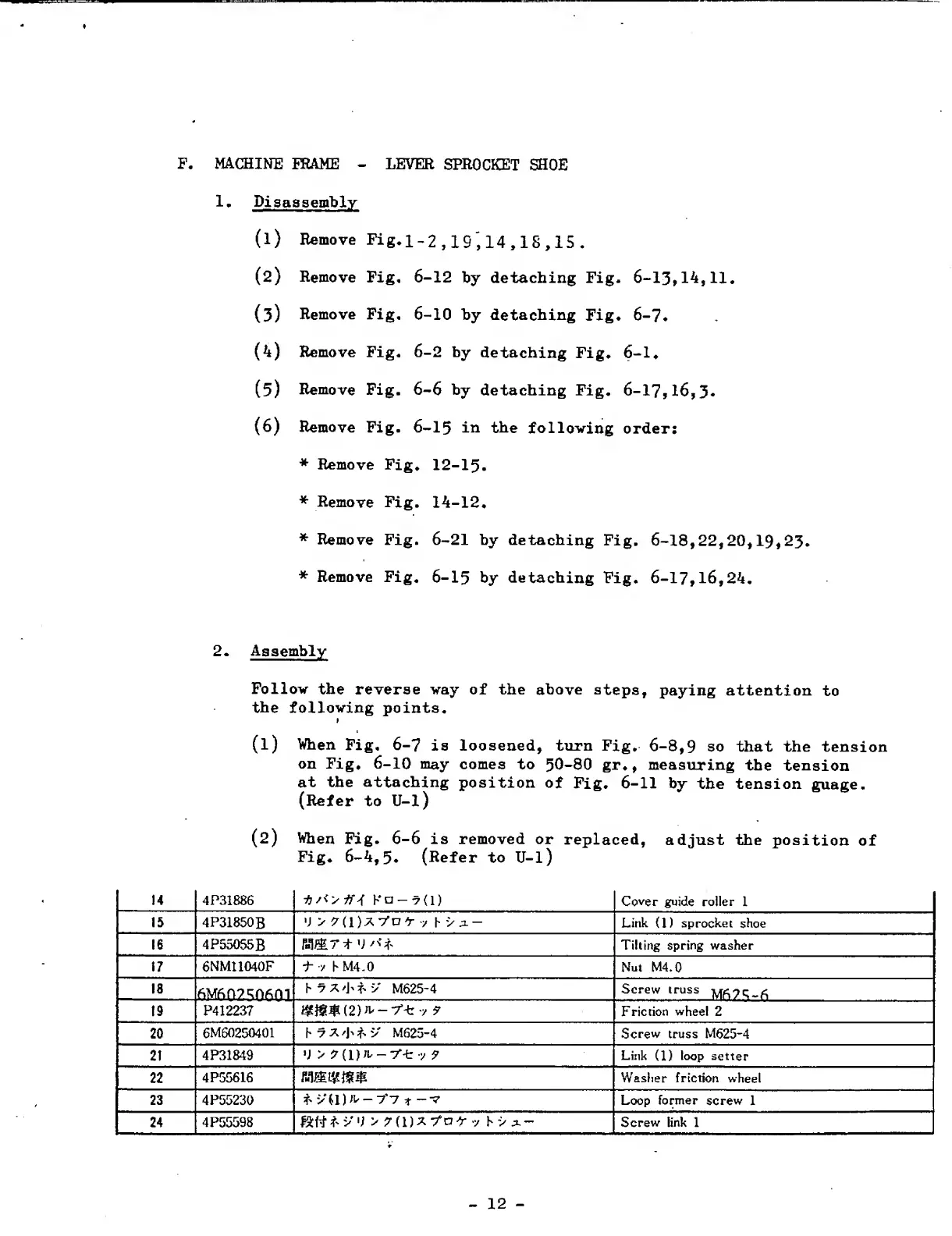

F. MACHINE TRAME
LEVER SPROCKET SHOE
1. Disassembly
(1) Remove Fig.l-2,19', 14, IS, 15.
( 2 ) Remove Fig. 6-12 by detaching Fig. 6-13*14,11.
( 3 ) Remove Fig. 6-10 by detaching Fig. 6-7.
(4) Remove Fig. 6-2 by detaching Fig. 6-1.
( 5 ) Remove Fig. 6-6 by detaching Fig. 6-17*16,3.
(6) Remove Fig. 6-15 in the following order:
* Remove Fig. 12-15-
* Remove Fig. 14-12.
* Remove Fig. 6-21 by detaching Fig. 6-18,22,20,19,23.
* Remove Fig. 6-15 by detaching Fig. 6-17*16,24.
2. Assembly
Follow the reverse way of the above steps, paying attention to
the following points.
>
(1) When Fig. 6-7 is loosened, turn Fig. 6-8,9 so that the tension
on Fig. 6-10 may comes to 50-80 gr.* measuring the tension
at the attaching position of Fig. 6-11 by the tension guage.
(Refer to U-l)
( 2 ) When Fig. 6-6 is removed or replaced, adjust the position of
Fig. 6-4,5. (Refer to U-l)
14 4P31886
Ka-7(1)
Cover guide roller 1
15
4P31850B
') > 7(1)7 7"n *r 7 h y a-
Link (1) sprocket shoe
16
4P55055B
Mrt ' )
Tilting spring washer
17
6NM11040F ■ f 7 h M4.0
Nut M4.0
18
hvX'J'tv M625-4
Screw truss
19
P412237
£m$(2)*-7 , -t 7 7
Friction wheel 2
20
6M60250401
h 7 7 'J't v M623-4
Screw truss M625-4
21
4P31849
') > 7(1 7 9
Link (1) loop setter
22
4P55616 Washer friction wheel
23 4P55230
T' v(l)^-7’7 t -V
Loop former screw 1
24
4P55598
>1 >7(1)7 7‘07 7 Screw link 1
