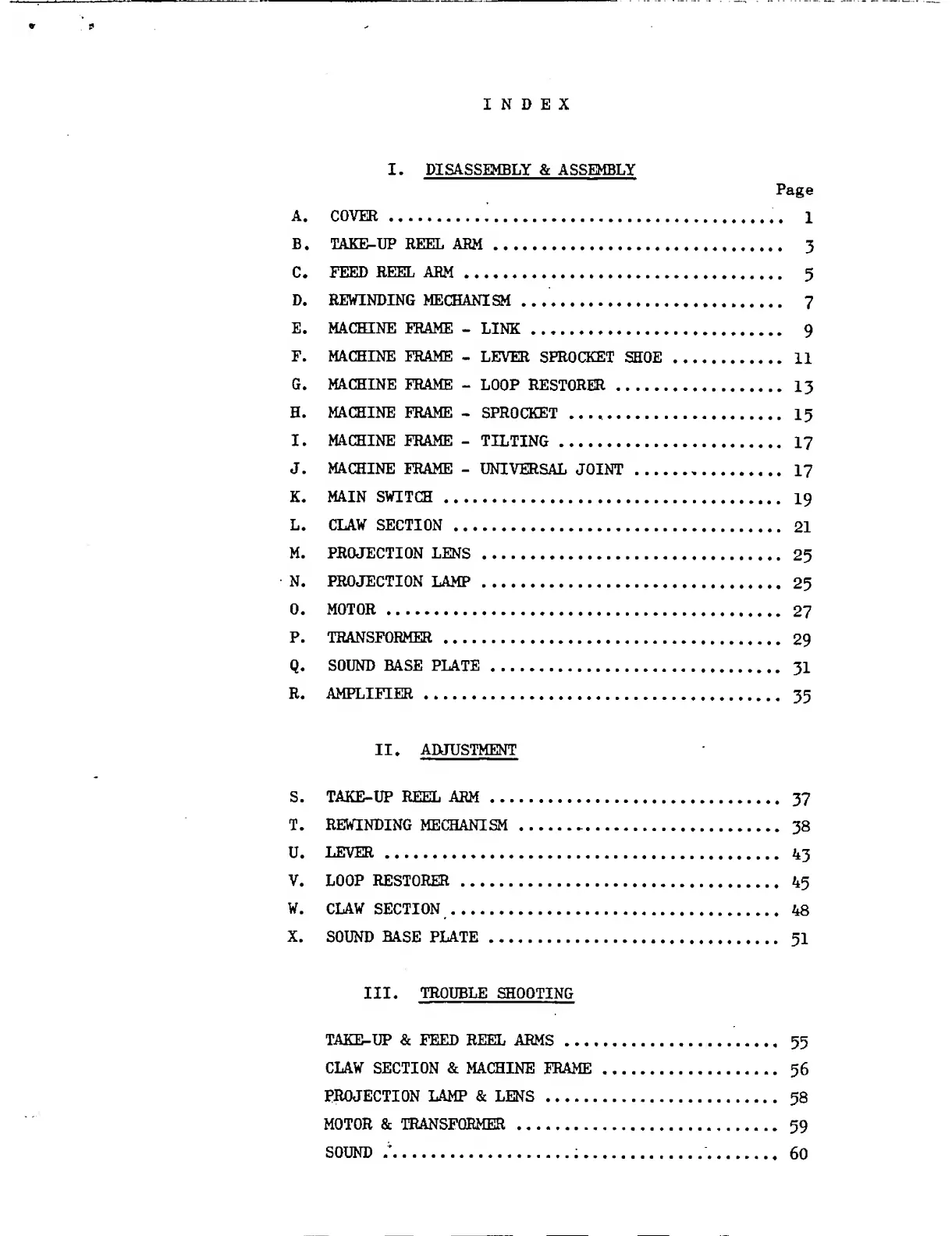

INDEX
I. D ISASSEMBLY & ASSEMBLY
Page
A. COVER. 1
B. TAKE-UP REEL ARM. 3
C. FEED REEL ARM. 5
D. REWINDING MECHANISM... 7
E. MACHINE FRAME - LINK. 9
F. MACHINE FRAME - LEVER SPROCKET SHOE. 11
G. MACHINE FRAME - LOOP RESTORER. 13
H. MACHINE FRAME - SPROCKET .... . 15
I. MACHINE FRAME - TILTING. 17
J. MACHINE FRAME - UNIVERSAL JOINT. 17
K. MAIN SWITCH. 19
L. CLAW SECTION. 21
M. PROJECTION LENS. 25
N. PROJECTION LAMP. 25
O . MOTOR. 27
P. TRANSFORMER. 29
Q. SOUND BASE PLATE. 31
R. AMPLIFIER .. 35
II. A DJUSTMENT
S. TAKE-UP REEL ARM. 37
T. REWINDING MECHANISM. . 38
U. LEVER 43
V. LOOP RESTORER. 45
W. CLAW SECTION. 48
X. SOUND BASE PLATE. 51
III. T ROUBLE SHOOTING
TAKE-UP & FEED REEL ARMS. 55
CLAW SECTION & MACHINE FRAME. 56
PROJECTION LAMP & LENS. 58
MOTOR & TRANSFORMER. 59
SOUND /.... 60
