Elmo 16-CL - Page 20

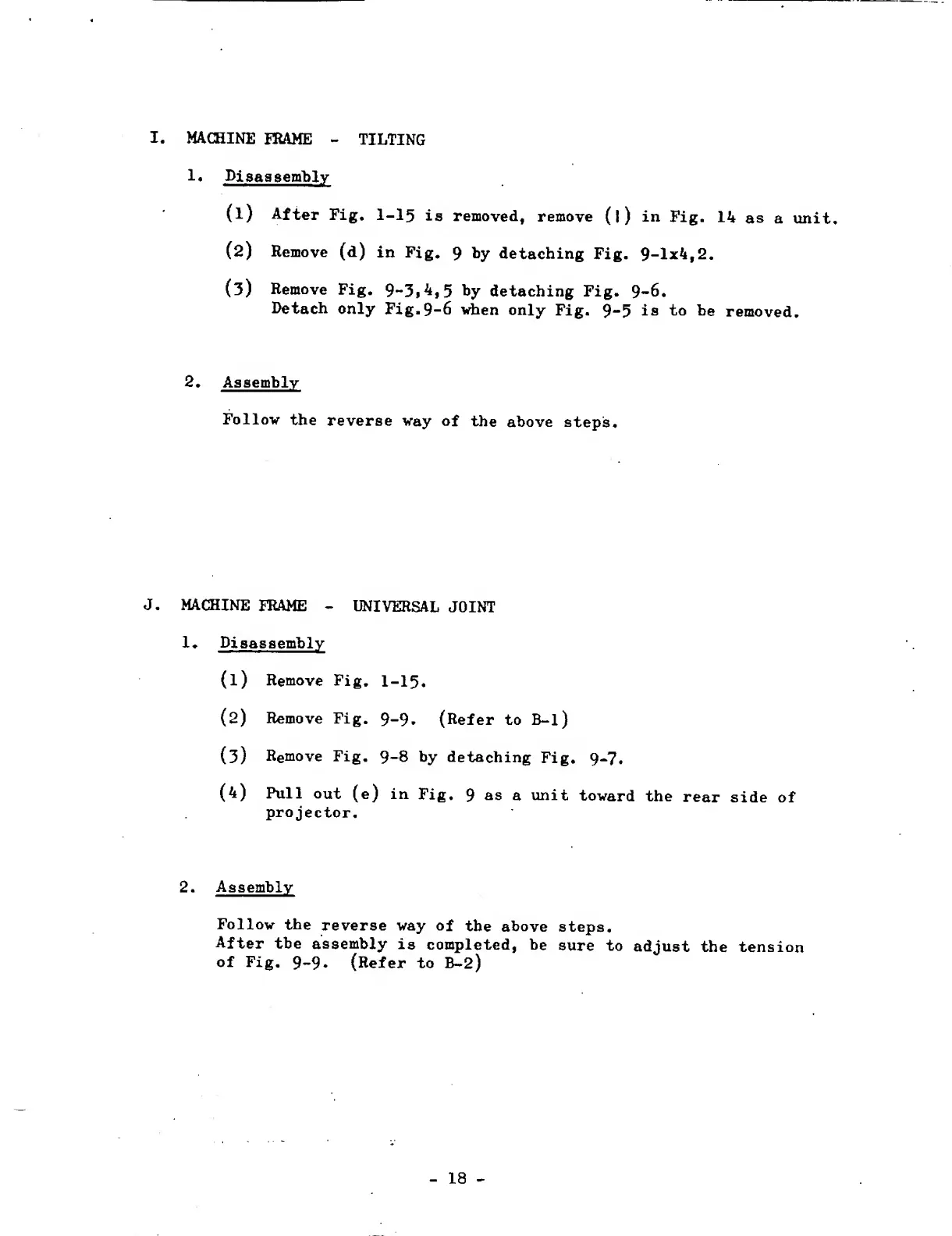

I. MACHINE FRAME
TILTING
1. Disassembly
(1) After Fig. 1-15 is removed, remove (l) in Fig. 14 as a unit.
(2) Remove (d) in Fig. 9 by detaching Fig. 9-1x4,2.
( 3 ) Remove Fig. 9~3»4,5 by detaching Fig. 9-6.
Detach only Fig.9-6 when only Fig. 9-5 is to be removed.
2. Assembly
Follow the reverse way of the above steps.
J. MACHINE FRAME - UNIVERSAL JOINT
1. Disassembly
(1) Remove Fig. 1-15.
(2) Remove Fig. 9-9. (Refer to B-l)
(3) Remove Fig. 9-8 by detaching Fig. 9-7.
(4) Pull out (e) in Fig. 9 as a unit toward the rear side of
projector.
2. Assembly
Follow the reverse way of the above steps.
After tbe assembly is completed, be sure to adjust the tension
of Fig. 9-9* (Refer to B-2)
