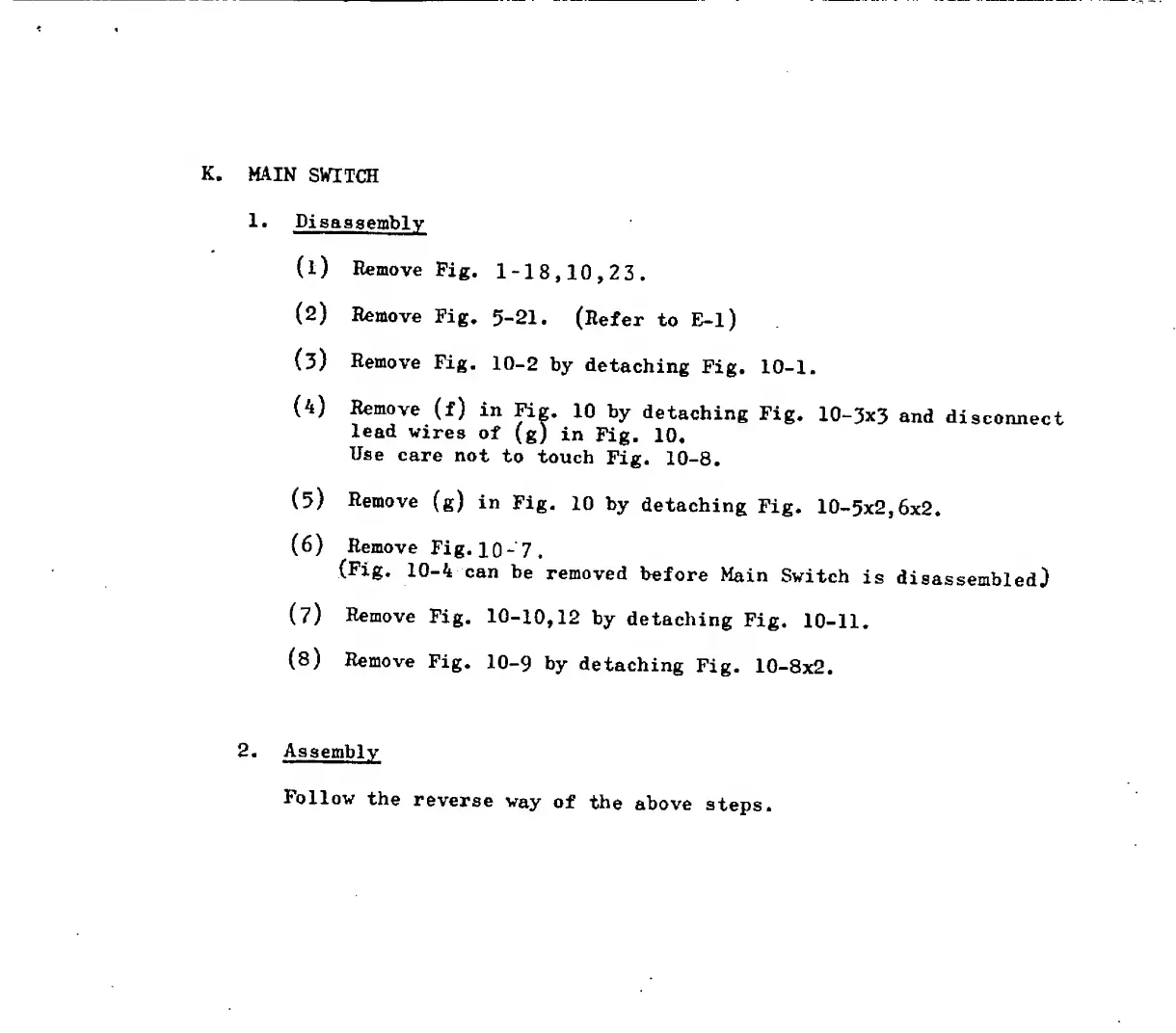

K. MAIN SWITCH
1* Disassembly
(1) Remove Pig. 1-18,10,23.
(2) Remove Pig. 5-21. (Refer to E~l)
(3) Remove Fig. 10-2 by detaching Fig. 10-1.
(4) Remove (f) in Fig. 10 by detaching Fig. 10-3x3 and disconnect
lead wires of (g) in Fig. 10.
Use care not to touch Fig. 10-8.
(5) Remove (g) in Fig. 10 by detaching Fig. 10-5x2,6x2.
(6) Remove Fig. 10-7.
(Fig. 10-4 can be removed before Main Switch is disassembled)
(7) Remove Fig. 10-10,12 by detaching Fig. 10-11.
(8) Remove Fig. 10-9 by detaching Fig. 10-8x2.
2.
Assembly
Follow the reverse way of the above steps.
