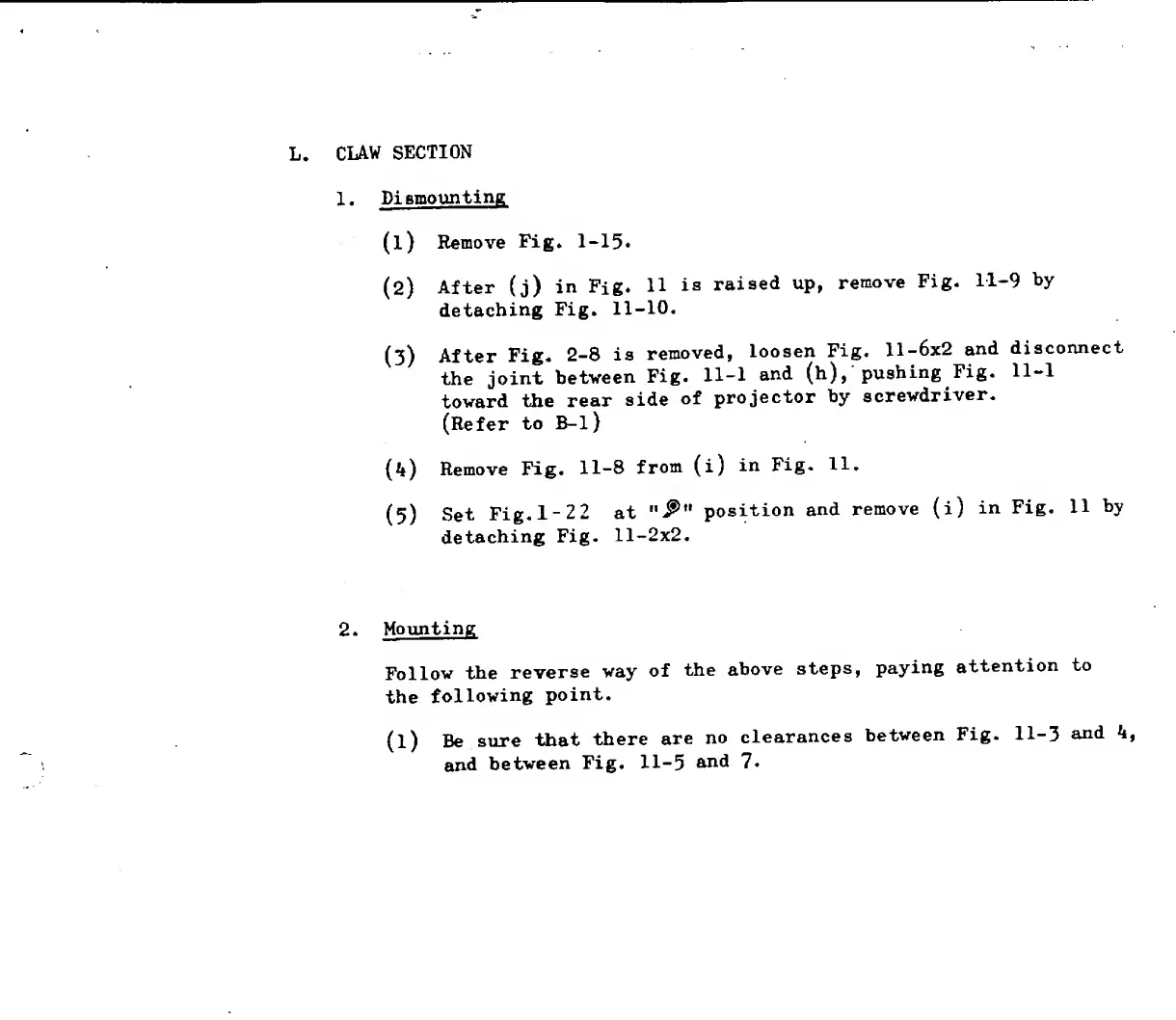

L. CLAW SECTION
1. Dismounting
(1) Remove Fig* 1-15•
(2) After (j) in Fig. 11 is raised up, remove Fig. 11-9 by
detaching Fig. 11-10.
( 3 ) After Fig. 2-8 is removed, loosen Fig. 11-6x2 and disconnect
the joint between Fig. 11-1 and (h), pushing Fig. 11-1
toward the rear side of projector by screwdriver.
(Refer to B-l)
(4) Remove Fig. 11-8 from (i) in Fig. 11.
( 5 ) Set Fig. 1-2 2 at n & " position and remove (i) in Fig. 11 by
detaching Fig. 11-2x2.
2. Mounting
Follow the reverse way of the above steps, paying attention to
the following point.
(l) Be sure that there are no clearances between Fig. 11-3 and 4,
and between Fig. 11-5 and 7.
