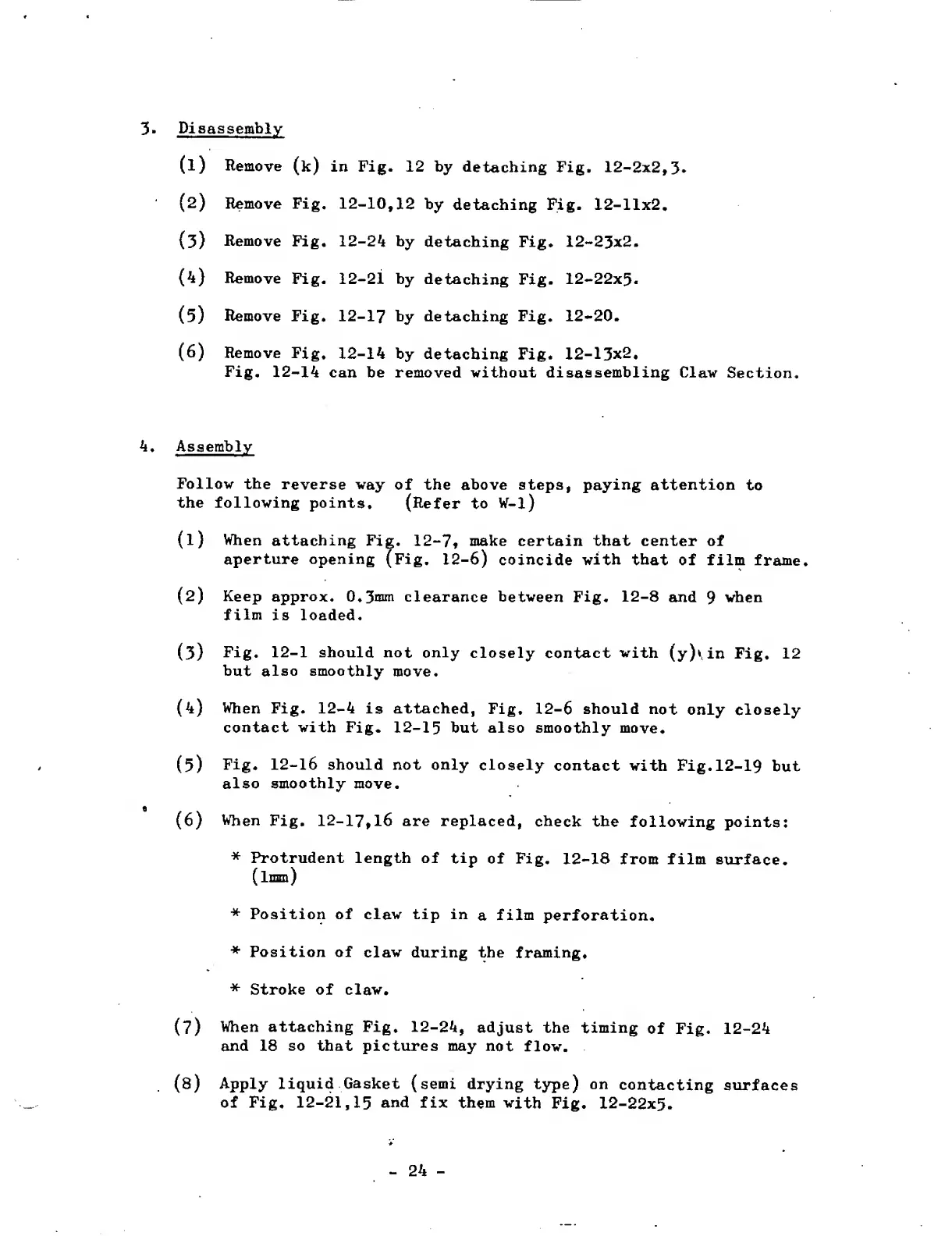

3* Disassembly
(1) Remove (k) in Fig. 12 by detaching Fig. 12-2x2,3*
(2) Remove Fig. 12-10,12 by detaching Fig. 12-11x2.
(3) Remove Fig. 12-24 by detaching Fig. 12-23x2.
(4) Remove Fig. 12-21 by detaching Fig. 12-22x5*
(5) Remove Fig. 12-17 by detaching Fig. 12-20.
(6) Remove Fig. 12-14 by detaching Fig. 12-13x2.
Fig. 12-14 can be removed without disassembling Claw Section.
4. Assembly
Follow the reverse way of the above steps, paying attention to
the following points, (Refer to W-l)
(1) When attaching Fig. 12-7, make certain that center of
aperture opening (Fig. 12-6) coincide with that of film frame.
(2) Keep approx. 0.3nim clearance between Fig. 12-8 and 9 when
film is loaded.
(3) Fig. 12-1 should not only closely contact with (y)vin Fig, 12
but also smoothly move.
(4) When Fig. 12-4 is attached, Fig. 12-6 should not only closely
contact with Fig. 12-15 but also smoothly move.
(5) Fig. 12-16 should not only closely contact with Fig.12-19 but
also smoothly move.
(6) When Fig. 12-17*16 are replaced, check the following points:
* Protrudent length of tip of Fig. 12-18 from film surface.
* Position of claw tip in a film perforation.
* Position of claw during the framing.
* Stroke of claw.
(7) When attaching Fig. 12-24, adjust the timing of Fig. 12-24
and 18 so that pictures may not flow.
(8) Apply liquid Gasket (semi drying type) on contacting surfaces
of Fig. 12-21,15 and fix them with Fig. 12-22x5.
24 -
