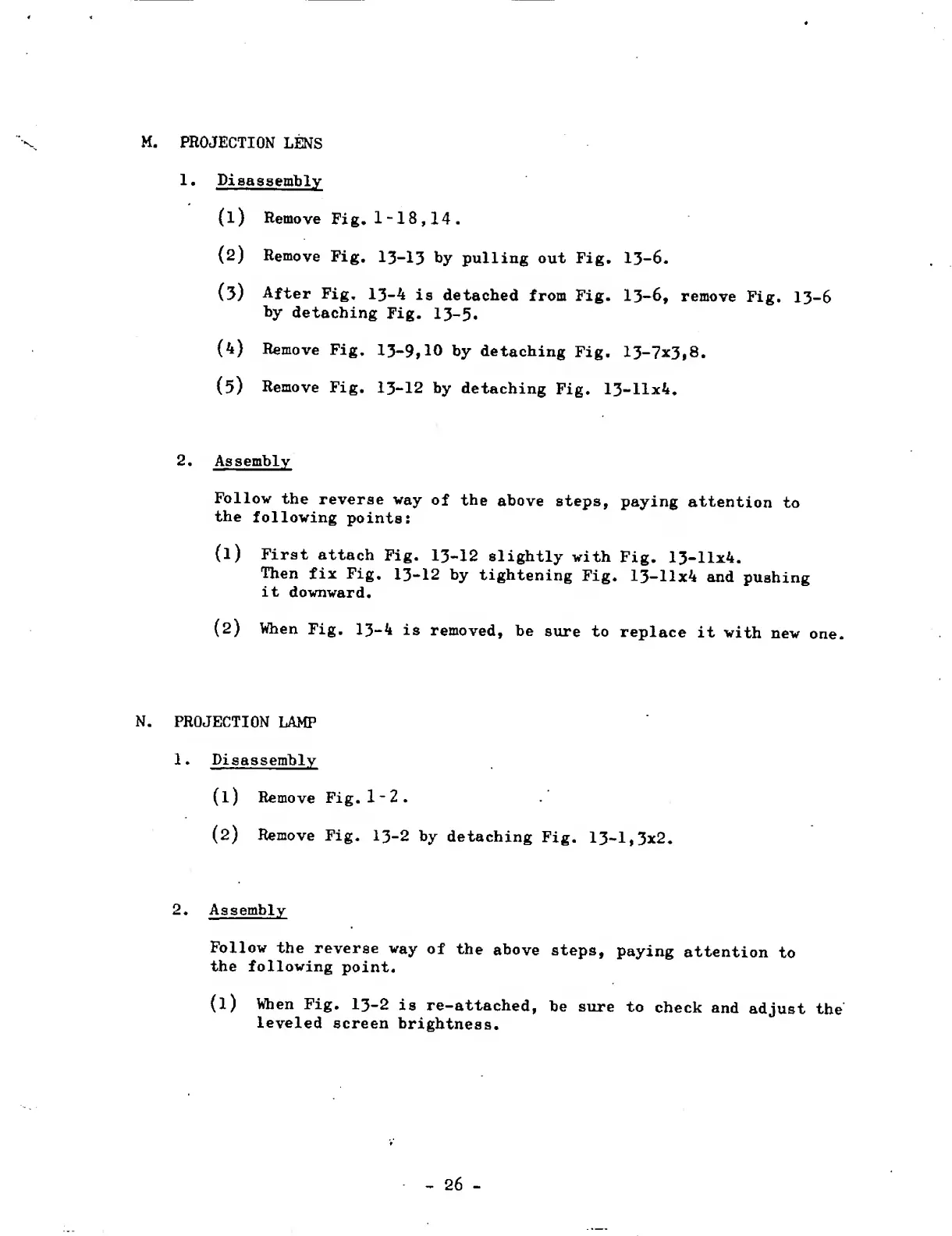

M. PROJECTION LENS
*v
1. Disassembly
(1) Remove Fig. 1-18,14.
(2) Remove Fig. 13-13 by pulling out Fig. 13-6.
(3) After Fig. 13-4 is detached from Fig. 13-6, remove Fig. 13-6
by detaching Fig. 13-5.
(4) Remove Fig. 13-9,10 by detaching Fig. 13-7x3,8.
(5) Remove Fig. 13-12 by detaching Fig. 13-11x4.
2. Assembly
Follow the reverse way of the above steps, paying attention to
the following points:
(1) First attach Fig. 13-12 slightly with Fig. 13-11x4.
Then fix Fig. 13-12 by tightening Fig. 13-11x4 and pushing
it downward.
( 2 ) When Fig. 13-4 is removed, be sure to replace it with new one.
N. PROJECTION LAMP
1. Disassembly
(1) Remove Fig. 1-2.
( 2 ) Remove Fig. 13-2 by detaching Fig. 13-1,3x2.
2. Assembly
Follow the reverse way of the above steps, paying attention to
the following point.
(l) When Fig. 13-2 is re-attached, be sure to check and adjust the
leveled screen brightness.
- 26 -
