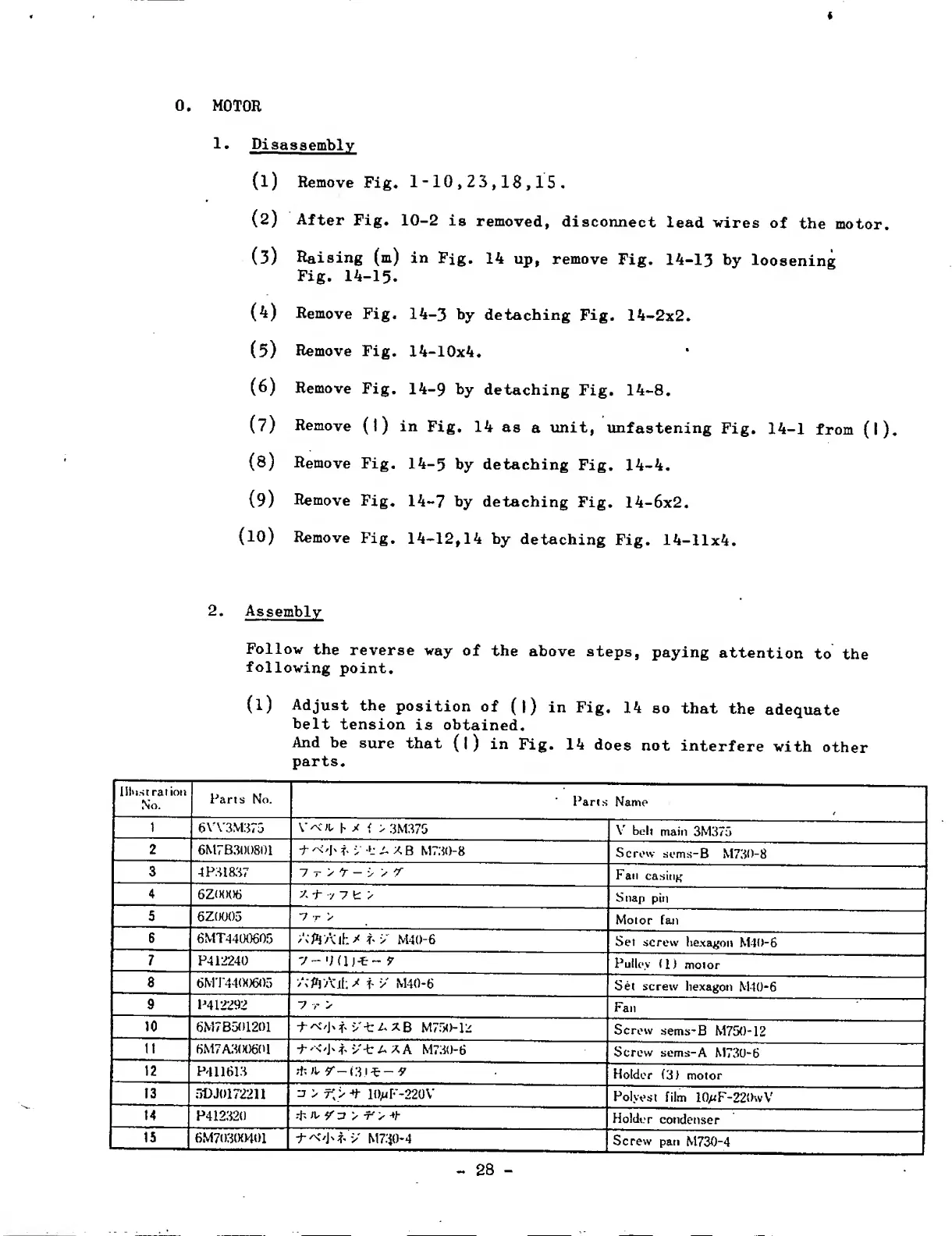

0. MOTOR
1 . Pisassemblv
(1) Remove Fig. 1-10,23,18,15.
( 2 ) After Fig. 10-2 is removed, disconnect lead wires of the motor.
(3) Raising (m) in Fig. 14 up, remove Fig. 14-13 by loosening
Fig. 14—15•
(4) Remove Fig. 14-3 by detaching Fig. 14-2x2.
(5) Remove Fig. 14-10x4.
(6) Remove Fig. 14-9 by detaching Fig. 14-8.
(7) Remove (I) in Fig. 14 as a unit, unfastening Fig. 14-1 from (I).
(8) Remove Fig. 14-5 by detaching Fig. 14-4.
(9) Remove Fig. 14-7 by detaching Fig. 14-6x2.
(10) R emove Fig. 14-12,14 by detaching Fig. 14-11x4.
2 . Assembly
Follow the reverse way of the above steps, paying attention to the
following point.
(l) Adjust the position of (|) in Fig. 14 so that the adequate
belt tension is obtained.
And be sure that (I) in Fig. 14 does not interfere with other
parts.
I iiust rat ion
No.
Farts No.
Parts Name
?
6VV3M373
M f > 3M375
2
6M7B3008U1
7-ti XB M730-8
Screw sems-B M730-8
3
4 PHI 837 7 t > 'r - > > 7
Fan casing
4
6Zm)6
Snap pin
5
6ZO005
"7 m r s
Motor fan
6
6MT4400605
AftAih X t >" M40-6
Set screw hexagon M40-6
7 P412240 V- 'MU-t- 9
Pulley (1) motor
8
6MT4400605
APiAil. x f •>' M 40-6
Set screw hexagon M40-6
9
P412292
7 r >
Fan
10
6M7B501201
■ f-*<'\' f v-tAXB M7.30-12
Screw sems-B M750-12
It
6M7A300601
-f ' < t v ■ -t u x A M730-6
Screw sems-A M73U-6
12
P411613
3; >1 y— ( 3 1 - 9
Holder (3) motor
13
r>DJOl72211
-J > t\> 10^F-220V
Pokest film 10/*F-220wV
14
P412320
-t A, 9 t a > f-' > ■ */-
Holder condenser
15
6M70300401
v M7.J0-4
Screw pan M730-4
