Elmo 16-CL - Page 35

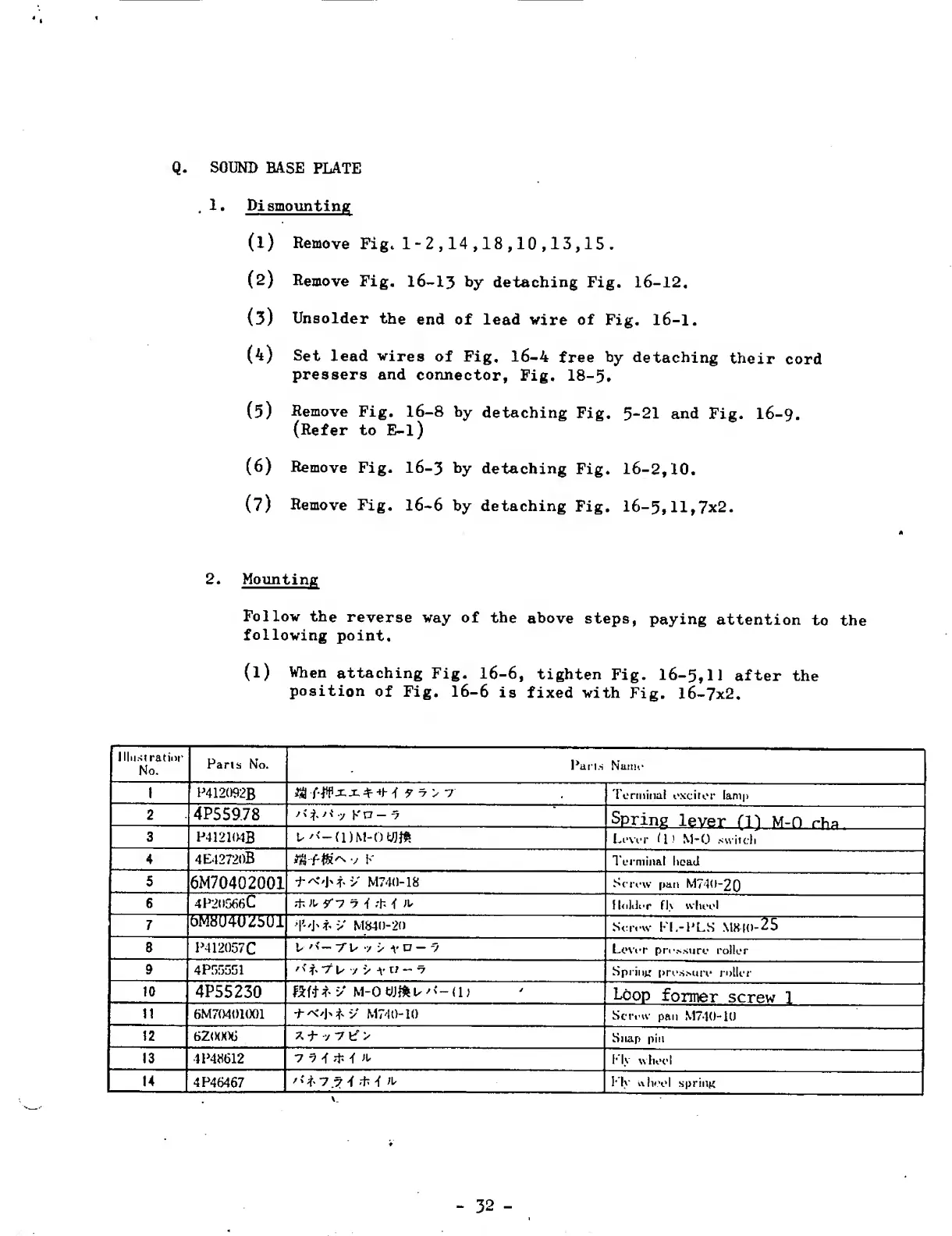

Q. SOUND BASE PLATE
, 1. Diamounting
(1) Remove Fig. 1 - 2,14,18,10,13,15 .
( 2 ) Remove Fig. 16-13 by detaching Fig. 16-12.
(3) Unsolder the end of lead wire of Fig. 16 - 1 .
(4) Set lead wires of Fig. 16-4 free by detaching their cord
pressers and connector. Fig. 18-5.
(5) Remove Fig. 16-8 by detaching Fig. 5-21 and Fig. 16-9.
(Refer to E-l)
(6) Remove Fig. 16-3 by detaching Fig. 16-2,10.
(7) Remove Fig. 16-6 by detaching Fig. l6-5»11,7x2.
2. Mounting
Follow the reverse way of the above steps, paying attention to the
following point.
(l) When attaching Fig. 16-6, tighten Fig. 16-5,11 after the
position of Fig. 16-6 is fixed with Fig. 16-7x2.
Illustration
No.
Pans No.
Paris Name
1
P412092B
Terminal exciter lamp
2
4PS5978
Sprine lever fl) M-n rh*
3
P412104B
Lever ( 1 ' M-0 switch
4
4E42720B
m f v k
Terminal head
5
6M70402001
v M740-18
Screw pan M740-2Q
6
4F20566C
-tJi' y 7 7 -f ,'h 4
Holder fly wheel
7
iiiliiiiSfi&ifei
‘M't > M84n-2o
Screw FL-PLS MRMt-25
8
P412057C
V 7U / y v □ — v
Lever pressure roller
9
4Pf)5551
Spring; pressure roller
10
4P55230
Loop former screw 1
11
6M70401001
M740-10
--as—*---
Screw pan M740-1U
12 6Z000G
7 j- / 7 \£ >
Snap pin
13 4P48612
7 v 4 + 4 R-
1* ly wheel
14
4P46467
'' t 7 y 4 4 ft* My wheel spring
