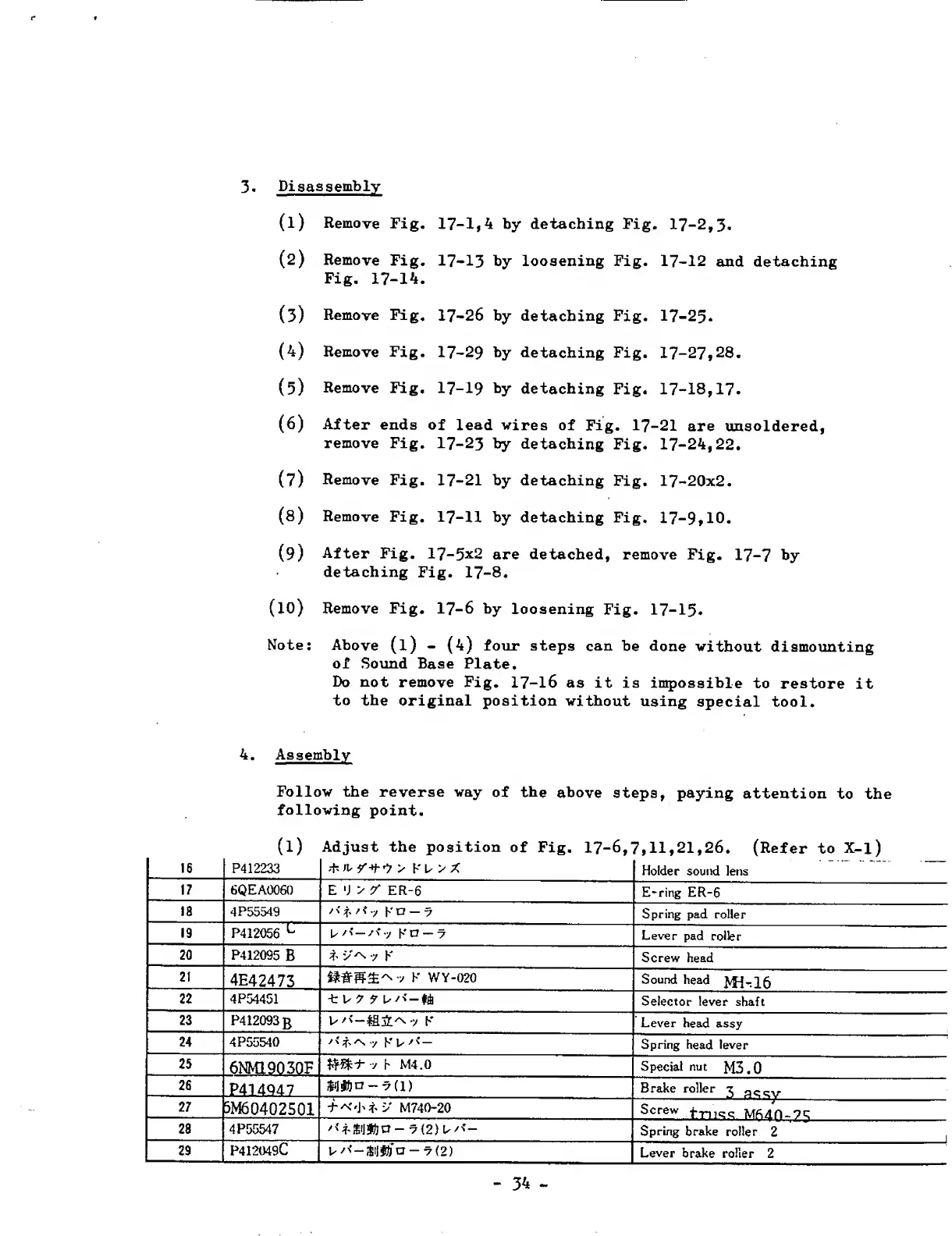

3. Disassembly
(1)
( 2 )
(3)
(4)
(5)
( 6 )
(7)
( 8 )
(9)
( 1 0 )
Remove Fig. 17-1,4 by detaching Fig. 17-2,3.
Remove Fig. 17-13 by loosening Fig. 17-12 and detaching
Fig. 17-14.
Remove Fig. 17-26 by detaching Fig. 17-25.
Remove Fig. 17-29 by detaching Fig. 17-27,28.
Remove Fig. 17-19 by detaching Fig. 17-18,17.
After ends of lead vires of Fig. 17-21 are unsoldered,
remove Fig. 17-23 by detaching Fig. 17-24,22.
Remove Fig. 17-21 by detaching Fig. 17-20x2.
Remove Fig. 17-11 by detaching Fig. 17-9,10.
After Fig. 17-5x2 are detached, remove Fig. 17-7 by
detaching Fig. 17-8.
Remove Fig. 17-6 by loosening Fig. 17-15*
Note: Above (l) - (4) four steps can be done without dismounting
of Sound Base Plate.
Do not remove Fig. 17-16 as it is impossible to restore it
to the original position without using special tool.
4. Assembly
Follow the reverse way of the above steps, paying attention to the
following point.
(i)
Adjust the position of Fig. 17-6,'
7,11,21,26. (Refer to X-l)
16 P412233 KL > X
Holder sound lens
17
6QEA0060 E U > X ER -6
E-ring ER -6
18 4P55549
Spring pad roller
19
Lever pad roller
20
P412095 B * v'N y K
Screw head
21
4E42473
K WY-020
Sound head J/H-lft
22 4P54451 ■ t u y 5
Selector lever shaft
23 P412093 b
Lever head assy
24 4P55540
t * / N > /
Spring head lever
25 Vtfri- -j h M4.0
Special nut M3.0
26
P414947
Mio-5(l)
Brake roller 5
27
5M60402501
M740-20
Screw
28
4P55547
y[2) u/*-
Spring brake roller 2
29
P412049C
llll 1 1 11 llll^— —
Lever brake roller 2
