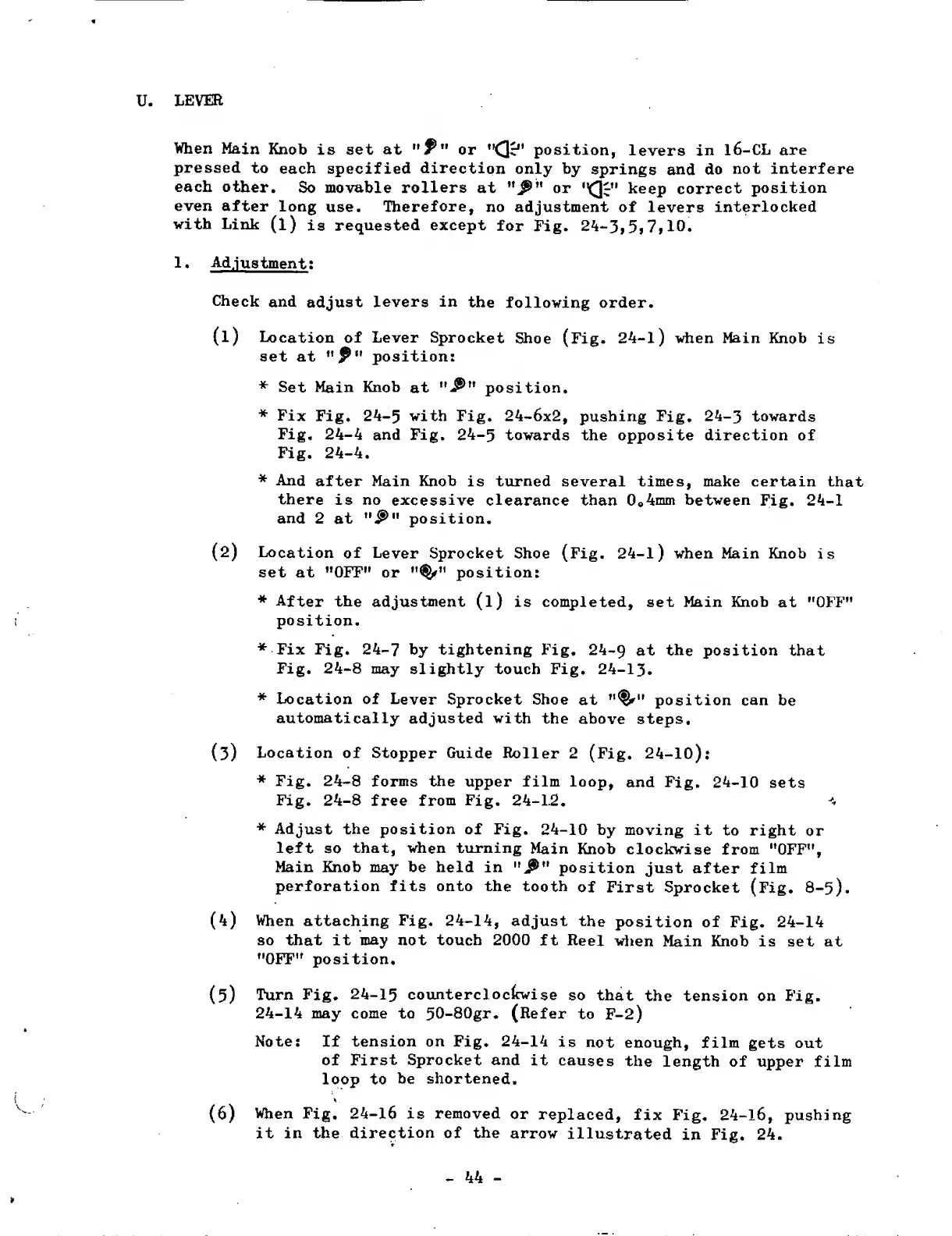

U. LEVER
When Main Knob is set at n P u or position, levers in 16-CL are
pressed to each specified direction only by springs and do not interfere
each other. So movable rollers at n f i' n or keep correct position
even after long use. Therefore, no adjustment of levers interlocked
with Link (l) is requested except for Fig. 24-3>5j7»10.
Adjustment:
Check and adjust levers in the following order.
(1) Location of Lever Sprocket Shoe (Fig. 24-1) when Main Knob is
set at " position:
* Set Main Knob at position.
* Fix Fig. 24-5 with Fig. 24-6x2, pushing Fig. 24-3 towards
Fig, 24-4 and Fig. 24-5 towards the opposite direction of
Fig. 24-4.
* And after Main Knob is turned several times, make certain that
there is no excessive clearance than 0„4mm between Fig. 24-1
and 2 at position.
( 2 ) Location of Lever Sprocket Shoe (Fig. 24-1) when Main Knob is
set at ’’OFF” or position:
* After the adjustment (l) is completed, set Main Knob at "OFF"
position.
* Fix Fig. 24-7 by tightening Fig. 24-9 at the position that
Fig. 24-8 may slightly touch Fig. 24-13*
* Location of Lever Sprocket Shoe at position can be
automatically adjusted with the above steps.
( 3 ) Location of Stopper Guide Roller 2 (Fig. 24-10):
* Fig. 24-8 forms the upper film loop, and Fig. 24-10 sets
Fig. 24-8 free from Fig. 24-1.2.
* Adjust the position of Fig. 24-10 by moving it to right or
left so that, when turning Main Knob clockwise from "OFF",
Main Knob may be held in position just after film
perforation fits onto the tooth of First Sprocket (Fig. 8-5).
(4) When attaching Fig. 24-14, adjust the position of Fig. 24-14
so that it may not touch 2000 ft Reel when Main Knob is set at
"OFF" position.
( 5 ) Turn Fig. 24-15 counterclocfcwise so that the tension on Fig.
24-14 may come to 50-80gr. (Refer to F-2)
Note: If tension on Fig. 24-14 is not enough, film gets out
of First Sprocket and it causes the length of upper film
loop to be shortened.
x.
(6) When Fig. 24-16 is removed or replaced, fix Fig. 24-16, pushing
it in the direction of the arrow illustrated in Fig. 24.
