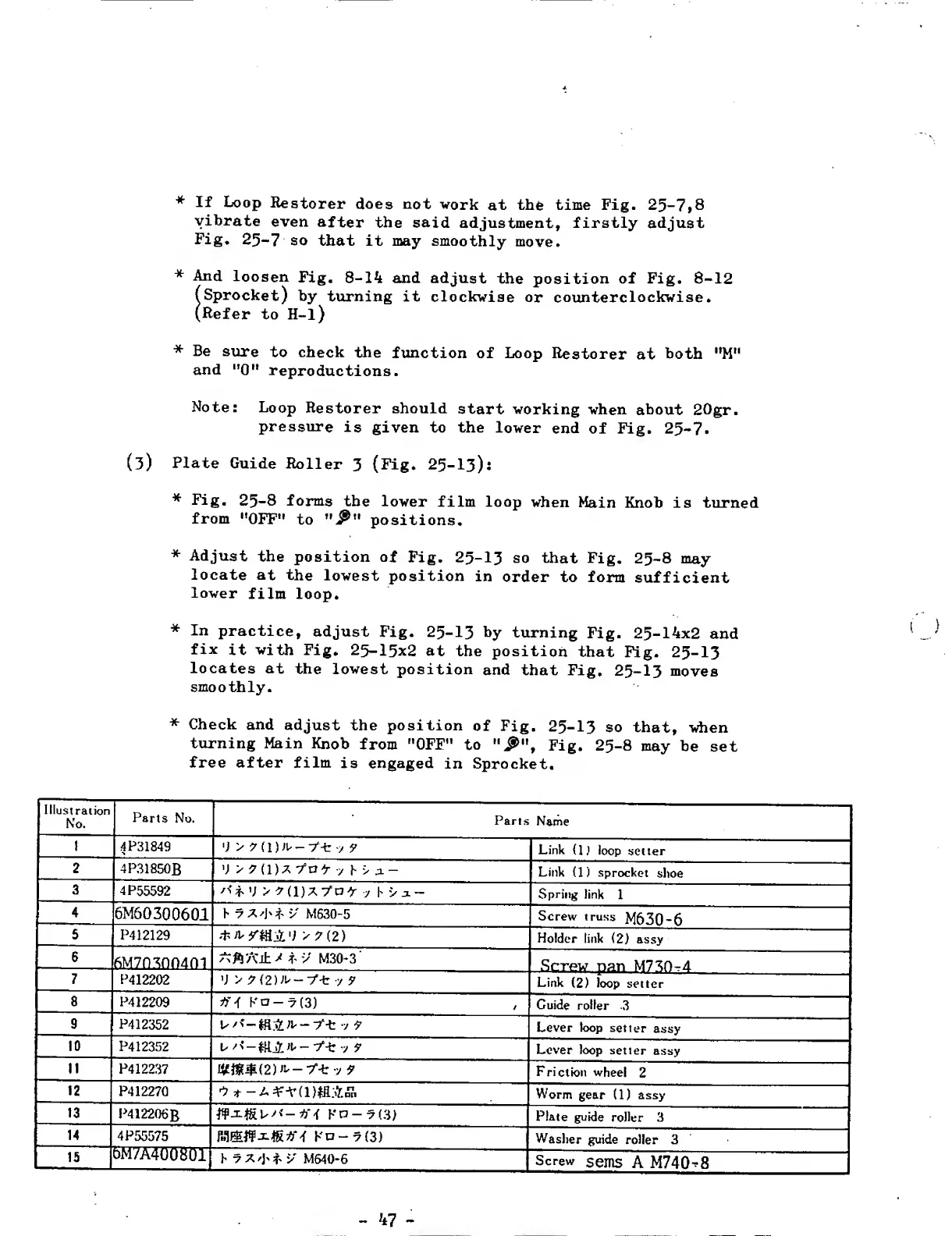

* If Loop Restorer does not work at the time Fig. 25-7>8
vibrate even after the said adjustment, firstly adjust
Fig. 25-7 so that it may smoothly move.
* And loosen Fig. 8-14 and adjust the position of Fig. 8-12
(Sprocket) by turning it clockwise or counterclockwise.
(Refer to H-l)
* Be sure to check the function of Loop Restorer at both "M"
and H 0 M reproductions.
Note: Loop Restorer should start working when about 20gr.
pressure is given to the lower end of Fig. 25-7.
(3) Plate Guide Roller 3 (Fig. 25-13):
* Fig. 25-8 forms the lower film loop when Main Knob is turned
from lf OFF u to positions.
* Adjust the position of Fig. 25-13 so that Fig. 25-8 may
locate at the lowest position in order to form sufficient
lower film loop.
* In practice, adjust Fig. 25-13 by turning Fig. 25-14x2 and
fix it with Fig. 25-15x2 at the position that Fig. 25-13
locates at the lowest position and that Fig, 25-13 moves
smoothly.
* Check and adjust the position of Fig. 25-13 so that, when
turning Main Knob from "OFF" to M F ig. 25-8 may be set
free after film is engaged in Sprocket.
illustration
No.
Parts No.
Parts Name
1
4P31849
M > y (1) JU - -f-t v 9
Link (1) loop setter
2
4P31850B
') > 7(1)* 707 y h > 3 . -
Link (1) sprocket shoe
3
4 P55592 'J > 9(1)7, y
Spring link 1
4
6M60300601
h 7 Z'h* v M630-5
Screw truss M63Q-6
5
P412129
>7(2)
Holder link (2) assy
6
Aft nit > t v M30-3
Screw pan M7 30^4
7
P412202
'J > t 7 9
Link (2) loop setter
8
P412209
HA Kd-7(3)
Guide roller 3
9
Hp412352
Lever loop setter assy
10
P412352
Lever loop setter assy
It
P412237
#*|*(2)Jt-7 , -t 7 9
Friction wheel 2
12
P41227Q
<9
Worm gear (1) assy
13
P412206B
Plate guide roller 3
14
4P55575
Ko — -7(3)
Washer guide roller 3
15
UttiKtiUl
b 7 9 d't v M640-6
Screw sems A M740^8
