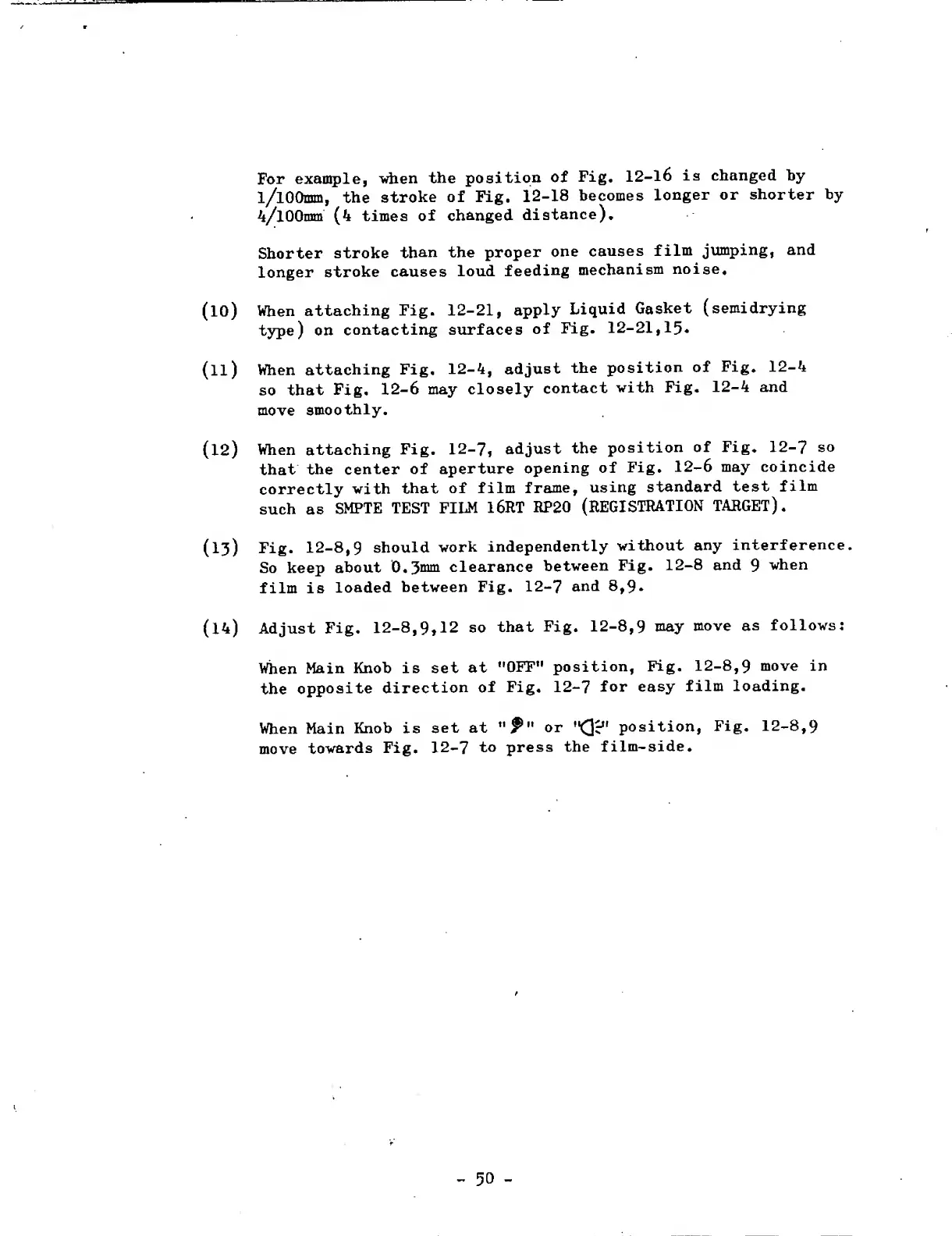

For example, when the position of Fig. 12-1 6 is changed by
l/lOOmm, the stroke of Fig. 12-18 becomes longer or shorter by
4/l00mm (4 times of changed distance).
Shorter stroke than the proper one causes film jumping, and
longer stroke causes loud feeding mechanism noise.
When attaching Fig. 12-21, apply Liquid Gasket (semidrying
type) on contacting surfaces of Fig. 12-21,15*
When attaching Fig. 12-4, adjust the position of Fig. 12-4
so that Fig. 12-6 may closely contact with Fig. 12-4 and
move smoothly.
When attaching Fig. 12-7, adjust the position of Fig, 12-7 so
that the center of aperture opening of Fig. 12-6 may coincide
correctly with that of film frame, using standard test film
such as SMPTE TEST FILM 16RT RP20 (REGISTRATION TARGET).
Fig. 12-8,9 should work independently without any interference.
So keep about 0.3mm clearance between Fig. 12-8 and 9 when
film is loaded between Fig. 12-7 and 8,9*
Adjust Fig. 12-8,9,12 so that Fig. 12-8,9 may move as follows:
When Main Knob is set at "OFF” position, Fig. 12-8,9 move in
the opposite direction of Fig. 12-7 for easy film loading.
When Main Knob is set at " ^" or position, Fig. 12-8,9
move towards Fig. 12-7 to press the film-side.
