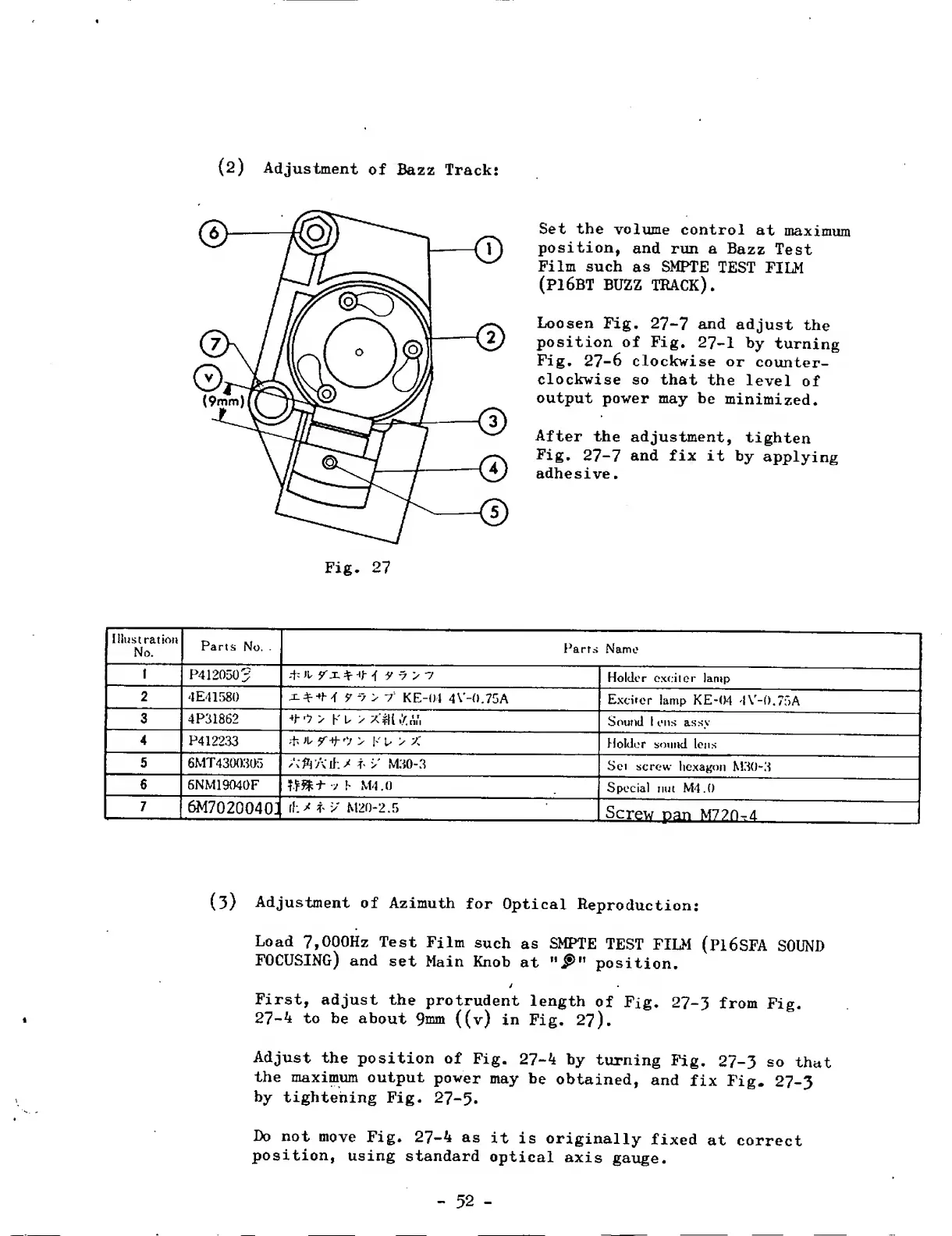

( 2 ) Adjustment of Bazz Track:
Set the volume control at maximum
position, and run a Bazz Test
Film such as SMPTE TEST FILM
(P16BT BUZZ TRACK).
Loosen Fig. 27-7 and adjust the
position of Fig, 27-1 by turning
Fig. 27-6 clockwise or counter¬
clockwise so that the level of
output power may be minimized.
After the adjustment, tighten
Fig. 27-7 and fix it by applying
adhesive.
Fig. 27
Illustration
No.
Parts No.
Parts Name
t
P412050 5 + >V 9'J~ * -»h 4 9 V > 7
Holder exciter lamp
2
4E41580
9 v > 7‘ KE-01 4V-0.75A
Exciter lamp KE-04 4V-0.75A
3 4P31862
> ku > xaivOV,
Sound l ons assy
4
P412233
+ >v > p u > X
Holder sound lens
5
6MT4300305
A Pi /\ ih / t > M30-3
Set screw hexagon M30-3
6
6NM19040F v b M4.0
Special nut M4.0
7
if-.J* M20-2.5
Screw pan M7?fUd_
(3) Adjustment of Azimuth for Optical Reproduction;
Load 7,000Hz Test Film such as SMPTE TEST FILM (P16SFA SOUND
FOCUSING) and set Main Knob at M j S>" position.
i
First, adjust the protrudent length of Fig. 27-3 from Fig.
27-4 to be about 9mm ((v) in Fig. 27).
Adjust the position of Fig. 27-4 by turning Fig. 27-3 so that
the maximum output power may be obtained, and fix Fig. 27-3
by tightening Fig. 27-5*
Do not move Fig. 27-4 as it is originally fixed at correct
position, using standard optical axis gauge.
