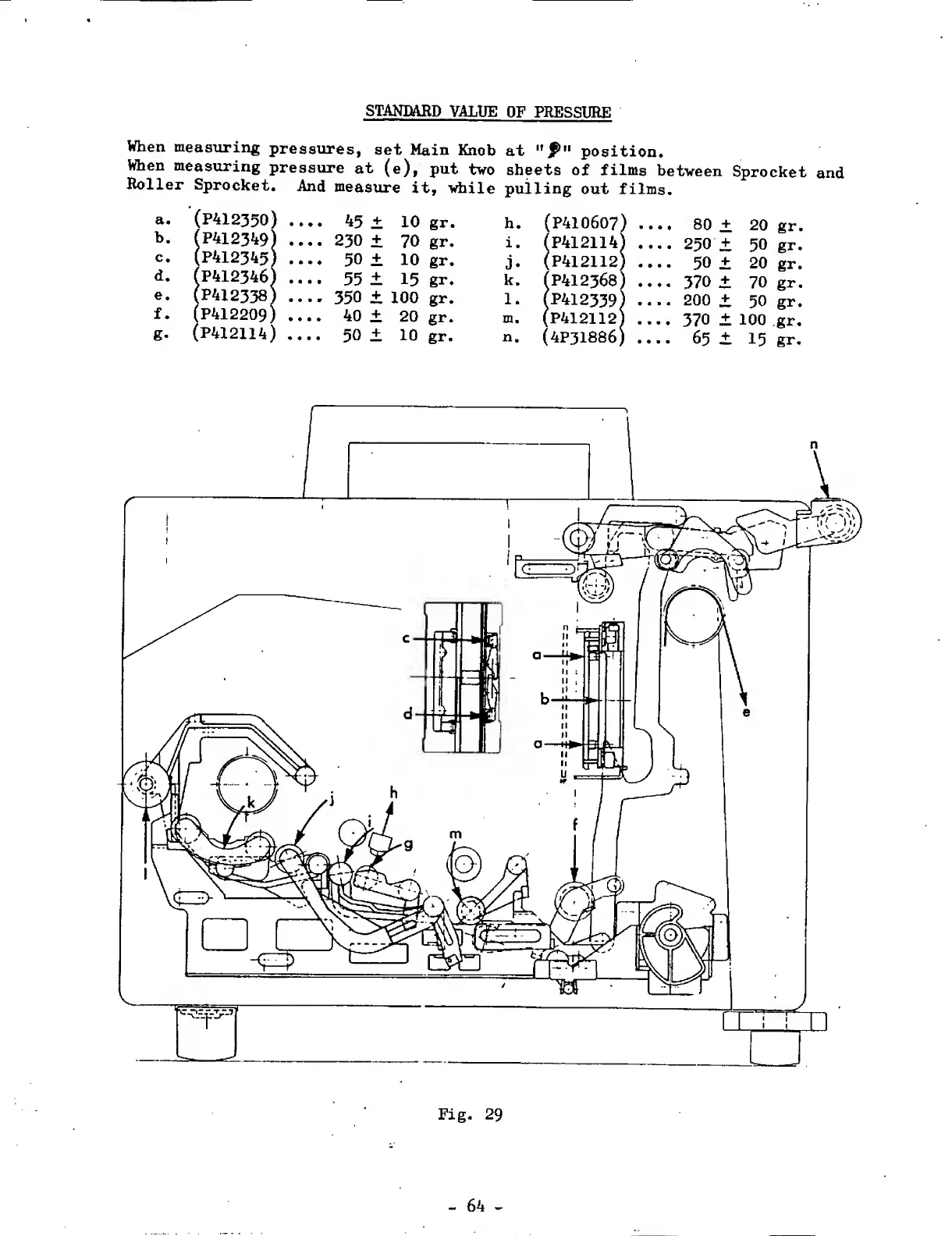

STANDARD VALUE OF PRESSURE
When measuring pressures, set Main Knob at "position.
When measuring pressure at (e), put two sheets of films between Sprocket and
Roller Sprocket. And measure it, while pulling out films.
a.
>412350)
b.
fP412349)
c.
P412345)
d.
P412346)
e. 1
>412338)
f.
>412209)
g. 1
>412114)
♦ • . 45 ± 10 gr.
... 230 + 70 gr.
... 50 ± 10 gr.
... 55+15 gr.
... 350 + 100 gr.
... 40 ± 20 gr.
... 50 +. 10 gr.
h. (P410607) .
i. (P412114) .
j. (P412112) .
k. >412368) .
l. >412339) .
m. >412112)
n. (4P31886)
80 +
20
gr.
250 +
50
gr.
50 ±
20
gr.
370 +
70
gr.
200 ±
50
gr.
370 +
100
gr.
65 ±
15
gr.
r
