Chapter 3 – Mounting
General Mounting Information
The OSD text can be rotated through the OSD menu to better suit your mounting orientation.
The holes located on the sides and top of the touchmonitor case are for ventilation. Do not
block, cover, or insert anything inside the ventilation slots.

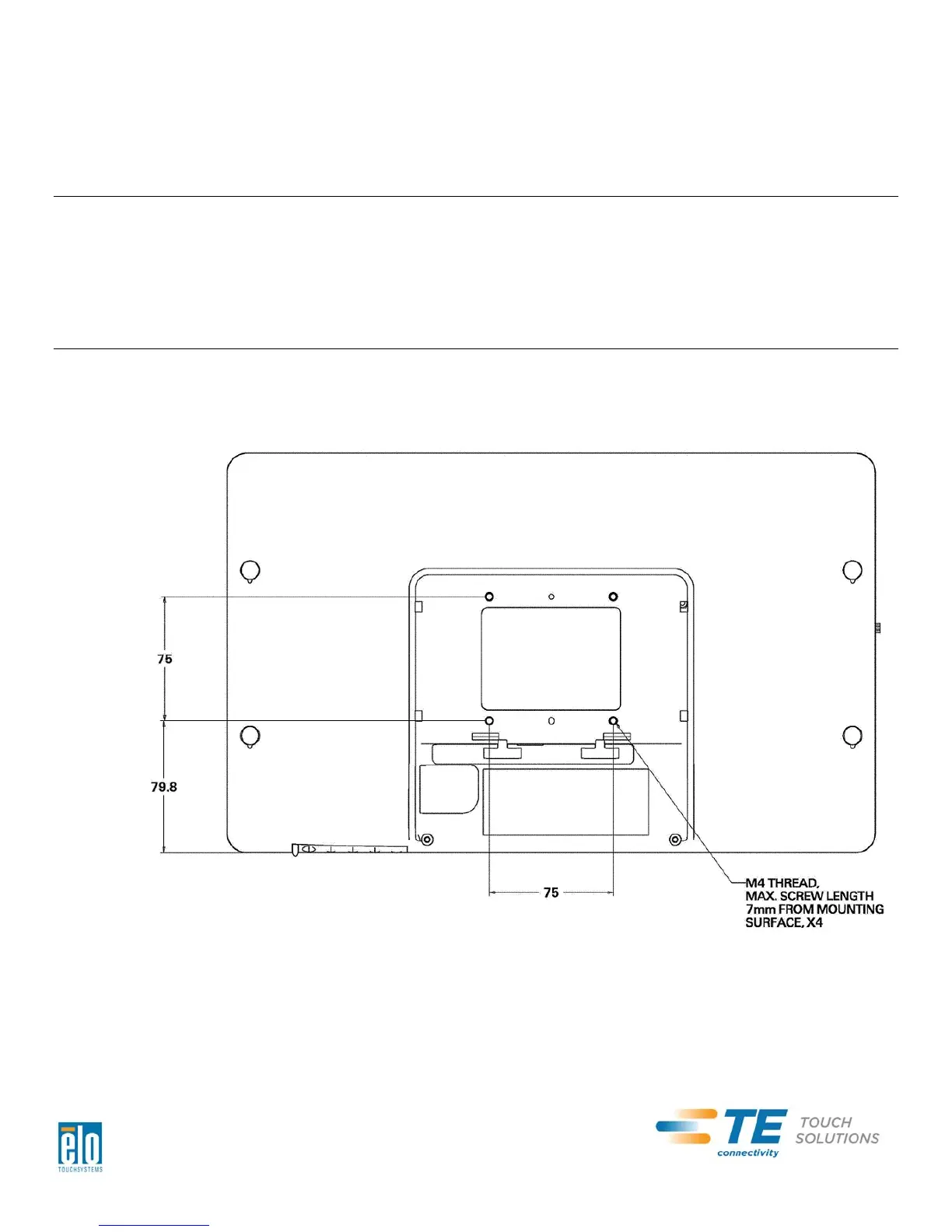

Rear VESA Mount
A four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor.
Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA
FDMI-compliant counting is coded: VESA MIS-B, 75, C
User Manual – 1509L
