Elo TouchSystems 3239L User Guide 9
Interface Connection
To connect your touchmonitor to your computer:
1 Connect the power cable to the rear panel of the monitor and the
other end to the power outlet.
2 Connect either the USB cable OR the serial cable to the rear
panel of the monitor. Note: Do not use both. Connect the other end to
your computer.
3 Connect the video cable and/or the DVI-D cable to the rear panel
of the monitor. Tighten by turning the two thumb screws clockwise to
ensure proper grounding. Connect the other end to your computer.
4 Press the power button on the rear panel to turn the monitor on.
5 Connect the OSD control box to the monitor.

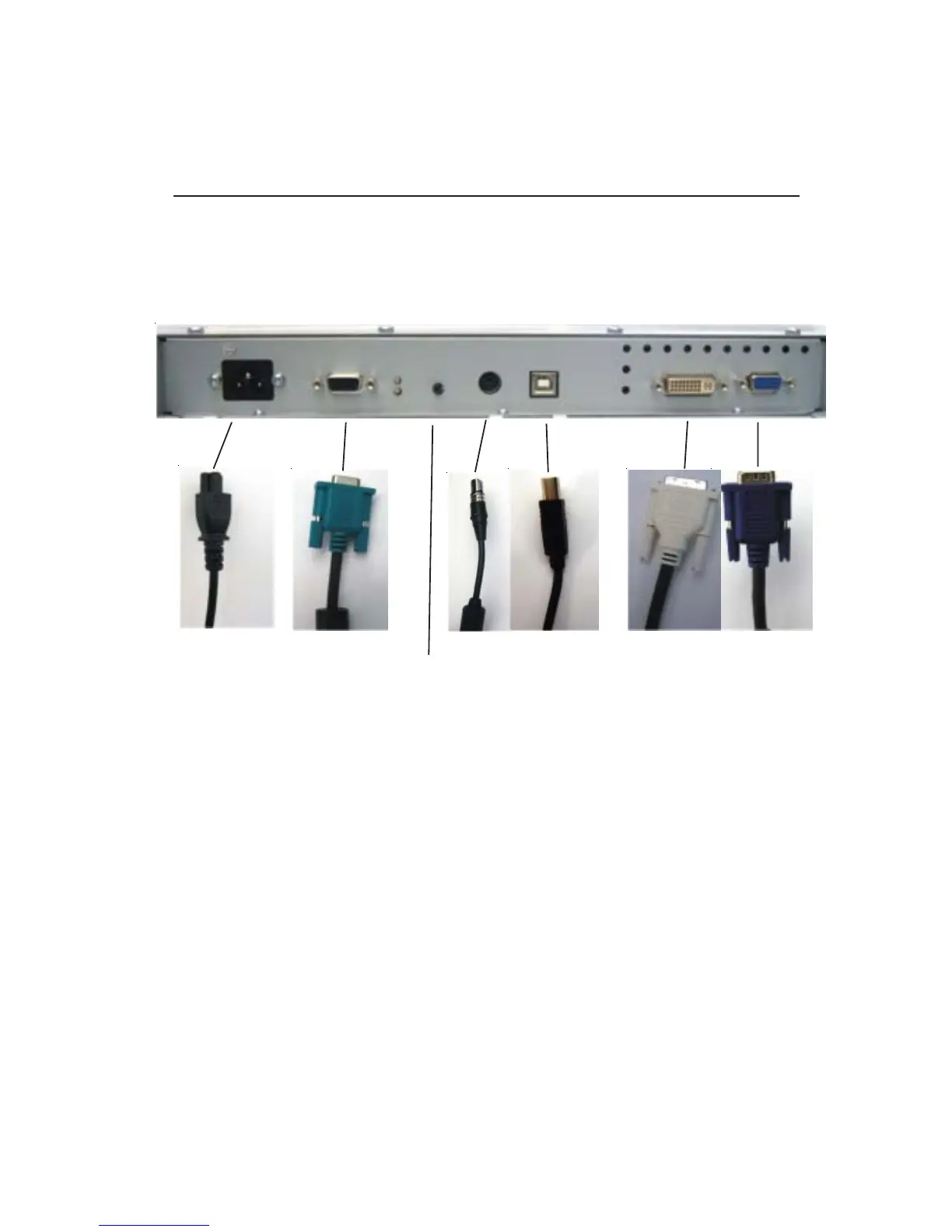

Connector Panel on Rear side of Monitor
Video Cable
OSD box
connector
Power Cable
Power
Button
USB cable
DVI-D cable (not
included with
3239L-xxEx models)
Serial Cable (not
included with 3239L-
Axxx models)
