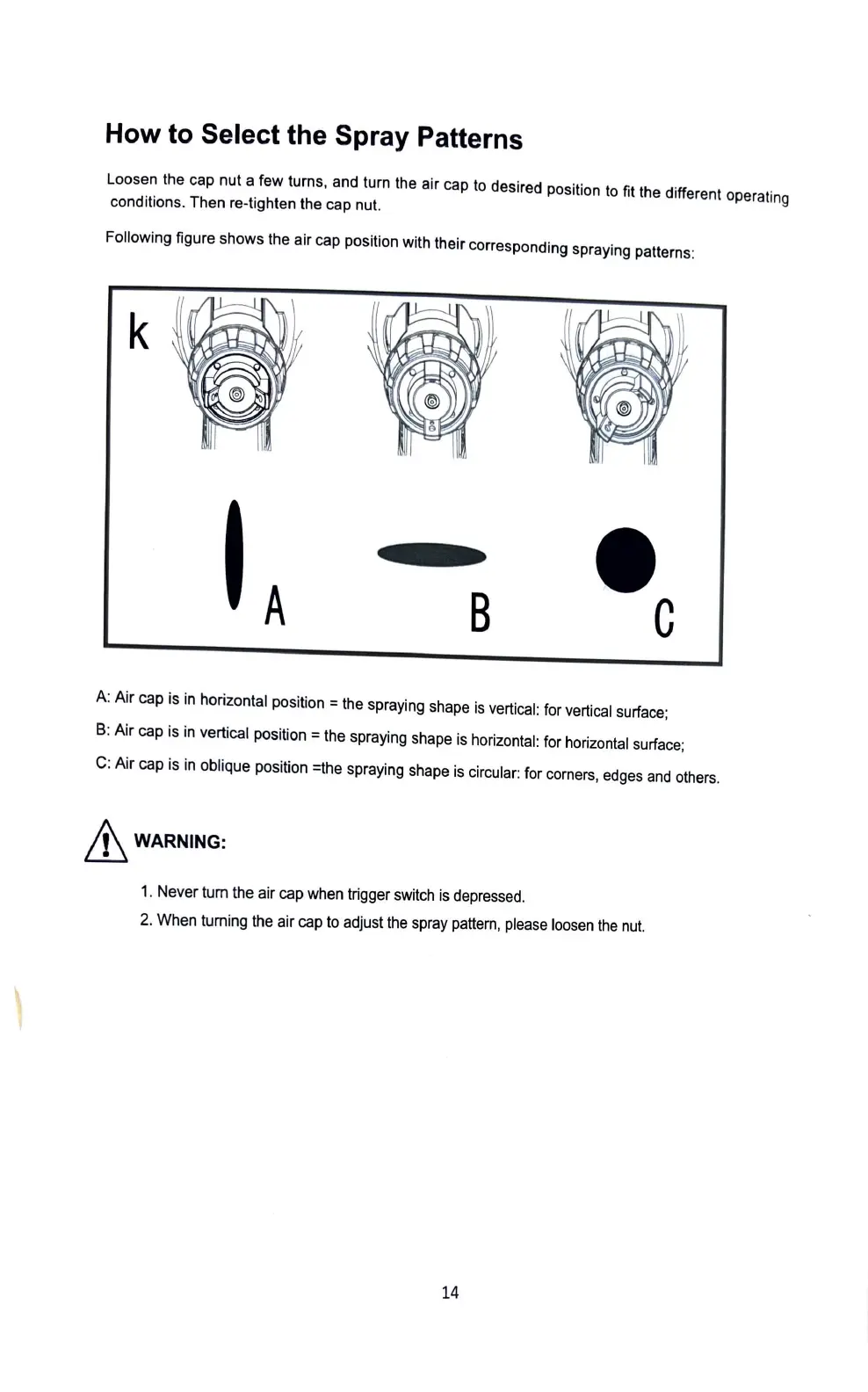

How to Select the Spray Patterns
Loosen the cap
nut
a few turns, and turn the
air
cap to desired position to
fit
the different operating
conditions. Then re-tighten the cap nut.
Following figure shows the air cap position with their corresponding spraying patterns:
k
A
C
A: Air
cap
is in horizontal position = the spraying shape is vertical: for vertical surface;
8 : Air cap is in vertical position = the spraying shape is horizontal: for horizontal surface;
C: Air cap is in oblique position =the spraying shape is circular: for corners, edges and others.
&
WARNING:
1. Never tum the air cap when trigger switch is depressed.
2. When turning the air cap to adjust the spray pattern, please loosen the nut.
14
