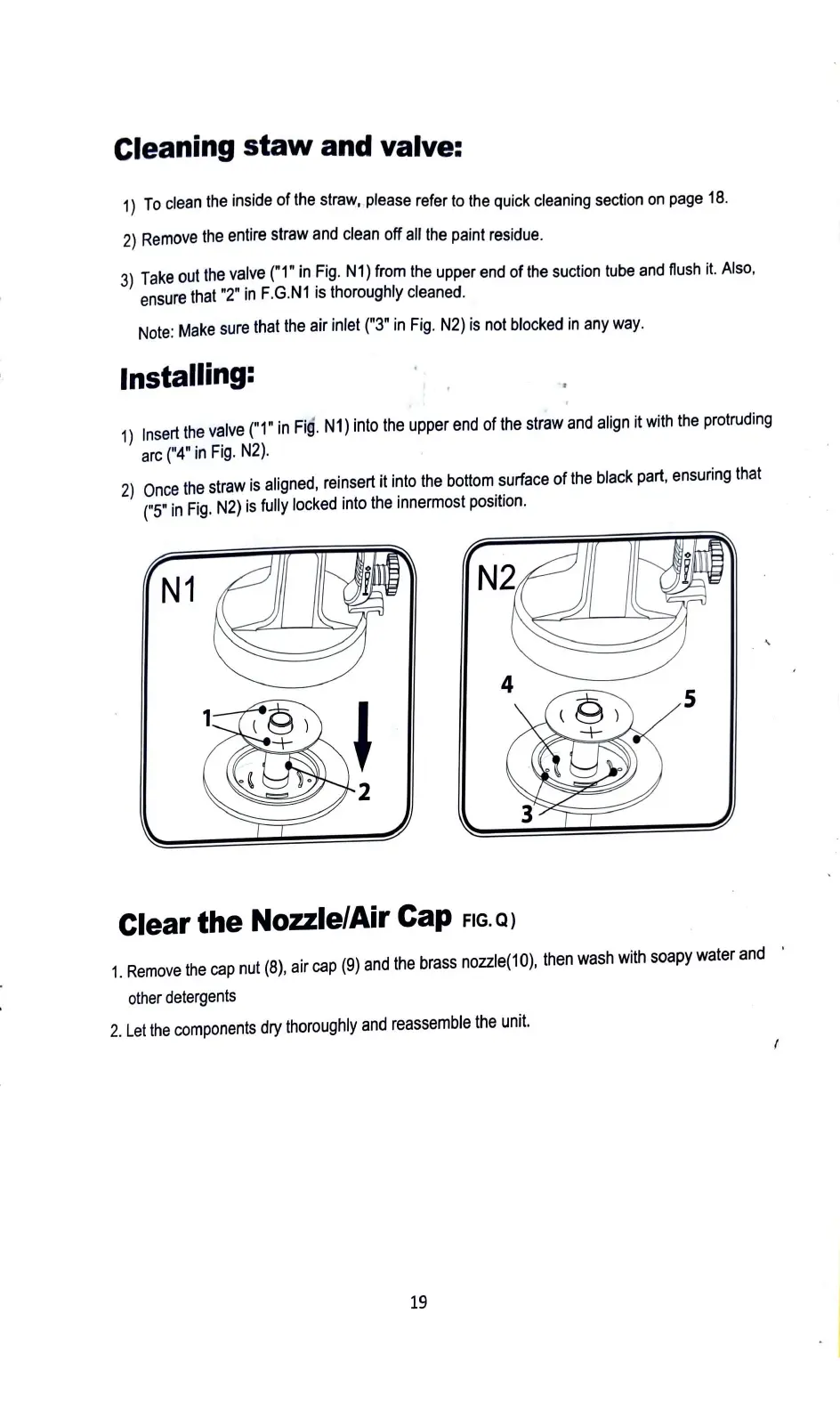

Cleaning
staw
and valve:
1)
To
clean
the
inside
of
the
straw,
please
refer
to
the
quick
cleaning
section
on
page
18
.
2)
Remove
the
entire
straw
and
clean
off
all
the
paint
residue
.
3)
Take
out
the
valve
("1"
in
Fig.
N1)
from
the
upper
end
of
the
suction
tube
and
flush
it.
Also
,
ensure
that
"2"
in
F.G
.
N1
is
thoroughly
cleaned
.
Note:
Make
sure
that
the
air
inlet
("3"
in
Fig.
N2)
is
not
blocked
in
any
way
.
Installing:
1)
Insert
the
valve
("1"
in
Fig.
N
1)
into
the
upper
end
of
the
straw
and
align
it
with
the
protruding
arc
("4"
in
Fig
.
N2)
.
2)
Once
the
straw
is
aligned,
reinsert
it
into
the
bottom
surface
of
the
black
part
,
ensuring
that
("5"
in
Fig
.
N2)
is
fully
locked
into
the
innermost
position.
N1
Clear the Nozzle/Air Cap
FIG
.
a)
1.
Remove
the
cap
nut
(8),
air
cap
(9)
and
the
brass
nozzle(10),
then
wash
with
soapy
water
and
other
detergents
2.
Let
the
components
dry
thoroughly
and
reassemble
the
unit.
19
