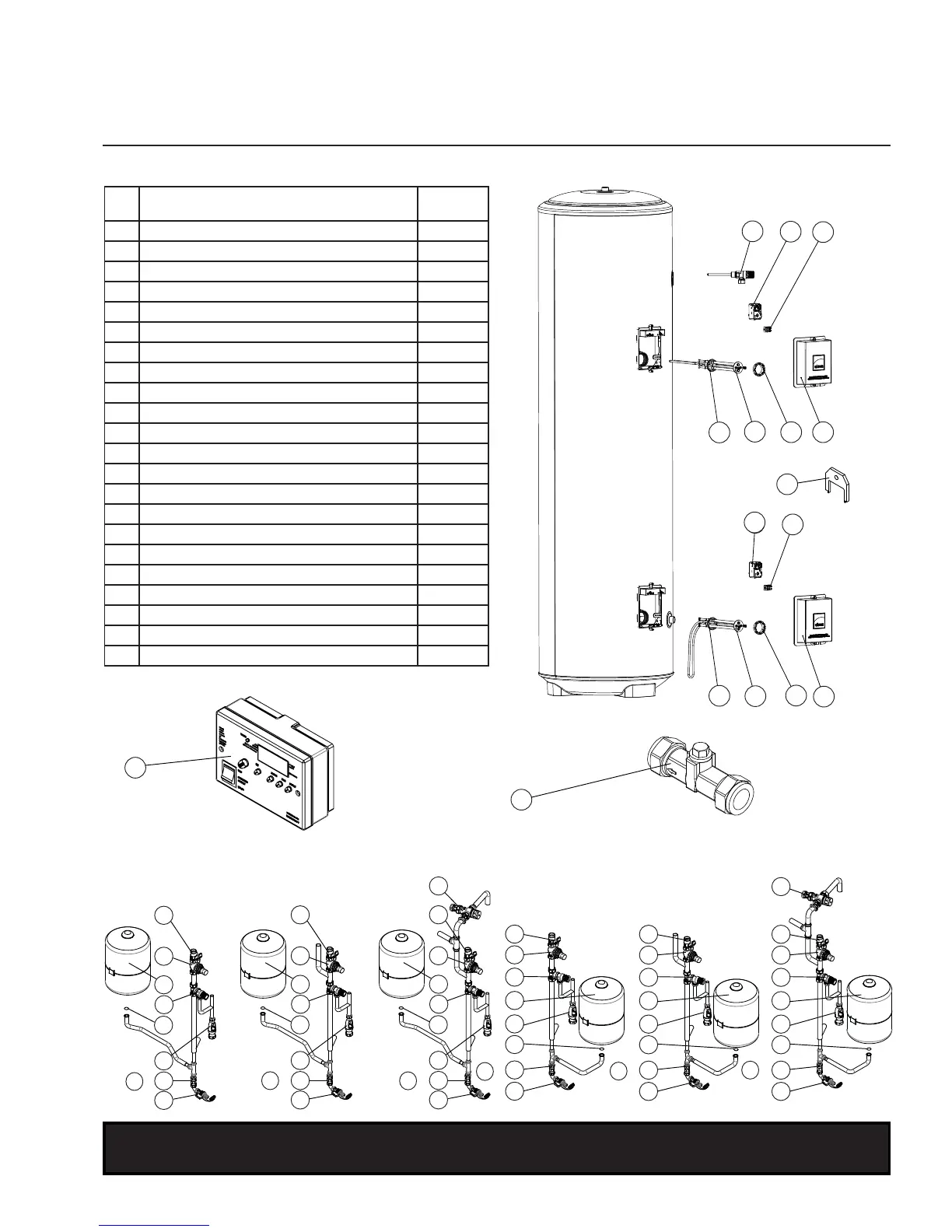

Elson Zircon - Zircon Spare Parts and Components; Zircon Cylinder Diagram; Zircon Cold Water Control Packs

Page 7
14 9 12
625 13
5 1 6 13
9 12
Item Description Part
Number
1 Immersion heater (bent) 95 606 984
2 Immersion heater (straight) 95 606 986
3 Immersion heater gasket 95 611 822
4 Immersion heater backnut 95 607 869
5 Immersion heater key spanner 95 607 861
6 Direct thermostat & thermal cut-out 95 612 717
7 3 Way terminal block 95 607 932
8 Terminal cover 95 614 095
9 Temperature / pressure relief valve 95 605 810
10a Expansion vessel - 12 litre (120 & 150 litre models) 95 607 863
10b Expansion vessel - 18 litre (170 & 210 litre models) 95 607 864
10c Expansion vessel - 24 litre (250 & 300 litre models) 95 607 612
11 Expansion vessel joint 38 205 094
12 Thermostatic mixing valve assembly 90 002 460
13 1/4 turn isolation valve (stop cock) 95 605 885
14 Pressure reducing valve (set to 3.5 bar) 95 605 903
15 Expansion relief valve assembly (set at 6 bar) 40 405 011
16 Tundish 15mm x 22mm 95 605 838
17 15mm single check valve 95 607 987
18 1/4 turn isolation / drain valve 95 605 051
19 Horstmann electronic 7 controller 24 500 002
20 15mm double check valve 40 995 096
EBP Packages Manual
Zircon Direct EBP Packages Spare Parts
Zircon Wide
Cold Water Pack 1
Zircon Wide
Cold Water Pack 2
Zircon Wide
Cold Water Pack 3
Zircon Deep
Cold Water Pack 1
Zircon Deep
Cold Water Pack 2
Zircon Deep
Cold Water Pack 3
18
17
16
11
15
10
14
13
12
1
2
3
3
4
4
6
6
7
7
8
8
9
18
17
16
11
15
10
14
13
18
17
16
11
15
10
14
13
12
13
14
15
11
10
16
18
17
13
14
15
11
10
16
18
17
13
14
15
11
10
16
18
17
Zircon Cold Water Control Packs
Horstmann Electronic 7 Controller
19
Spare Part Numbers Zircon Directly Heated Unvented Cylinder
Please note that on EBP Packages with a Zircon direct cylinder, this spare parts list replaces
the spare parts list in the Zircon manual.
5
20
Double Check Valve
20
or or
or
20
20
or
20
20
or
or
20
