5

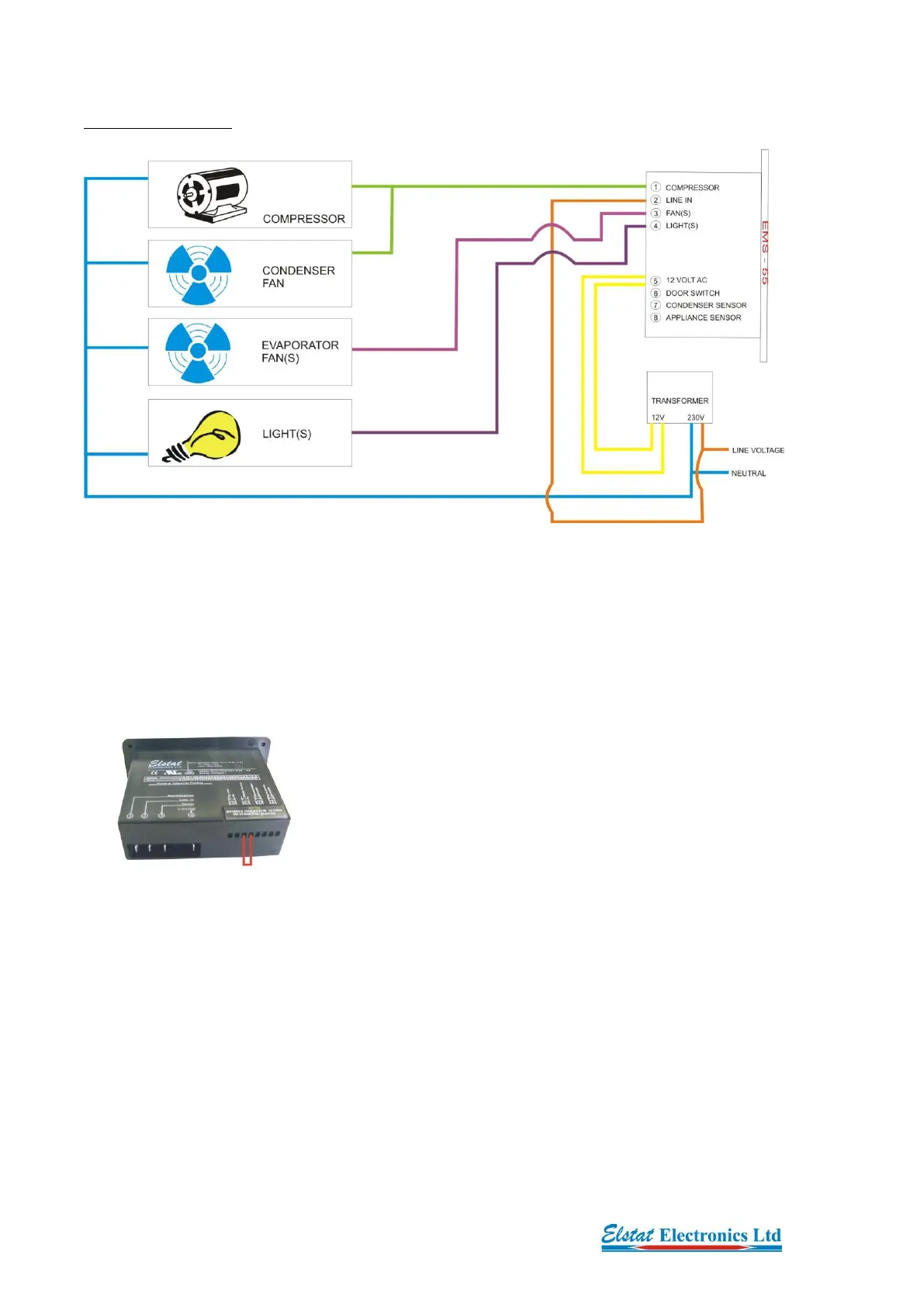

WIRING DIAGRAM
In addition to the above wiring diagram, a door switch should also be wired into the system. This
connection must go directly from the door switch to the terminals on the EMS (see printed label on the
control housing).
If a door switch is not used (not recommended) then a wire loop must be fitted to the door switch
terminals on the EMS (see below).
