ELT Sensor CD-300 - Jumper Functionality and Wiring; Jumper Function Descriptions

ELT SENSOR Corp.
3 / 5

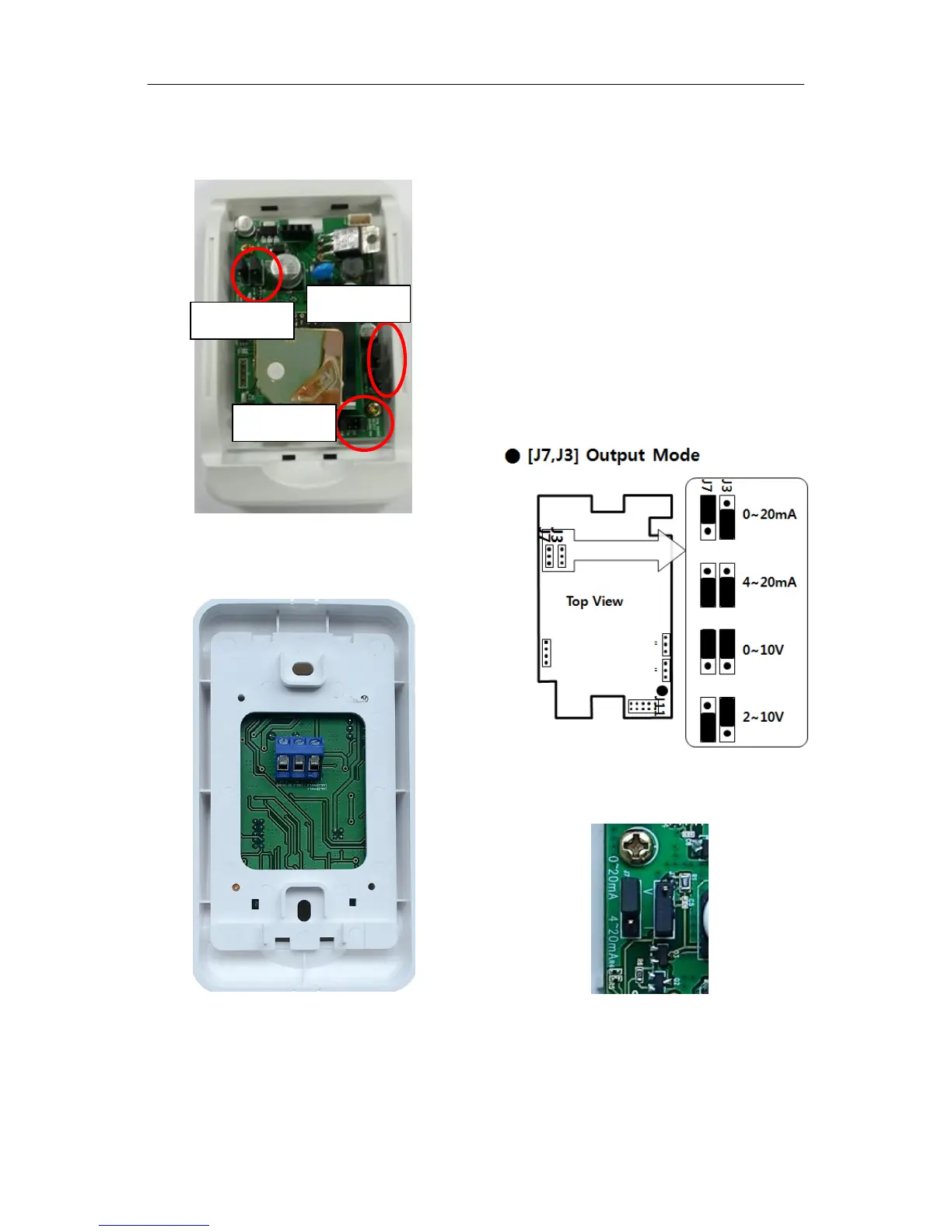

Front Inside View
Rear View
Jumper Function Descriptions
■ Jumper A (J7, J3) group : Voltage,
Current output and range selection.
V : Analog Voltage output
I : Current output
0~20mA : 0~20mA output @ Current.
0~10V output @ Voltage
4~20mA : 4~20mA output @ Current.
2~10V output @ Voltage.
Example setting :
 Current output and 0~ 20mA output
Jumper : A
Jumper : B
Jumper : C
