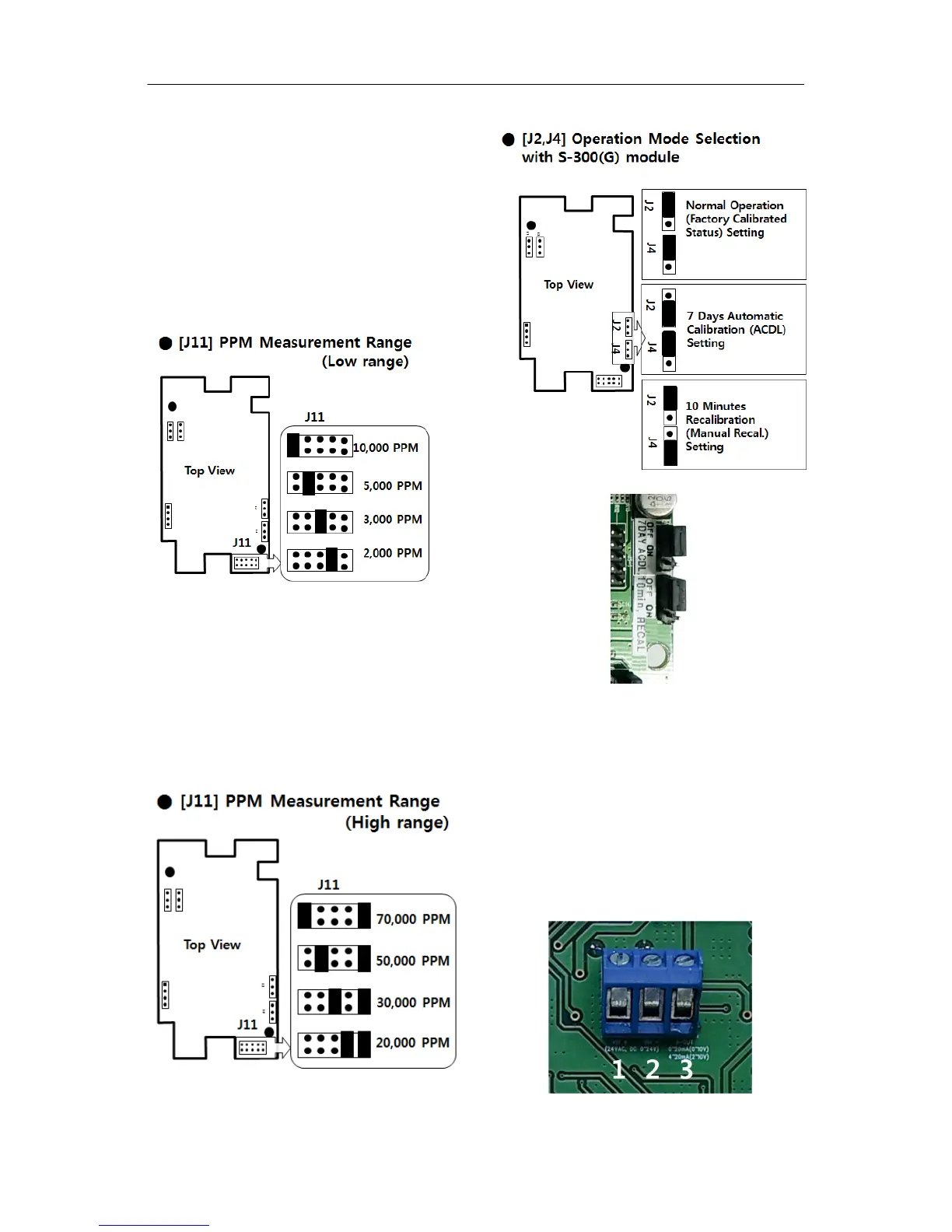

■ Jumper B(J11) group : CO2 Measurement
range selection.
10K ppm : 0 ~ 10,000ppm CO2
5K ppm : 0 ~ 5,000ppm CO2
3K ppm : 0 ~ 3,000ppm CO2
2K ppm : 0 ~ 2,000ppm CO2
■ Jumper B(J11) group for High CO2
Measurement range selection.
70K ppm : 0 ~ 70,000ppm CO2
50K ppm : 0 ~ 50,000ppm CO2
30K ppm : 0 ~ 30,000ppm CO2
20K ppm : 0 ~ 20,000ppm CO2
Example setting :
 Weekly Auto-calibration or 10 minutes
Manual-Calibration setting is available
Wiring Method
1. VIN+: 24VDC+,
2. VIN- : Common GND
3. A-OUT: Output signal
(Voltage or Current).
