esr-1000(config)# interface gi1/0/1
esr-1000(config-if-gi)# switchport forbidden default-vlan
esr-1000(config-if-gi)# switchport general allowed vlan add 2,64,2000 tagged
Configuration changes will take effect when the configuration is applied:
esr-1000# commit
Configuration has been successfully committed
esr-1000# confirm
Objective 3: Configure gi1/0/1 ports for packet transmission and reception in VLAN 2, VLAN 64,
VLAN 2000 in trunk mode, configure gi1/0/2 port in access mode for VLAN 2 on ESR-100/ESR -200.

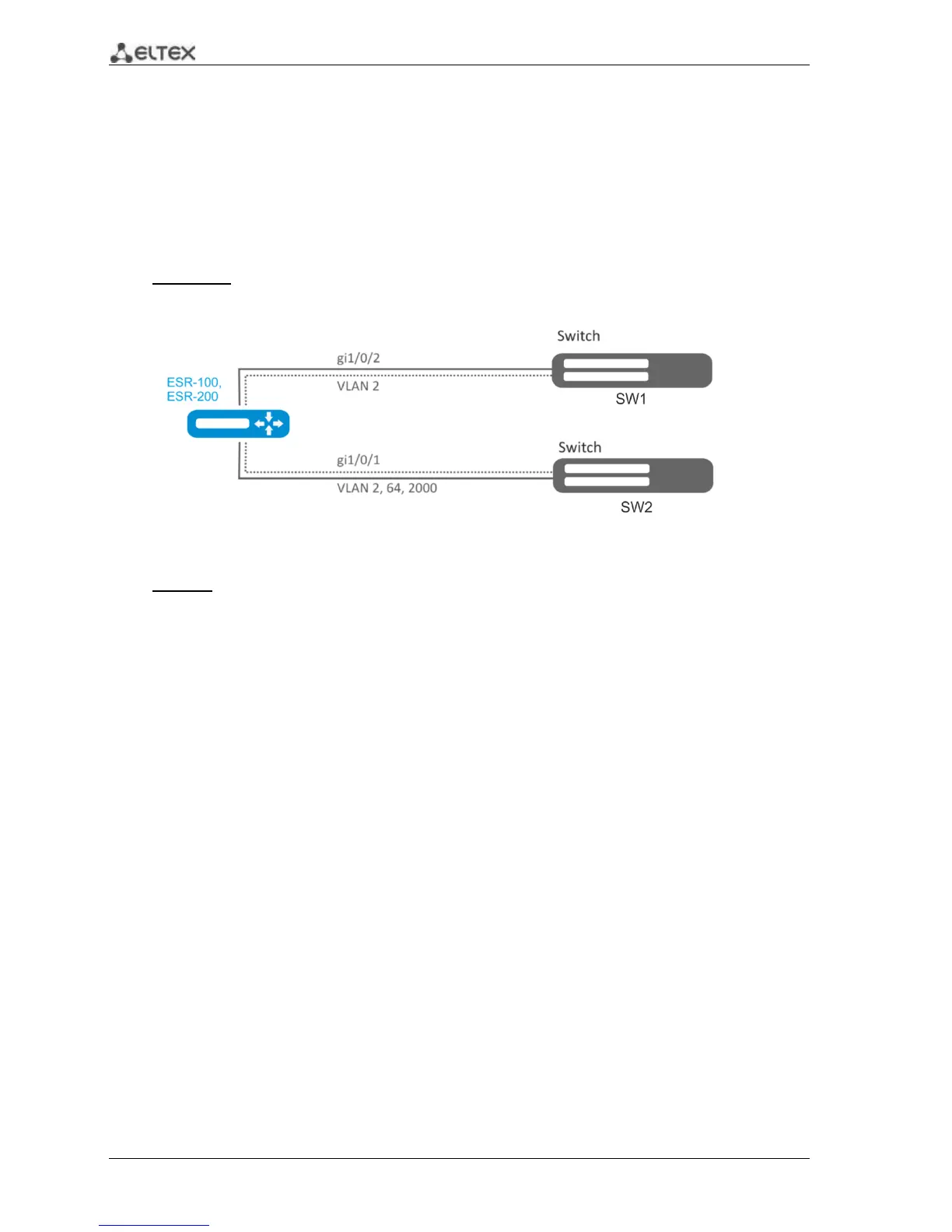

Fig. 7.3—Network structure
Solution:
Create VLAN 2, VLAN 64, VLAN 2000 on ESR-100/ ESR-200:
esr(config)# vlan 2,64,2000
Specify VLAN 2, VLAN 64, VLAN 2000 for gi1/0/1 port:
esr(config)# interface gi1/0/1
esr(config-if-gi)# switchport forbidden default-vlan
esr(config-if-gi)# switchport mode trunk
esr(config-if-gi)# switchport trunk allowed vlan add 2,64,2000
Specify VLAN2 to gi1/0/2 port:
esr(config)# interface gi1/0/1
esr(config-if-gi)# switchport access vlan 2
Configuration changes will take effect when the configuration is applied:
esr# commit
Configuration has been successfully committed
esr# confirm
