ESR Series Routers Operation Manual 47
Objective 2: Configure access for users in LAN 21.12.2.0/24 to public network using Source NAT
function without the firewall. Public network address range for SNAT 200.10.0.100-200.10.0.249.

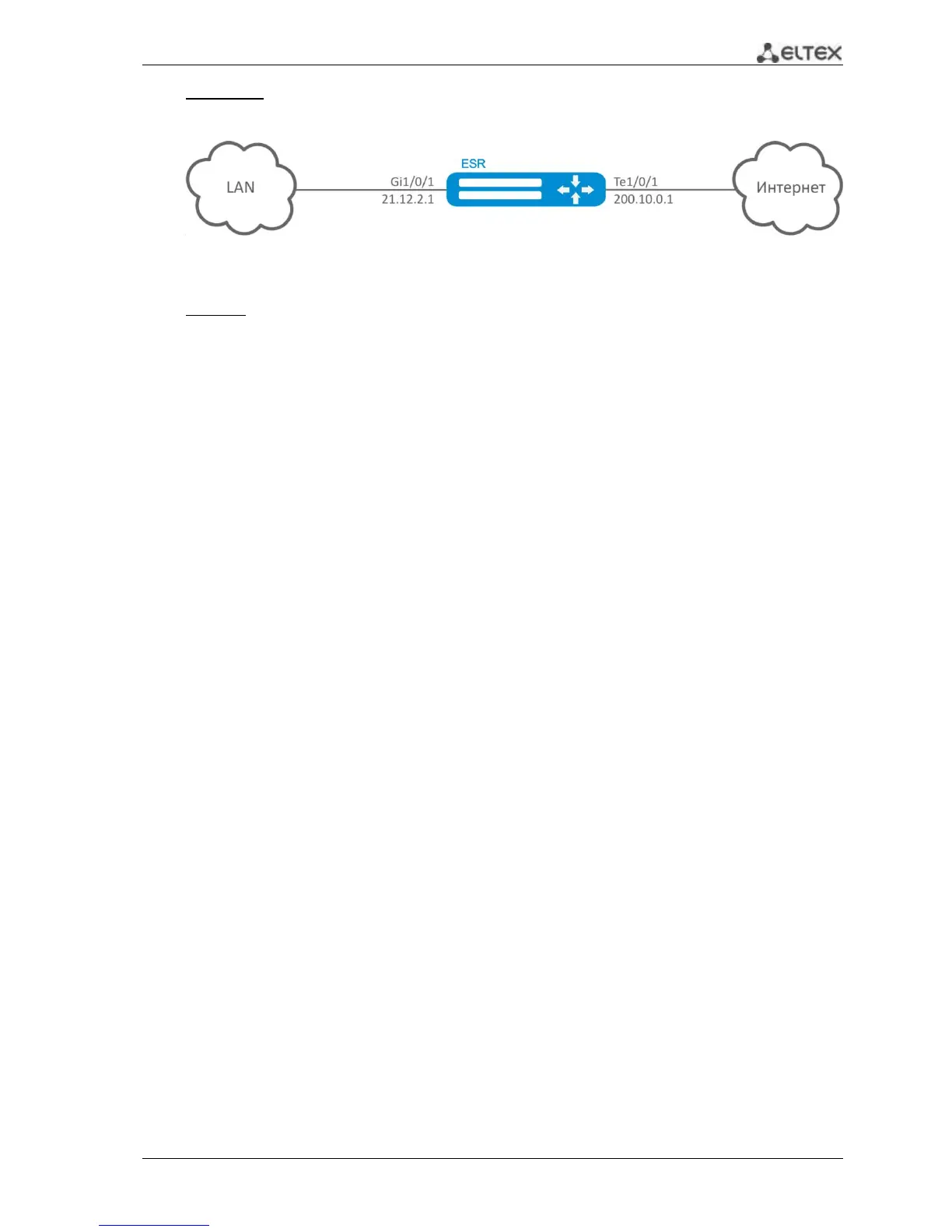

Fig. 7.6—Network structure
Solution:
Begin configuration with network interface configuration and disabling the firewall:
esr(config)# interface gigabitethernet 1/0/1
esr(config-if-gi)# ip address 21.12.2.1/24
esr(config-if-gi)# ip firewall disable
esr(config-if-gi)# exit
esr(config)# interface tengigabitethernet 1/0/1
esr(config-if-te)# ip address 200.10.0.99/24
esr(config-if-te)# ip firewall disable
esr(config-if-te)# exit
For SNAT function configuration, create 'LOCAL_NET' LAN address profile that includes addresses
which are allowed to access the public network and 'PUBLIC_POOL' public network address profile.
esr(config)# object-group network LOCAL_NET
esr(config-object-group-network)# ip address-range 21.12.2.2-21.12.2.254
esr(config-object-group-network)# exit
esr(config)# object-group network PUBLIC_POOL
esr(config-object-group-network)# ip address-range 200.10.0.100-200.10.0.249
esr(config-object-group-network)# exit
Configure SNAT service.
First step is to create public network address pool for use with SNAT:
esr(config)# nat source
esr(config-snat)# pool TRANSLATE_ADDRESS
esr(config-snat-pool)# ip address-range 200.10.0.100-200.10.0.249
esr(config-snat-pool)# exit
Second step is to create SNAT rule set. In the set attributes, specify that the rules are applying only
to packets transferred to public network through te1/0/1 port. Rules include a check which ensures that
data source address belongs to 'LOCAL_NET' pool:
esr(config-snat)# ruleset SNAT
esr(config-snat-ruleset)# to interface te1/0/1
esr(config-snat-ruleset)# rule 1
esr(config-snat-rule)# match source-address LOCAL_NET
esr(config-snat-rule)# match destination-address any
esr(config-snat-rule)# match protocol any
esr(config-snat-rule)# action source-nat pool TRANSLATE_ADDRESS
esr(config-snat-rule)# enable
esr(config-snat-rule)# exit
esr(config-snat-ruleset)# exit
