eltherm ELTC-14 Operation Manual

www.eltherm.com
eltherm GmbH
Headquarters
Ernst-Heinkel-Straße 6 -10
57299 Burbach. Germany
T.: +49 2736 4413-0
F.: +49 2736 4413-50
info@eltherm.com

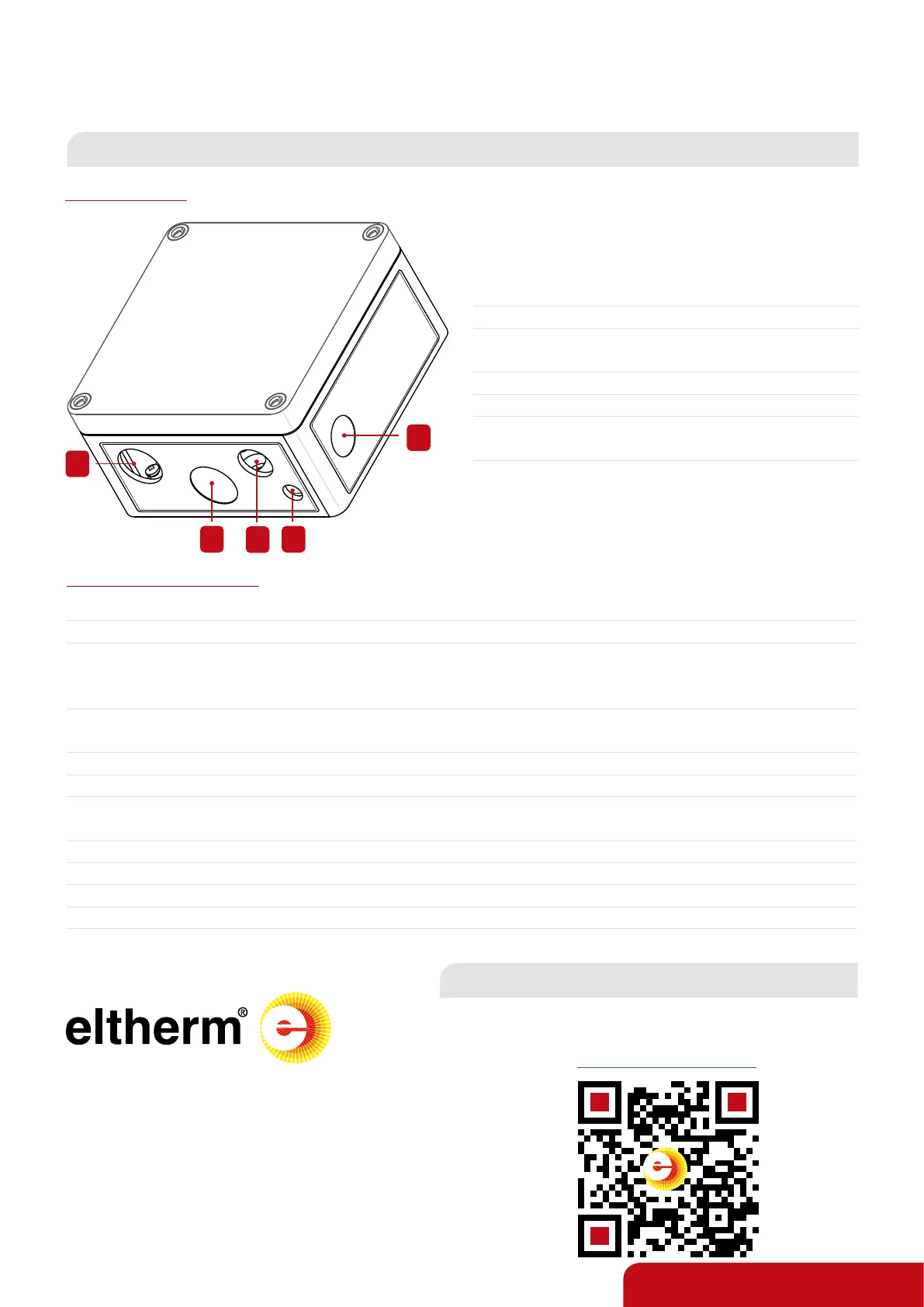

B
A
C
D
E
8643050620000 Operation manual ELTC-14 EN - Subject to technical changes
Pos. Size
A M25
B
M25
(pre-stamped, e.g. connection two ELSR)
C M20
D M12
E
M20
(pre-stamped, e.g. connection cable to the alarm contact)
Pos. with cable gland / with separate connection set Clamping range suitable for e.g.
A M20 and O-ring 6 - 12 mm Supply line
B M25, O-ring and locknut 6 - 13 mm
Connection cable for second heating cir-
cuit: ELW-x one-sided connection, EL-CLIC P,
terminal box
B M25, O-ring and locknut 2 x 6 mm
Connection cable for second heating cir-
cuit: ELK-x connection on both sides
B M25, from connection set ELVB-SR * ELSR-x
B M25, from connection set ELVB-ELP * ELP-x
C M20 and O-ring 6 - 13 mm
ELW-x one-sided connection, EL-CLIC P,
terminal box
C M20, from connection set ELVB-SR * ELSR-x
C M20, from connection set ELVB-ELP * ELP-x
D M12 and O-ring 3-6,5mm Temperature sensor
E M20, O-ring and locknut 6 - 12 mm Connection cable alarm contact
*dependent on the respective separate connection set
Holes / Stamping
Cable gland compatibilities
HOUSING CONSTRUCTION
You can find helpful downloads for this or other products
under the following link:
https://eltherm.com/downloads
DOWNLOADS
